25BMH (2003)
LOWER CASING. DRIVE 1

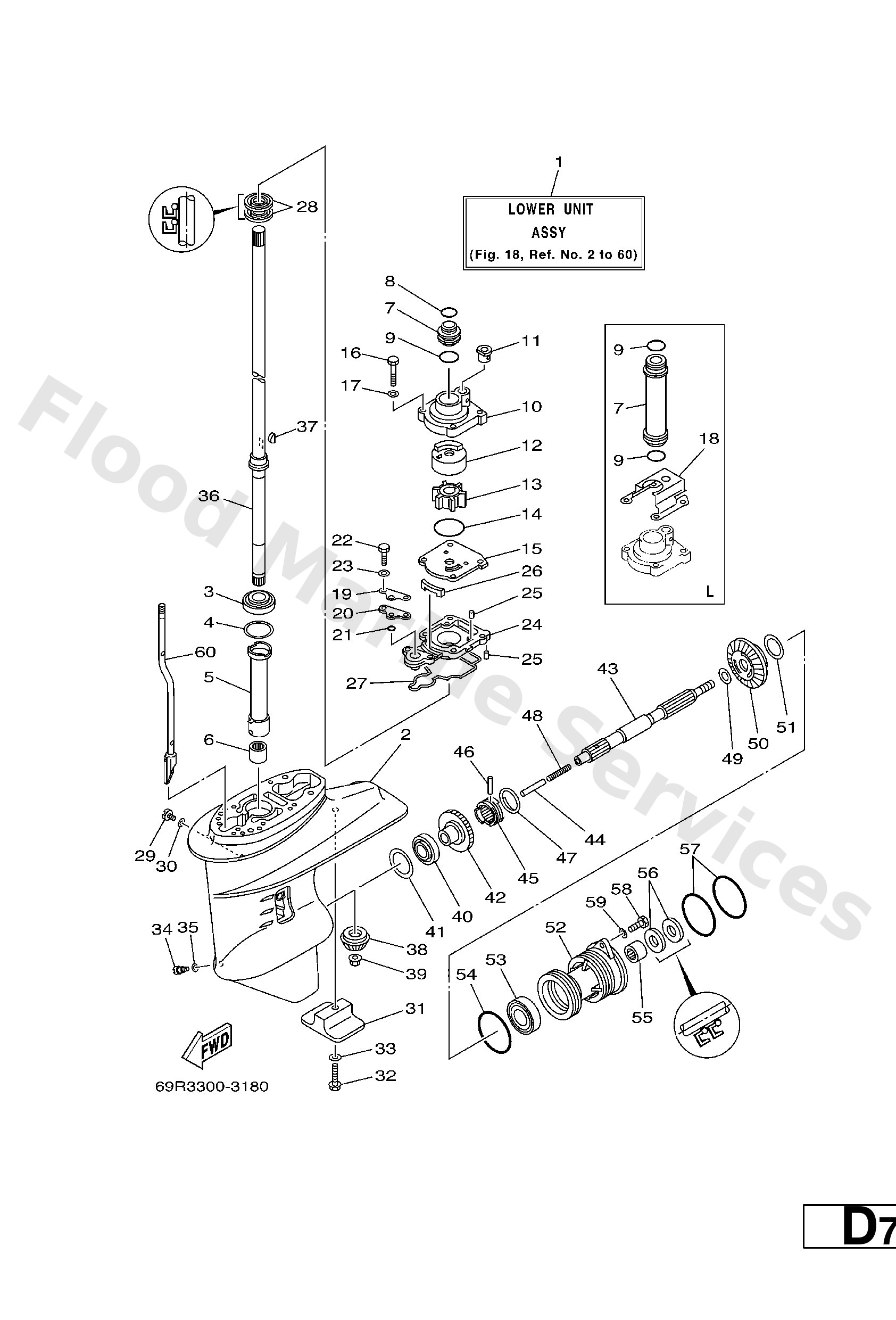

Diagram: LOWER CASING. DRIVE 1
Parts List
Reference
Description
Price
1
69P−45300−10−4D
L
Lower unit assembly
Loading…
↗
1
69P−45300−00−4D
S
Lower unit assembly
Loading…
↗
2
61N−45311−02−4D
Casing, lower
Loading…
↗
3
93332−000W5
Bearing(61n)
Loading…
↗
4
61N−45587−00−10
UR
Shim (t:1.0mm)
Loading…
↗
4
61N−45587−00−11
UR
Shim (t:1.1mm)
Loading…
↗
4
61N−45587−00−12
UR
Shim (t:1.2mm)
Loading…
↗
4
61N−45587−00−13
UR
Shim (t:1.3mm)
Loading…
↗
4
61N−45587−00−14
UR
Shim (t:1.4mm)
Loading…
↗
4
61N−45587−00−15
UR
Shim (t:1.5mm)
Loading…
↗
4
61N−45587−00−16
UR
Shim (t:1.6mm)
Loading…
↗
4
61N−45587−00−07
UR
Shim (t:0.70mm)
Loading…
↗
5
61N−45536−00
Sleeve, drive shaft
Loading…
↗
6
93315−220V7
Bearing, cylindrical(6j8)
Loading…
↗
7
61N−44362−00
S
Tube, water
Loading…
↗
7
61N−44362−10
L
Tube, water
Loading…
↗
8
93210−22164
S
O-ring
Loading…
↗
9
93210−26130
S
O-ring
Loading…
↗
10
69P−44311−00
Housing, water pump
Loading…
↗
11
6L2−44367−00
Damper, water seal 3
Loading…
↗
12
69P−44322−00
Insert, cartridge
Loading…
↗
13
6H4−44352−02
Impeller
Loading…
↗
14
93210−45161
O-ring
Loading…
↗
15
61N−44323−00
Outer plate, cartridge
Loading…
↗
16
97095−06040
Bolt (682)
Loading…
↗
17
92995−06600
Washer, plain (646)
Loading…
↗
18
65W−44328−11
L
Plate
Loading…
↗
19
61N−44176−00
Bracket
Loading…
↗
20
61N−45321−00
Plate
Loading…
↗
21
93210−06ME6
O-ring
Loading…
↗
22
97095−06025
Bolt
Loading…
↗
24
61N−45331−00−5B
Housing, bearing
Loading…
↗
25
93604−10M03
Pin, dowel (688)
Loading…
↗
26
61N−45127−00
Seal
Loading…
↗
27
61N−45315−00
Packing, lower casing
Loading…
↗
28
93101−22067
Oil seal (22x36x6-663)
Loading…
↗
29
90340−08002
Plug, straight screw
Loading…
↗
30
90430−08020
Gasket
Loading…
↗
31
61N−45251−01
Anode
Loading…
↗
32
95895−06035
Bolt, flange(4nx)
Loading…
↗
33
92990−06300
Washer, tooth
Loading…
↗
34
688−45341−10
Plug, drain
Loading…
↗
36
61N−45510−00
S
Drive shaft assembly
Loading…
↗
36
61N−45510−10
L
Drive shaft assembly
Loading…
↗
37
90280−03M03
Key, woodruff (697)
Loading…
↗
38
61N−45551−00
Pinion
Loading…
↗
39
90179−10M14
Nut(6j8)
Loading…
↗
40
93332−00005
Brg,cyl-cal roller 0.19g nt
Loading…
↗
41
6L2−45567−00−10
UR
Shim (t:1.0mm)
Loading…
↗
41
6L2−45567−00−12
UR
Shim (t:1.2mm)
Loading…
↗
41
6L2−45567−00−11
UR
Shim (t:1.1mm)
Loading…
↗
41
6L2−45567−00−13
UR
Shim (t:1.3mm)
Loading…
↗
41
6L2−45567−00−14
UR
Shim (t:1.4mm)
Loading…
↗
42
61N−45560−00
Gear
Loading…
↗
43
6L2−45611−00
Shaft, propeller
Loading…
↗
44
648−45635−00
Plunger,shift
Loading…
↗
45
664−45631−02
Clutch, dog
Loading…
↗
46
90250−05010
Pin straight 648456320000
Loading…
↗
47
648−45633−00
Ring, cross pin
Loading…
↗
48
90501−10065
Spring compression648456360000
Loading…
↗
49
90201−20417
Washer, plate(663)
Loading…
↗
50
61N−45571−00
Gear
Loading…
↗
51
6L2−45577−00−10
UR
Shim (t:1.0mm)
Loading…
↗
51
6L2−45577−00−11
UR
Shim (t:1.1mm)
Loading…
↗
51
6L2−45577−00−12
UR
Shim (t:1.2mm)
Loading…
↗
51
6L2−45577−00−13
UR
Shim (t:1.3mm)
Loading…
↗
52
61N−45361−01−4D
Cap, lower casing
Loading…
↗
53
93306−00612
Bearing(2hr)
Loading…
↗
54
93210−64ME7
O-ring
Loading…
↗
55
93315−22004
Brg,cyl-cal roller 21g nt
Loading…
↗
56
93101−20M07
Oil seal
Loading…
↗
57
93210−65M50
O-ring
Loading…
↗
58
97075−06020
Bolt(7u8)
Loading…
↗
60
61N−44150−00
S
Shift cam assembly
Loading…
↗
60
61N−44150−10
L
Shift cam assembly
Loading…
↗
