55BET (2002)
LOWER CASING. DRIVE 1

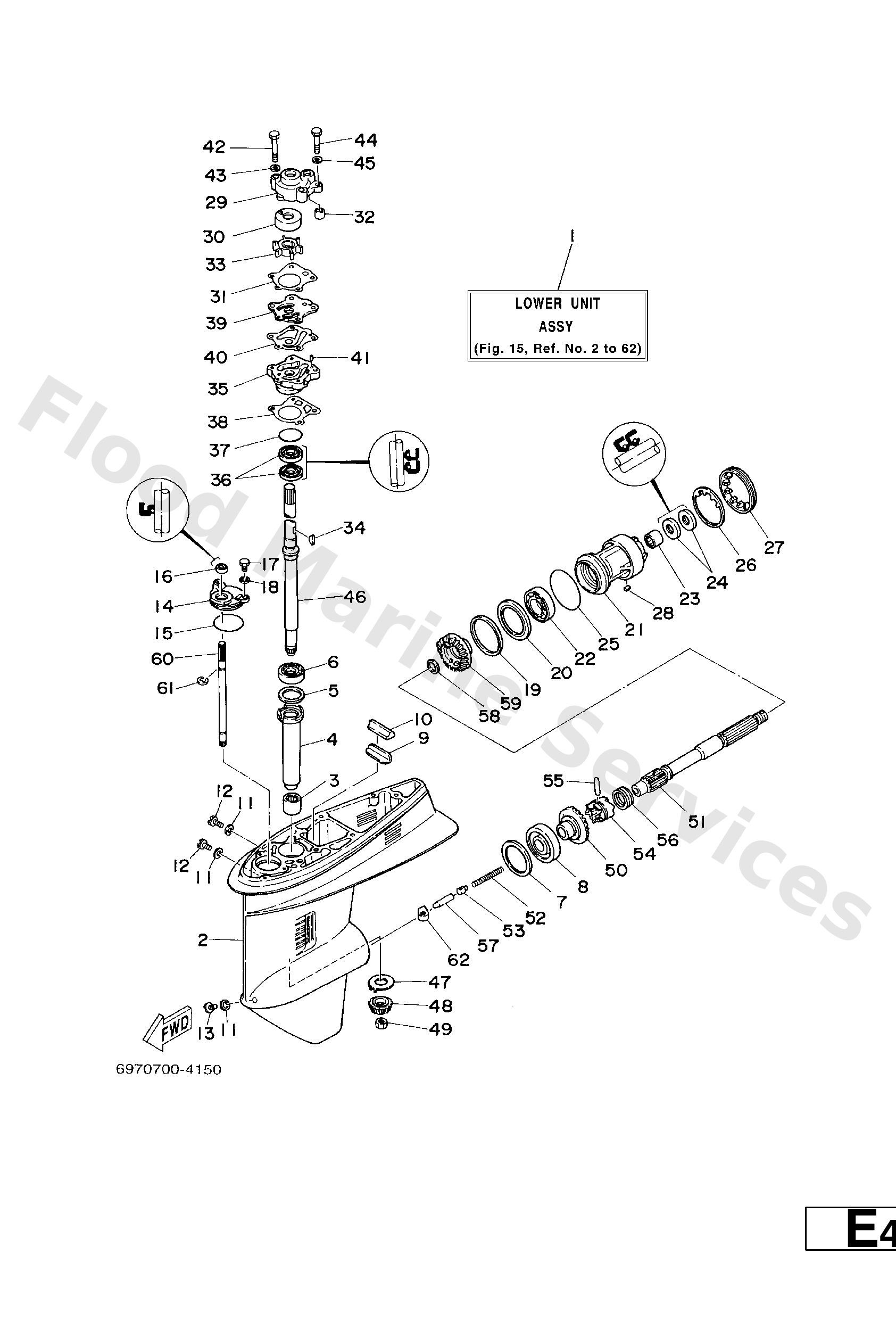

Diagram: LOWER CASING. DRIVE 1
Parts List
Reference
Description
Price
1
69745300124D
Lower unit assembly
Loading…
↗
2
69745311024D
Casing, lower
Loading…
↗
3
93315--32224
Brg,cyl-cal roller 42.2g nk
Loading…
↗
4
6634553600
Sleeve, drive shaft
Loading…
↗
5
663--45587--01--12
UR
Shim (t:0.12mm)
Loading…
↗
5
663--45587--01--15
UR
Shim (t:0.15mm)
Loading…
↗
5
663--45587--01--18
UR
Shim (t:0.18mm)
Loading…
↗
5
663--45587--01--30
UR
Shim (t:0,30mm)
Loading…
↗
5
663--45587--01--40
UR
Shim (t:0.40mm)
Loading…
↗
5
663--45587--01--50
UR
Shim (t:0.50mm)
Loading…
↗
5
663--45587--01--10
UR
Shim (t:0.10mm)
Loading…
↗
6
93332--00001
Brg, tapered roller (409)
Loading…
↗
7
663--45567--01--12
UR
Shim (t:0.12mm)
Loading…
↗
7
663--45567--01--50
UR
Shim (t:0.50mm)
Loading…
↗
7
663--45567--01--40
UR
Shim (t:0.40mm)
Loading…
↗
7
663--45567--01--30
UR
Shim (t:0.30mm)
Loading…
↗
7
663--45567--01--18
UR
Shim (t:0.18mm)
Loading…
↗
7
663--45567--01--15
UR
Shim (t:0.15mm)
Loading…
↗
7
663--45567--01--10
UR
Shim (t:0.10mm)
Loading…
↗
8
93332--00003
Brg,cyl-cal roller 318g ky
Loading…
↗
9
663--45376--00--94
Guide, seal damper
Loading…
↗
10
6634537500
Rubber, seal 2
Loading…
↗
11
90430--08020
Gasket
Loading…
↗
12
90340--08002
Plug, straight screw
Loading…
↗
13
688--45341--10
Plug, drain
Loading…
↗
14
6634532100
Plate
Loading…
↗
15
93210--49046
O-ring (620)
Loading…
↗
16
93106--09014
Oil seal
Loading…
↗
17
97095--06016
Bolt, hexagon deep recess
Loading…
↗
18
92995--06600
Washer, plain (646)
Loading…
↗
19
663455770112
UR
Shim (t:0.12mm)
Loading…
↗
19
663455770150
UR
Shim (t:0.50mm)
Loading…
↗
19
663455770140
UR
Shim (t:0.40mm)
Loading…
↗
19
663455770130
UR
Shim (t:0.30mm)
Loading…
↗
19
663455770118
UR
Shim (t:0.18mm)
Loading…
↗
19
663455770115
UR
Shim (t:0.15mm)
Loading…
↗
19
663455770110
UR
Shim (t:0.10mm)
Loading…
↗
20
6634557600
Washer, thrust 2
Loading…
↗
21
663453310094
Housing, bearing
Loading…
↗
22
9330600702
Brg,r-b 6007 62mm 150g ky
Loading…
↗
23
93317--22204
Brg,cyl-cal roller 25.5g nt
Loading…
↗
24
93101--22067
Oil seal (22x36x6-663)
Loading…
↗
25
9321066M98
O-ring(6h4)
Loading…
↗
26
9021448M03
Washer, claw(697)
Loading…
↗
27
6974538400
Nut
Loading…
↗
28
90282--04010
Key, strait(663)
Loading…
↗
29
6634431102
Housing, water pump
Loading…
↗
30
663--44322--00
Insert, cartridge
Loading…
↗
31
663--44315--A0
Gasket,water pump 1
Loading…
↗
32
663--44366--00
Damper, water seal 2
Loading…
↗
33
6974435200
Impellar
Loading…
↗
34
90280--03M03
Key, woodruff (697)
Loading…
↗
35
663443410094
Housing, water pump
Loading…
↗
36
93101--23070
Oil seal (663)
Loading…
↗
37
93210--41042
O-ring (132)
Loading…
↗
38
663--44316--A0
Gasket,water pump 2
Loading…
↗
39
663--44323--00
Outer plate, cartridge
Loading…
↗
40
663--44324--A0
Gasket,cartridge outer plate
Loading…
↗
41
93604--08062
Pin,dowel (626)
Loading…
↗
42
9709508055
Bolt, hexagon
Loading…
↗
43
92995--08600
Washer, plain (663)
Loading…
↗
44
97095--08045
Bolt, hexagon
Loading…
↗
46
6634551011
Drive shaft assembly
Loading…
↗
47
6634555200
Bearing, plain
Loading…
↗
48
6974555100
Pinion
Loading…
↗
49
90170--12138
Nut hexagon(663)
Loading…
↗
50
6974556000
Gear 1 assembly
Loading…
↗
51
6974561100
Shaft, propeller
Loading…
↗
52
9050116233
Spring compression(663)
Loading…
↗
53
663--45634--00
Slide, shift
Loading…
↗
54
6634563101
Clutch, dog
Loading…
↗
55
90250--06023
Pin, strait (663)
Loading…
↗
56
663--45633--00
Ring, cross pin
Loading…
↗
57
6884563500
Plunger, shift
Loading…
↗
58
90201--22429
Washer, plate(663)
Loading…
↗
59
6974557100
Gear 2
Loading…
↗
60
6634414401
Rod, shift 2
Loading…
↗
61
99001--08600
Circlip(2r6)
Loading…
↗
62
663--44151--00
Cam, shift
Loading…
↗
