6DMH (2003)
LOWER CASING. DRIVE 1

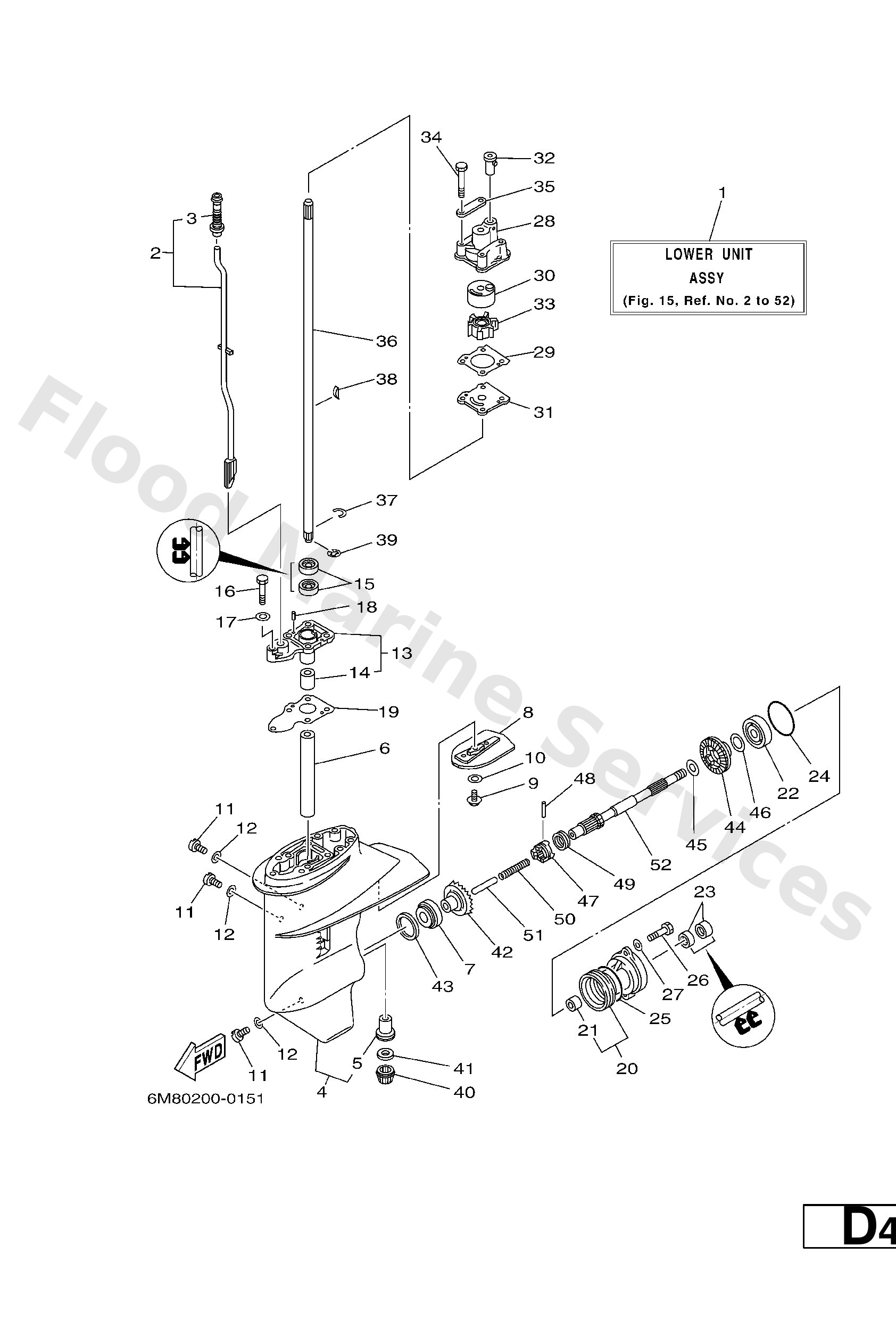

Diagram: LOWER CASING. DRIVE 1
Parts List
Reference
Description
Price
2
6N0−G4150−10
L
Shift cam assembly
Loading…
↗
2
6N0−G4150−00
S
Shift cam assembly
Loading…
↗
2
6N0−G4150−20
X
Shift Cam assembly
Loading…
↗
3
6G1−44147−00
Boot, shift rod
Loading…
↗
5
6G1−45317−09
Bushing, drive shaft 2
Loading…
↗
6
90387−14M49
Collar (6g1)
Loading…
↗
7
93332−000U4
Brg,tapered roller 42mm (689)
Loading…
↗
8
6N0−G5251−00
Anode
Loading…
↗
9
97095−06016
Bolt, hexagon deep recess
Loading…
↗
10
92990−06300
Washer, tooth
Loading…
↗
11
90340−08002
Plug, straight screw
Loading…
↗
12
90430−08020
Gasket
Loading…
↗
14
6G1−45316−09
Bushing, drive shaft 1
Loading…
↗
15
93101−11M23
Oil seal (6g1)
Loading…
↗
16
97095−06030
Bolt(jf7)
Loading…
↗
17
92995−06600
Washer, plain (646)
Loading…
↗
18
93604−08062
Pin,dowel (626)
Loading…
↗
19
6G1−45315−A0
Packing, lower casing
Loading…
↗
21
6G1−45362−09
Bushing, lower casing cap
Loading…
↗
22
93306−004U0
Bearing (7k2)
Loading…
↗
23
93101−15074
Oil seal (655)
Loading…
↗
24
93210−49046
O-ring (620)
Loading…
↗
25
93210−53M08
O-ring(50m)
Loading…
↗
28
6N0−G4311−00
Housing, water pump
Loading…
↗
29
6G1−44315−A0
Gasket,water pump
Loading…
↗
30
6G1−44322−00
Insert, cartridge
Loading…
↗
31
6G1−44323−00
Outer plate, cartridge
Loading…
↗
32
647−44366−00
Damper, water seal 2
Loading…
↗
33
6G1−44352−00
Impeller
Loading…
↗
34
97095−06045
Bolt, hexagon
Loading…
↗
35
6G1−44328−00
Plate
Loading…
↗
36
6N0−G5511−00
S
Shaft, drive
Loading…
↗
36
6N0−G5511−10
L
Shaft, drive
Loading…
↗
36
6N0−G5511−20
X
Shaft, Drive
Loading…
↗
37
90467−09M05
Clip (6g1)
Loading…
↗
38
90280−03024
Key, woodruff(662)
Loading…
↗
39
99001−06600
Circlip(53l)
Loading…
↗
40
6N0−G5551−00
Pinion
Loading…
↗
41
6G1−45533−00−19
UR
Shim (t:1.9mm)
Loading…
↗
41
6G1−45533−00−20
UR
Shim (t:2.0mm)
Loading…
↗
41
6G1−45533−00−21
UR
Shim (t:2.1mm)
Loading…
↗
41
6G1−45533−00−22
UR
Shim (t:2.2mm)
Loading…
↗
42
6N0−G5560−00
Gear 1 (27t)
Loading…
↗
43
664−45587−01−12
UR
Shim (t:0.12mm)
Loading…
↗
43
664−45587−01−15
UR
Shim (t:0.15mm)
Loading…
↗
43
664−45587−01−10
UR
Shim (t:0.10mm)
Loading…
↗
43
664−45587−01−18
UR
Shim (t:0.18mm)
Loading…
↗
43
664−45587−01−30
UR
Shim (t:0.30mm)
Loading…
↗
43
664−45587−01−40
UR
Shim (t:0.40mm)
Loading…
↗
43
664−45587−01−50
UR
Shim (t:0.50mm)
Loading…
↗
44
6N0−G5571−00
Gear 2
Loading…
↗
45
90201−15M89
Washer, plate (6g1)
Loading…
↗
46
647−45567−00
UN
Shim, gear adjust
Loading…
↗
47
6G1−45631−00
Clutch, dog
Loading…
↗
48
6G1−45632−00
Cross, pin
Loading…
↗
49
654−45633−00
Ring, cross pin
Loading…
↗
50
90501−12M38
Spring, compression(6g1)
Loading…
↗
51
6G1−45635−00
Plunger, shift
Loading…
↗
52
6G1−45611−01
Shaft, propellar
Loading…
↗
