75CETO (2002)
LOWER CASING. DRIVE 1

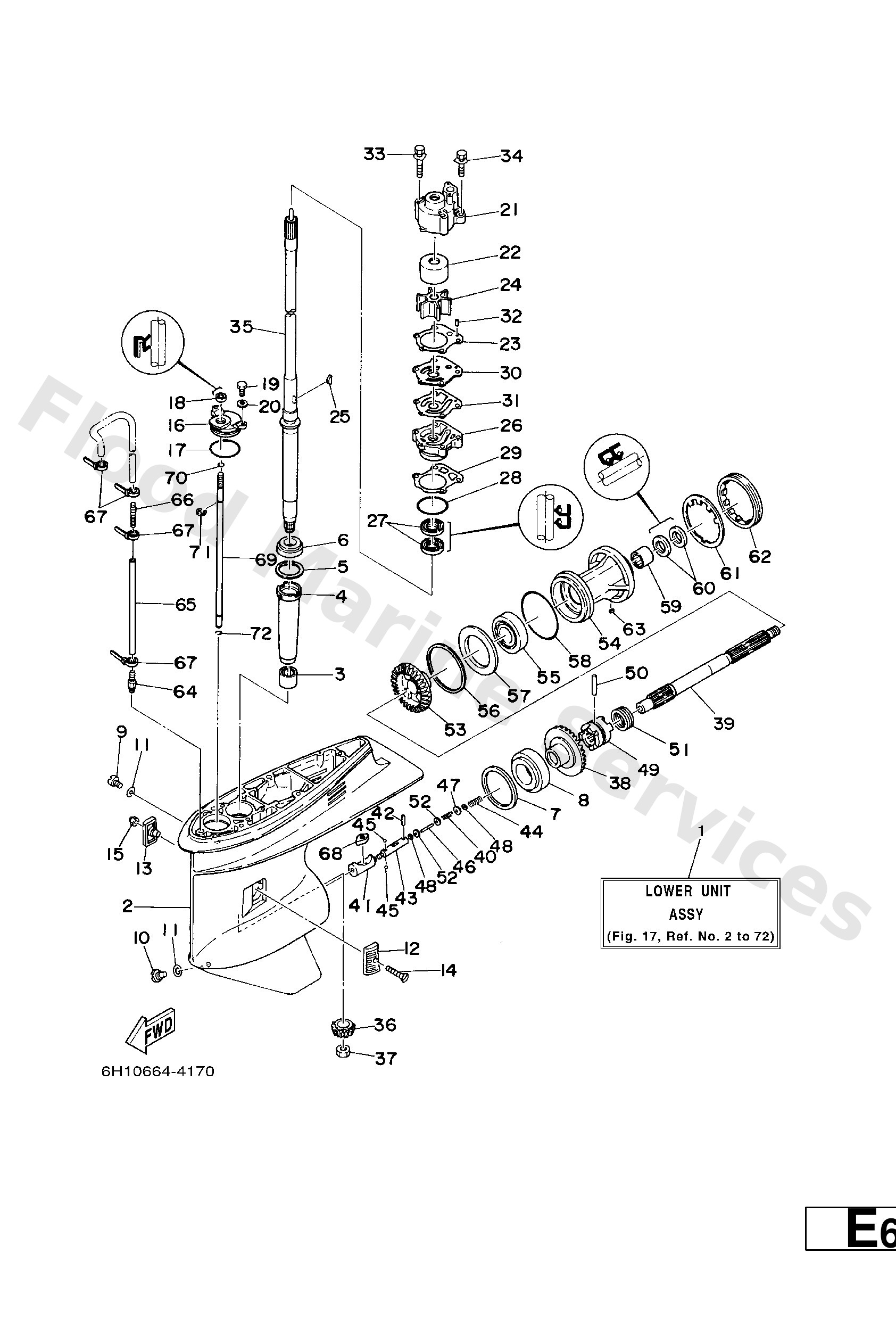

Diagram: LOWER CASING. DRIVE 1
Parts List
Reference
Description
Price
1
6H1−45300−15−4D
L
Lower unit assembly
Loading…
↗
2
6H1−45301−03−4D
Lower casing set
Loading…
↗
3
93315−325V1
Bearing, needle (688)
Loading…
↗
4
688−45536−01
Sleeve, drive shaft
Loading…
↗
5
688−45587−01−12
UR
Shim (t:0.12mm)
Loading…
↗
5
688−45587−01−15
UR
Shim (t:0.15mm)
Loading…
↗
5
688−45587−01−18
UR
Shim (t:0.18mm)
Loading…
↗
5
688−45587−01−30
UR
Shim (t:0.30mm)
Loading…
↗
5
688−45587−01−40
UR
Shim (t:0.40mm)
Loading…
↗
5
688−45587−01−50
UR
Shim (t:0.50mm)
Loading…
↗
5
688−45587−01−10
UR
Shim (t:0.10mm)
Loading…
↗
6
93332−000U3
Brg,tapered roller 50mm (688)
Loading…
↗
7
688−45567−01−15
UR
Shim (t:0.15mm)
Loading…
↗
7
688−45567−01−50
UR
Shim (t:0.50mm)
Loading…
↗
7
688−45567−01−40
UR
Shim (t:0.40mm)
Loading…
↗
7
688−45567−01−30
UR
Shim (t:0.30mm)
Loading…
↗
7
688−45567−01−18
UR
Shim (t:0.18mm)
Loading…
↗
7
688−45567−01−12
UR
Shim (t:0.12mm)
Loading…
↗
7
688−45567−01−10
UR
Shim (t:0.10mm)
Loading…
↗
8
93332−000W7
Bearing(6b0)
Loading…
↗
9
90340−08002
Plug, straight screw
Loading…
↗
10
688−45341−10
Plug, drain
Loading…
↗
11
90430−08020
Gasket
Loading…
↗
12
6H1−45214−00
Cover, water inlet
Loading…
↗
13
6H1−45215−00
Cover, water inlet
Loading…
↗
14
90151−05M00
Screw, countersunk(692)
Loading…
↗
15
90185−05002
Nut nylon (sus)(ex4)
Loading…
↗
16
688−45321−00
Plate
Loading…
↗
17
93210−49046
O-ring (620)
Loading…
↗
18
93106−09014
Oil seal
Loading…
↗
19
97095−06016
Bolt, hexagon deep recess
Loading…
↗
20
92995−06600
Washer, plain (646)
Loading…
↗
21
688−44311−01
Housing, water pump 1
Loading…
↗
22
688−44322−00
Insert, cartridge
Loading…
↗
23
688−44315−A0
Gasket,water pump 1
Loading…
↗
24
688−44352−03
Impeller
Loading…
↗
25
90280−04M04
Key, woodruff (688)
Loading…
↗
26
688−44341−01−94
Housing, water pump set
Loading…
↗
27
93101−25M03
Oil seal
Loading…
↗
28
93210−46044
O-ring
Loading…
↗
29
688−44316−A0
Gasket,water pump 2
Loading…
↗
30
688−44323−00
Outer plate, cartridge
Loading…
↗
31
688−44324−A0
Gasket,cartridge 0uter plate
Loading…
↗
32
93604−10M03
Pin, dowel (688)
Loading…
↗
33
90119−08M16
Bolt, with washer(6h0)
Loading…
↗
34
90119−08M13
Bolt, with washer(6h0)
Loading…
↗
35
6H1−45501−11
L
Drive shaft comp.
Loading…
↗
36
688−45551−01
Pinion
Loading…
↗
37
90170−16M01
Nut, hexagon (688)
Loading…
↗
38
688−45560−00
Gear 1 (26t)
Loading…
↗
39
6H1−45611−01
Shaft, propeller
Loading…
↗
40
90501−12M48
Spring (6h1)
Loading…
↗
41
6H1−45641−01
Shifter
Loading…
↗
42
93603−12M11
Pin, dowel(6h1)
Loading…
↗
43
6H1−45634−02
Slide, shift
Loading…
↗
44
90501−16M65
Spring, compression(6h1)
Loading…
↗
45
93503−16003
Ball
Loading…
↗
46
6H1−45668−00
Shaft, free 1
Loading…
↗
47
90201−03313
Washer, plate 8077743700
Loading…
↗
48
90183−02M03
Nut, spring (6h1)
Loading…
↗
49
6H1−45631−01
Clutch, dog
Loading…
↗
50
90250−07M02
Pin, straight (688)
Loading…
↗
51
688−45633−00
Ping, cross pin
Loading…
↗
52
6H1−45635−00
Plunger, shift
Loading…
↗
53
6H1−45571−00
Gear 2
Loading…
↗
54
688−45331−00−94
Housing, bearing
Loading…
↗
55
93306−207U0
Brg,r-b 6207 72mm 280g (688)
Loading…
↗
56
688−45577−01−50
UR
Shim (t:0.50mm)
Loading…
↗
56
688−45577−01−12
UR
Shim (t:0.12mm)
Loading…
↗
56
688−45577−01−40
UR
Shim (t:0.40mm)
Loading…
↗
56
688−45577−01−30
UR
Shim (t:0.30mm)
Loading…
↗
56
688−45577−01−15
UR
Shim (t:0.15mm)
Loading…
↗
56
688−45577−01−10
UR
Shim (t:0.10mm)
Loading…
↗
56
688−45577−01−18
UR
Shim (t:0.18mm)
Loading…
↗
57
688−45576−00
Washer, thrust 2
Loading…
↗
58
93210−85M97
O-ring(6h1)
Loading…
↗
59
93317−325U0
Brg,needle
Loading…
↗
61
688−45383−02
Washer, claw
Loading…
↗
62
688−45384−00
Nut
Loading…
↗
63
90282−04010
Key, strait(663)
Loading…
↗
64
6E5−45378−00
Nipple, hose
Loading…
↗
65
90445−07ME9
L
Hose (l250)
Loading…
↗
66
6E5−83558−10
End, nipple
Loading…
↗
67
90465−11M10
Clamp
Loading…
↗
68
6H1−44151−00
Cam, shift
Loading…
↗
69
6H1−44144−00
Rod, shift 2
Loading…
↗
70
93210−07003
O-ring (11m)
Loading…
↗
71
99001−08600
Circlip(2r6)
Loading…
↗
72
93450−07M00
Circlip (6e5)
Loading…
↗
