E40GMH (2003)
LOWER CASING. DRIVE 1

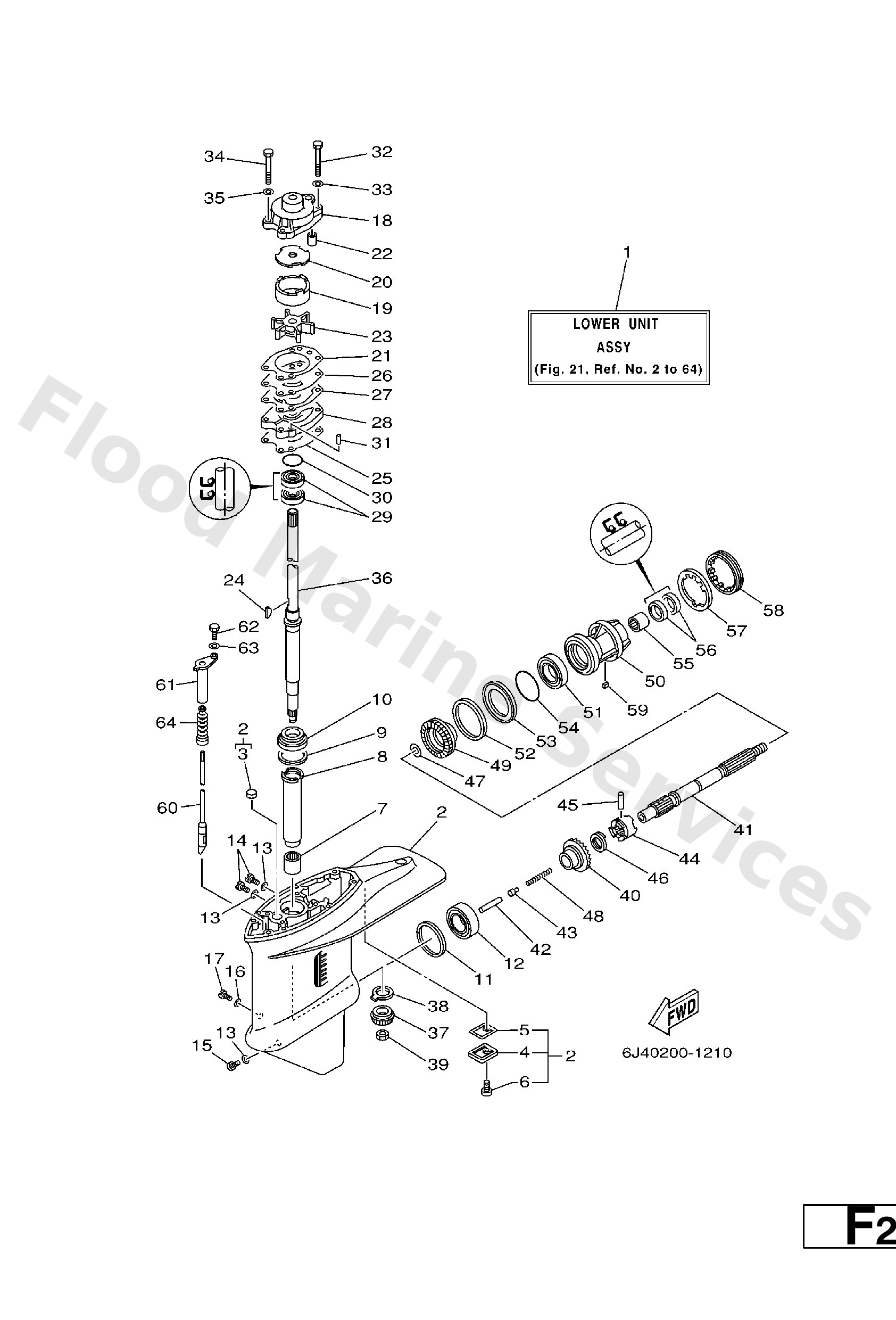

Diagram: LOWER CASING. DRIVE 1
Parts List
Reference
Description
Price
3
90338−22007
Plug(3aj)
Loading…
↗
4
679−45321−02
Plate
Loading…
↗
5
679−45315−A1
Packing, lower casing
Loading…
↗
6
97880−06016
Screw pan head
Loading…
↗
7
93315−32224
Brg,cyl-cal roller 42.2g nk
Loading…
↗
8
679−45536−00
Sleeve, drive shaft
Loading…
↗
10
93332−00001
Brg, tapered roller (409)
Loading…
↗
12
93332−00003
Brg,cyl-cal roller 318g ky
Loading…
↗
13
90430−08020
Gasket
Loading…
↗
14
90340−08002
Plug, straight screw
Loading…
↗
15
688−45341−10
Plug, drain
Loading…
↗
16
90430−06M03
Gasket (6f5)
Loading…
↗
17
90149−06M00
Screw (676)
Loading…
↗
18
676−44311−00
Housing, water pump 1
Loading…
↗
19
676−44322−40
FOR CHROMATE
Insert, cartridge
Loading…
↗
20
676−44321−40
FOR CHROMATE
Inner plate, cartridge
Loading…
↗
21
676−44315−A1
Gasket, water pump
Loading…
↗
22
663−44366−00
Damper, water seal 2
Loading…
↗
23
6F5−44352−00
Impeller
Loading…
↗
24
90280−04M00
Key, woodruff (676)
Loading…
↗
25
679−44316−A1
21 −
Loading…
↗
26
676−44323−40
FOR CHROMATE
Outer plate, cartridge
Loading…
↗
27
676−44324−A1
Gasket, cartridge
Loading…
↗
28
679−44341−00−94
Housing, water pump
Loading…
↗
29
93101−22M00
Oil seal (22x36x6-663)
Loading…
↗
30
93210−41042
O-ring (132)
Loading…
↗
31
93604−08062
Pin,dowel (626)
Loading…
↗
32
97095−08055
Bolt, hexagon
Loading…
↗
33
92995−08600
Washer, plain (663)
Loading…
↗
34
97095−08045
Bolt, hexagon
Loading…
↗
36
679−45501−00
S
Drive shaft comp
Loading…
↗
36
679−45501−10
L
Drive shaft comp
Loading…
↗
36
6A0−45501−20
Y
Drive shaft comp.
Loading…
↗
37
6H9−45551−00
Pinion
Loading…
↗
38
663−45552−00
Bearing, plain
Loading…
↗
39
90170−12138
Nut hexagon(663)
Loading…
↗
40
679−45560−00
Gear 1 assembly
Loading…
↗
41
679−45611−01
Shaft, propeller
Loading…
↗
42
676−45635−00
Plunger, shift
Loading…
↗
43
663−45634−00
Slide, shift
Loading…
↗
44
663−45631−01
Clutch, dog
Loading…
↗
45
90250−06023
Pin, strait (663)
Loading…
↗
46
663−45633−00
Ring, cross pin
Loading…
↗
47
90201−22429
Washer, plate(663)
Loading…
↗
48
90501−16M01
Spring compression
Loading…
↗
49
679−45571−00
Gear 2
Loading…
↗
50
679−45331−00−94
Housing, bearing
Loading…
↗
51
93306−00702
Brg,r-b 6007 62mm 150g ky
Loading…
↗
52
663−45577−01−30
UR
Shim (t:0.30mm)
Loading…
↗
52
663−45577−01−50
UR
Shim (t:0.50mm)
Loading…
↗
52
663−45577−01−40
UR
Shim (t:0.40mm)
Loading…
↗
52
663−45577−01−15
UR
Shim (t:0.15mm)
Loading…
↗
52
663−45577−01−12
UR
Shim (t:0.12mm)
Loading…
↗
52
663−45577−01−10
UR
Shim (t:0.10mm)
Loading…
↗
52
663−45577−01−18
UR
Shim (t:0.18mm)
Loading…
↗
53
663−45576−00
Washer, thrust 2
Loading…
↗
54
93210−66M98
O-ring(6h4)
Loading…
↗
55
93317−22204
Brg,cyl-cal roller 25.5g nt
Loading…
↗
57
90214−48M03
Washer, claw(697)
Loading…
↗
58
697−45384−00
Nut
Loading…
↗
59
90282−04010
Key, strait(663)
Loading…
↗
60
679−44150−00
S
Shift cam assembly
Loading…
↗
60
679−44150−10
L
Shift cam assembly
Loading…
↗
60
6A0−44150−20
Y
Shift cam ass'y
Loading…
↗
61
679−44152−00
Bushing, shift cam
Loading…
↗
62
97095−06018
Bolt (fj0)
Loading…
↗
63
92995−06600
Washer, plain (646)
Loading…
↗
64
650−44147−00
Boot, shift rod
Loading…
↗
