F115AET (2003)
LOWER CASING. DRIVE 1

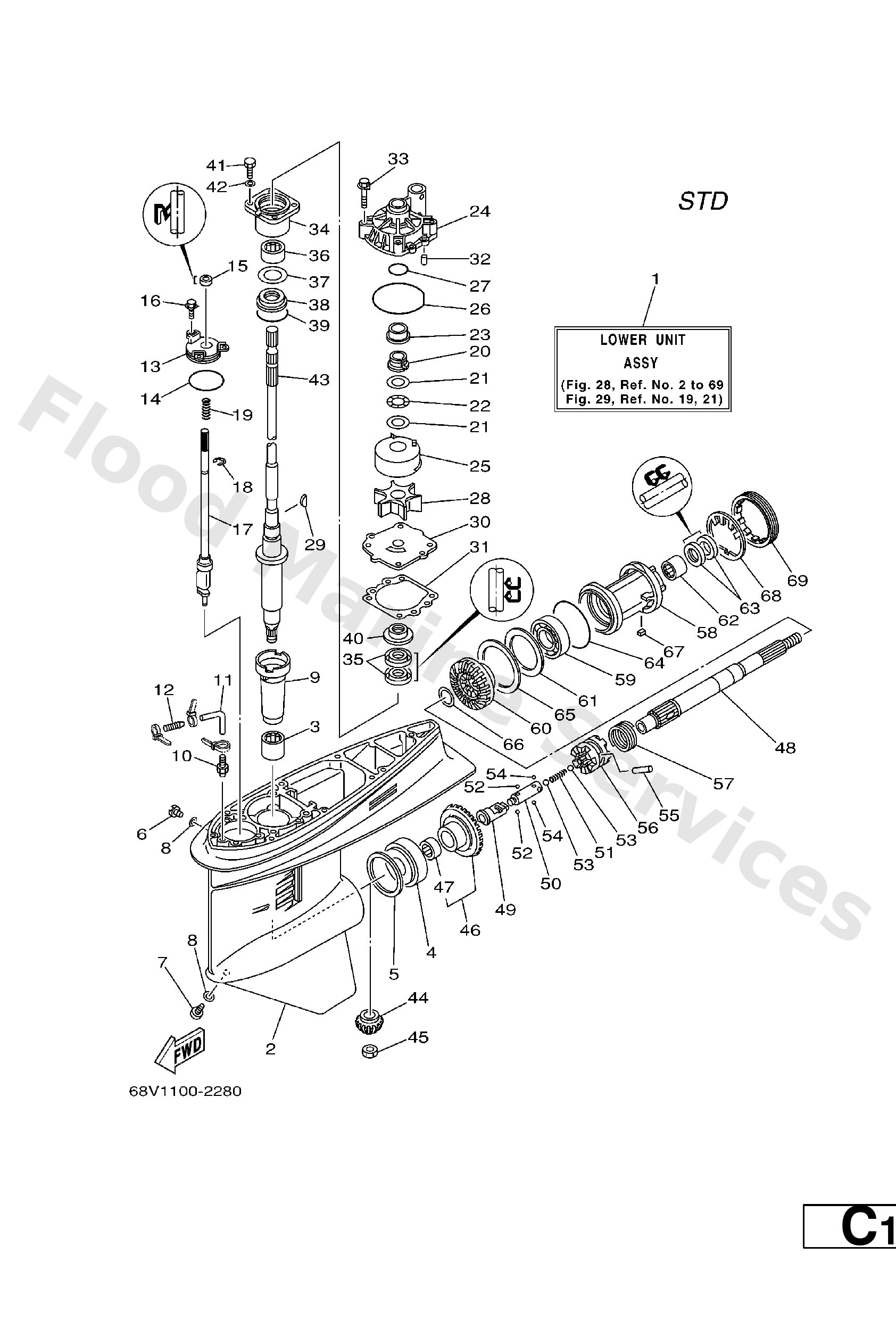

Diagram: LOWER CASING. DRIVE 1
Parts List
Reference
Description
Price
1
68V−45300−32−8D
X
Lower unit assembly
Loading…
↗
1
68V−45300−12−8D
L
Lower unit assembly
Loading…
↗
2
6E5−45301−05−8D
Casing, lower
Loading…
↗
3
93315−628U9
Brg,cyl-cal roller (6e5)
Loading…
↗
4
93332−000U7
Brg,tapered roller 76mm (6e5)
Loading…
↗
5
6E5−45567−01−10
UR
Shim (t:0.10mm)
Loading…
↗
5
6E5−45567−01−12
UR
Shim (t:0.12mm)
Loading…
↗
5
6E5−45567−01−15
UR
Shim (t:0.15mm)
Loading…
↗
5
6E5−45567−01−18
UR
Shim (t:0.18mm)
Loading…
↗
5
6E5−45567−01−30
UR
Shim (t:0.30mm)
Loading…
↗
5
6E5−45567−01−40
UR
Shim (t:0.40mm)
Loading…
↗
5
6E5−45567−01−50
UR
Shim (t:0.50mm)
Loading…
↗
6
90340−08002
Plug, straight screw
Loading…
↗
7
688−45341−10
Plug, drain
Loading…
↗
8
90430−08020
Gasket
Loading…
↗
9
6E5−45536−00
Sleeve, drive shaft
Loading…
↗
10
6E5−45378−00
Nipple, hose
Loading…
↗
11
90445−07ME8
L
Hose (l250)
Loading…
↗
11
90445−07ME9
X
Hose (l250)
Loading…
↗
12
6E5−83558−10
End, nipple
Loading…
↗
13
6E5−45321−00
Plate
Loading…
↗
14
93210−58144
O-ring(47x)
Loading…
↗
15
93106−09014
Oil seal
Loading…
↗
16
90119−06M10
Bolt, with washer
Loading…
↗
17
6L6−44150−01
Shift cam assembly
Loading…
↗
18
99001−08600
Circlip(2r6)
Loading…
↗
19
90501−11M10
Spring, compression (663)
Loading…
↗
20
61A−45538−00
Spacer, 1
Loading…
↗
21
90201−22M01
Washer, plate(61a)
Loading…
↗
22
90206−22M19
Washer, wave(61a)
Loading…
↗
23
61A−45527−00
Collar, drive shaft
Loading…
↗
24
61A−44311−01
Housing, water pump
Loading…
↗
25
61A−44322−02
Insert, cartridge
Loading…
↗
26
93210−86M38
O-ring (6e5)
Loading…
↗
27
93210−37160
O-ring (6g8)
Loading…
↗
28
6E5−44352−01
Impeller
Loading…
↗
29
90280−04M05
Key, woodruff (6e5)
Loading…
↗
30
68V−44323−00
Outer plate, cartridge
Loading…
↗
31
6E5−44315−A0
Gasket,water pump
Loading…
↗
32
93606−12019
Pin, dowel (614)
Loading…
↗
33
90119−08M14
Bolt, with washer
Loading…
↗
34
6E5−45331−00−94
Housing, bearing
Loading…
↗
35
93101−28M16
Oil seal (6e5)
Loading…
↗
36
93317−330U2
Bearing, cylindrical(6k0)
Loading…
↗
37
6E5−45587−01−50
UR
Shim (t:0.50mm)
Loading…
↗
37
6E5−45587−01−12
UR
Shim (t:0.12mm)
Loading…
↗
37
6E5−45587−01−40
UR
Shim (t:0.40mm)
Loading…
↗
37
6E5−45587−01−30
UR
Shim (t:0.30mm)
Loading…
↗
37
6E5−45587−01−15
UR
Shim (t:0.15mm)
Loading…
↗
37
6E5−45587−01−18
UR
Shim (t:0.18mm)
Loading…
↗
37
6E5−45587−01−10
UR
Shim (t:0.10mm)
Loading…
↗
38
93341−930V2
Bearing, thrust(64d)
Loading…
↗
39
93210−55M14
O-ring (70e)
Loading…
↗
40
6E5−45344−00
Cover, oil seal
Loading…
↗
41
97095−08025
Bolt (62g)
Loading…
↗
42
92995−08600
Washer, plain (663)
Loading…
↗
43
68V−45501−10
L
Drive shaft comp.
Loading…
↗
43
68V−45501−30
X
Drive shaft comp.
Loading…
↗
44
68V−45551−00
Pinion
Loading…
↗
45
90170−16M01
Nut, hexagon (688)
Loading…
↗
46
68V−45560−00
Gear
Loading…
↗
47
93315−425U7
Brg,cyl-cal roller (6e5)
Loading…
↗
48
6E5−45611−01
Shaft, propeller
Loading…
↗
49
6K1−45641−01
Shifter
Loading…
↗
50
6E5−45634−01
Slide, shift
Loading…
↗
51
90501−16M37
Spring (6g5)
Loading…
↗
52
93507−32009
Ball (12r)
Loading…
↗
53
93511−32017
Ball (498)
Loading…
↗
54
93503−16003
Ball
Loading…
↗
55
90250−08M07
Pin, straight (6g5)
Loading…
↗
56
68V−45631−01
Clutch, dog
Loading…
↗
57
6E5−45633−01
Ring, cross pin
Loading…
↗
58
6E5−45332−00−94
Housing, bearing
Loading…
↗
59
93306−208U0
Brg,r-b 6208 80mm 345g (6e5)
Loading…
↗
60
68V−45571−00
Gear
Loading…
↗
61
6E5−45576−00
Washer, thrust 2
Loading…
↗
62
93315−430U8
Bearing
Loading…
↗
63
93101−30M17
Oil seal (6e5)
Loading…
↗
64
93210−86M39
O-ring (6e5)
Loading…
↗
65
6L6−45577−00−12
UR
Shim (t:0.12mm)
Loading…
↗
65
6L6−45577−00−10
UR
Shim (t:0.10mm)
Loading…
↗
65
6L6−45577−00−15
UR
Shim (t:0.15mm)
Loading…
↗
65
6L6−45577−00−18
UR
Shim (t:0.18mm)
Loading…
↗
65
6L6−45577−00−30
UR
Shim (t:0.30mm)
Loading…
↗
65
6L6−45577−00−40
UR
Shim (t:0.40mm)
Loading…
↗
65
6L6−45577−00−50
UR
Shim (t:0.50mm)
Loading…
↗
66
90201−30M92
Washer (6g5)
Loading…
↗
67
90282−04010
Key, strait(663)
Loading…
↗
68
688−45383−02
Washer, claw
Loading…
↗
69
688−45384−00
Nut
Loading…
↗
