F4AMH (2003)
LOWER CASING. DRIVE 1

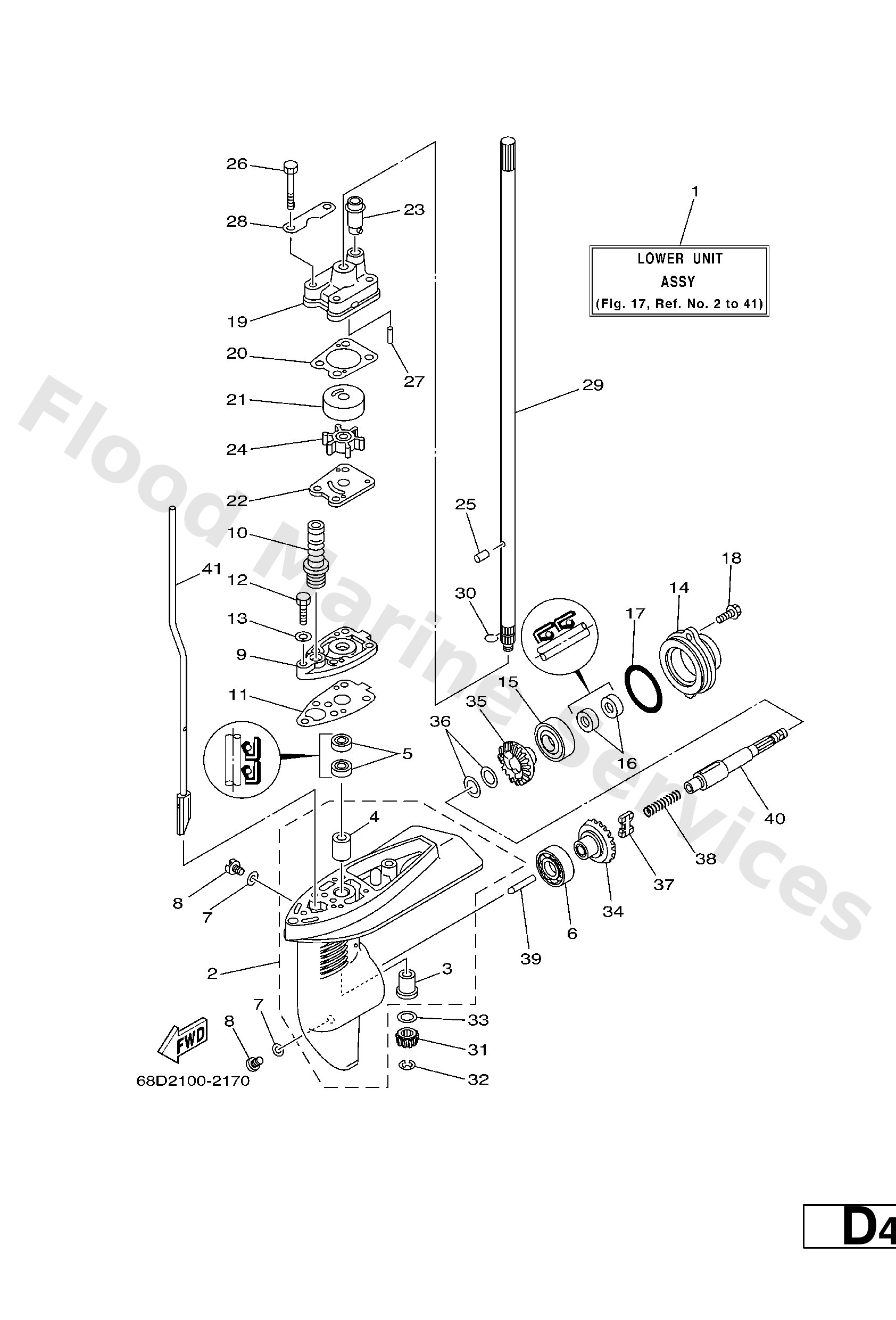

Diagram: LOWER CASING. DRIVE 1
Parts List
Reference
Description
Price
3
6E0−45317−09
Bushing
Loading…
↗
4
6E0−45316−09
Bushing
Loading…
↗
5
93101−10M14
Oil seal
Loading…
↗
6
93306−004YH
Bearing (7k2)
Loading…
↗
7
90430−08801
Gasket
Loading…
↗
8
90340−08002
Plug, straight screw
Loading…
↗
9
68D−G5321−00
Plate
Loading…
↗
10
6L2−44147−00
Boot, shift rod
Loading…
↗
11
68D−G5315−A0
Packing, lower cas
Loading…
↗
12
97095−06025
Bolt
Loading…
↗
13
92995−06600
Washer, plain (646)
Loading…
↗
16
93101−13M12
Oil seal
Loading…
↗
17
93210−48214
O-ring
Loading…
↗
18
95895−06016
Bolt, flange deep recess
Loading…
↗
19
68D−G4311−01
Housing water pump
Loading…
↗
20
68D−G4315−A0
Gasket, water pump
Loading…
↗
21
68D−G4322−00
Insert, cartridge
Loading…
↗
22
6E0−44323−00
Outer plate, cartridge
Loading…
↗
23
67D−44366−00
Damper, water seal 2
Loading…
↗
24
6E0−44352−00
Impeller
Loading…
↗
25
93604−09066
Pin, dowel
Loading…
↗
26
97095−06045
Bolt, hexagon
Loading…
↗
27
93604−18080
Pin. dowel. (647)
Loading…
↗
28
68D−G4328−00
Plate
Loading…
↗
29
68D−G5511−00
S
Shaft, drive
Loading…
↗
29
68D−G5511−10
L
Shaft, drive
Loading…
↗
30
90467−08M01
Clip (6e0)
Loading…
↗
31
6E0−45551−00
Pinion (13t)
Loading…
↗
32
99001−06600
Circlip(53l)
Loading…
↗
33
90201−11M49
Washer, plate (6e0)
Loading…
↗
34
67D−45560−00
Gear
Loading…
↗
35
67D−45570−00
Gear
Loading…
↗
36
67D−45576−00
Washer, thrust 2
Loading…
↗
37
67D−45631−01
Clutch, dog
Loading…
↗
38
90501−10064
Spring, compression 6164563600
Loading…
↗
39
67D−45635−00
Plunger, shift
Loading…
↗
40
68D−G5611−10
Shaft, propeller
Loading…
↗
41
68D−G4150−00
S
Shift cam assembly
Loading…
↗
41
68D−G4150−10
L
Shift cam assembly
Loading…
↗
