F6AMH (2003)
LOWER CASING. DRIVE 1

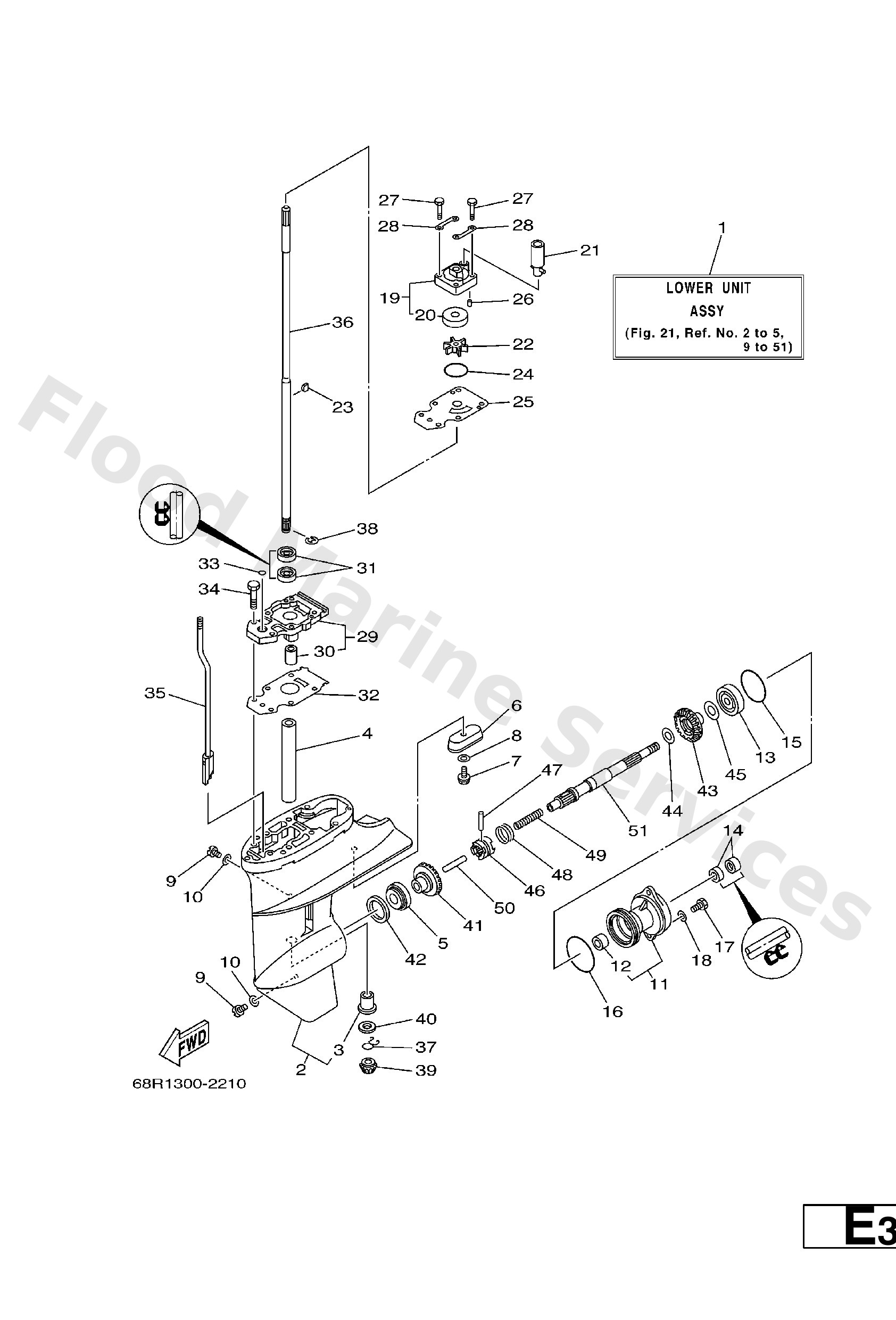

Diagram: LOWER CASING. DRIVE 1
Parts List
Reference
Description
Price
1
68T−45300−10−4D
L
Lower unit assembly
Loading…
↗
1
68T−45300−00−4D
S
Lower unit assembly
Loading…
↗
2
68T−45311−00−4D
Casing, lower
Loading…
↗
3
6G1−45317−09
Bushing, drive shaft 2
Loading…
↗
4
90387−14M49
Collar (6g1)
Loading…
↗
5
93306−004U0
Bearing (7k2)
Loading…
↗
6
68T−45251−00
Anode
Loading…
↗
7
95895−06016
Bolt, flange deep recess
Loading…
↗
8
92990−06300
Washer, tooth
Loading…
↗
9
90340−08002
Plug, straight screw
Loading…
↗
10
90430−08020
Gasket
Loading…
↗
11
6G1−45361−01−4D
Cap, lower casing
Loading…
↗
12
6G1−45362−09
Bushing, lower casing cap
Loading…
↗
14
93101−15074
Oil seal (655)
Loading…
↗
15
93210−49046
O-ring (620)
Loading…
↗
16
93210−53M08
O-ring(50m)
Loading…
↗
17
97095−06016
Bolt, hexagon deep recess
Loading…
↗
18
92995−06600
Washer, plain (646)
Loading…
↗
19
63V−44301−00
Water pump housing comp.
Loading…
↗
20
63V−44322−00
Insert, cartridge
Loading…
↗
21
68T−44366−00
Damper, water seal 2
Loading…
↗
22
68T−44352−00
Impeller
Loading…
↗
23
664−44338−00
Key, woodruff
Loading…
↗
24
93210−44398
O-ring(55x)
Loading…
↗
25
68T−44323−00
Outer plate, cartridge
Loading…
↗
26
93604−12M07
Pin, dowel (688)
Loading…
↗
27
97080−08045
Bolt, hexagon
Loading…
↗
28
63V−44328−00
Plate
Loading…
↗
29
68T−45331−00−5B
Housing, bearing
Loading…
↗
30
6G1−45316−09
Bushing, drive shaft 1
Loading…
↗
31
93101−11M23
Oil seal (6g1)
Loading…
↗
32
68T−45315−A0
Packing, lower casing
Loading…
↗
33
93210−06ME6
O-ring
Loading…
↗
34
97080−08025
Screw, bind(j36)
Loading…
↗
35
68T−44150−00
Shift cam assembly
Loading…
↗
36
68T−45511−00
S
Shaft, drive
Loading…
↗
36
68T−45511−10
L
Shaft, drive
Loading…
↗
37
90467−09M05
Clip (6g1)
Loading…
↗
38
99001−07600
Circlip(6l2)
Loading…
↗
39
68T−45551−00
Pinion
Loading…
↗
40
6G1−45533−00−19
UR
Shim (t:1.9mm)
Loading…
↗
40
6G1−45533−00−22
UR
Shim (t:2.2mm)
Loading…
↗
40
6G1−45533−00−21
UR
Shim (t:2.1mm)
Loading…
↗
40
6G1−45533−00−20
UR
Shim (t:2.0mm)
Loading…
↗
41
68T−45560−00
Gear
Loading…
↗
42
664−45587−01−50
UR
Shim (t:0.50mm)
Loading…
↗
42
664−45587−01−12
UR
Shim (t:0.12mm)
Loading…
↗
42
664−45587−01−40
UR
Shim (t:0.40mm)
Loading…
↗
42
664−45587−01−30
UR
Shim (t:0.30mm)
Loading…
↗
42
664−45587−01−18
UR
Shim (t:0.18mm)
Loading…
↗
42
664−45587−01−15
UR
Shim (t:0.15mm)
Loading…
↗
42
664−45587−01−10
UR
Shim (t:0.10mm)
Loading…
↗
43
68T−45571−00
Gear
Loading…
↗
44
90201−15M89
Washer, plate (6g1)
Loading…
↗
45
647−45567−00
UN
Shim, gear adjust
Loading…
↗
46
68T−45631−00
Clutch, dog
Loading…
↗
47
6G1−45632−00
Cross, pin
Loading…
↗
48
654−45633−00
Ring, cross pin
Loading…
↗
49
90501−12M05
Spring, compression
Loading…
↗
50
6G1−45635−00
Plunger, shift
Loading…
↗
51
68T−45611−00
Shaft, propeller
Loading…
↗
