FT25BET (2002)
LOWER CASING. DRIVE 1

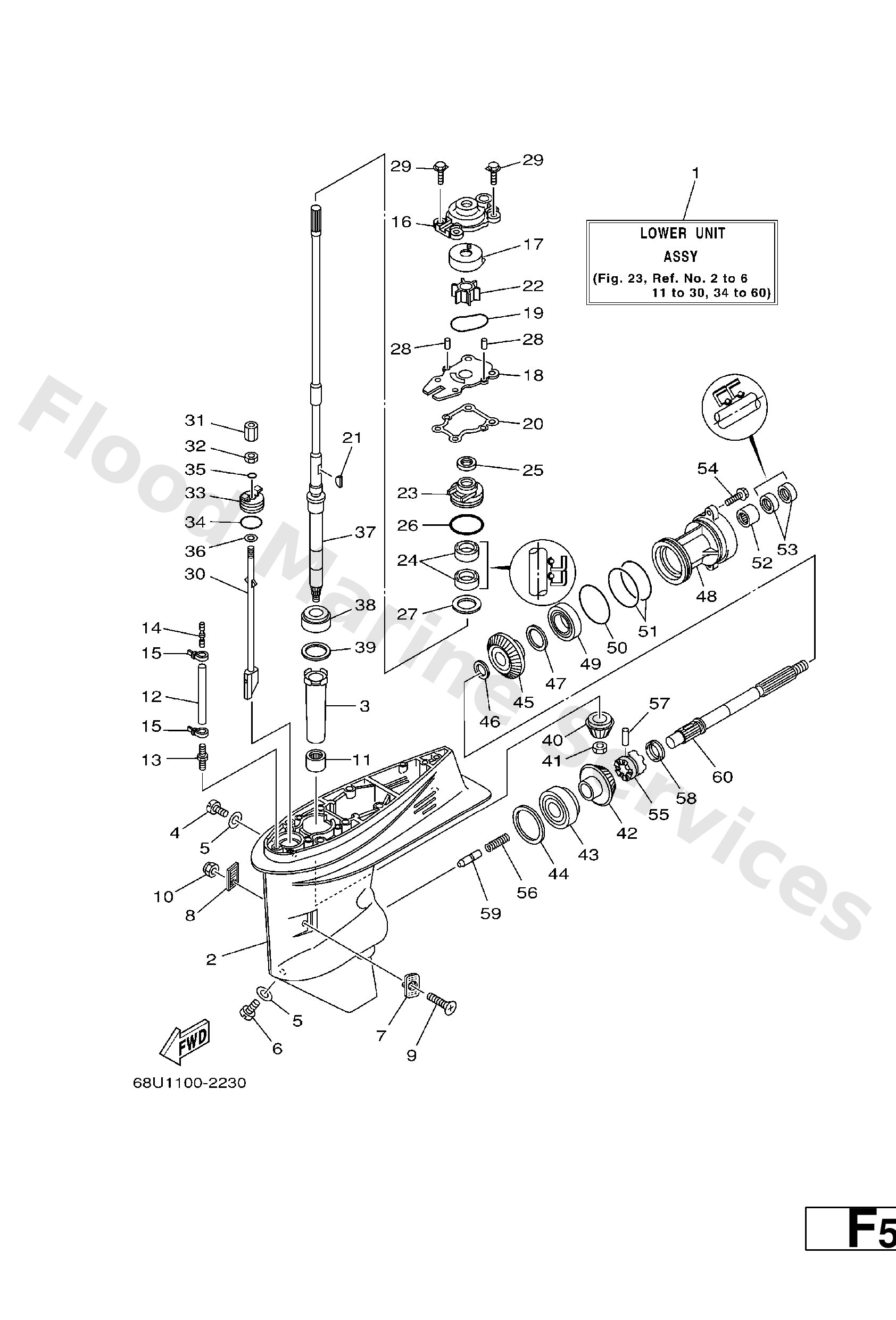

Diagram: LOWER CASING. DRIVE 1
Parts List
Reference
Description
Price
1
68U45300214D
X
Lower unit assembly
Loading…
↗
1
68U45300114D
L
-
Loading…
↗
2
67C--45301--00--4D
Casing, lower
Loading…
↗
3
6H4--45536--00
Sleeve, drive shaft
Loading…
↗
4
90340--08002
Plug, straight screw
Loading…
↗
5
90430--08020
Gasket
Loading…
↗
6
688--45341--10
Plug, drain
Loading…
↗
7
63D--45214--00
Cover, water inlet
Loading…
↗
8
63D--45215--00
Cover, water inlet
Loading…
↗
9
90142--05M06
Screw, countersunk
Loading…
↗
10
95380--05600
Nut, hexagon (663)
Loading…
↗
11
93315--32224
Brg,cyl-cal roller 42.2g nk
Loading…
↗
12
90445--07M31
X
Hose (l200)
Loading…
↗
12
90445--07ME8
L
Hose (l250)
Loading…
↗
13
6E5--45378--00
Nipple, hose
Loading…
↗
14
6E5--83558--10
End, nipple
Loading…
↗
14
6E5--83558--00
End, nipple
Loading…
↗
15
90465--11M10
Clamp
Loading…
↗
16
66T--44311--00
Housing, water pump
Loading…
↗
17
63D--44322--00
Insert, cartridge
Loading…
↗
18
66T--44323--00
Outer plate, cartridge
Loading…
↗
19
93210--59MG7
O-ring
Loading…
↗
20
63D--44316--00
Gasket, water pump
Loading…
↗
21
90280--03M03
Key, woodruff (697)
Loading…
↗
22
6H4--44352--02
Impeller
Loading…
↗
23
63D--44341--00
Housing, water pump set
Loading…
↗
24
93101--22M60
Oil seal
Loading…
↗
25
66T--45344--01
Cover, oil seal
Loading…
↗
26
93210--48MG8
O-ring
Loading…
↗
27
90201--27M00
Washer, plate(62x)
Loading…
↗
28
93604--08062
Pin,dowel (626)
Loading…
↗
29
90119--08M15
Bolt, with washer(62w)
Loading…
↗
30
67C--44150--10
L
Shift cam assembly
Loading…
↗
30
67C4415020
X
Shift cam assembly
Loading…
↗
31
67C--44146--00
Connector, shift rod
Loading…
↗
32
95380--06700
Nut
Loading…
↗
33
68U--45321--00
Plate
Loading…
↗
34
93210--33MG4
O-ring
Loading…
↗
35
93210--06ME6
O-ring
Loading…
↗
36
92990--06600
Washer, plain (646)
Loading…
↗
37
68U4550121
X
Drive Shaft Comp.
Loading…
↗
37
68U4550111
L
Drive shaft comp.
Loading…
↗
38
93332--00001
Brg, tapered roller (409)
Loading…
↗
39
663--45587--01--12
UR
Shim (t:0.12mm)
Loading…
↗
39
663--45587--01--15
UR
Shim (t:0.15mm)
Loading…
↗
39
663--45587--01--18
UR
Shim (t:0.18mm)
Loading…
↗
39
663--45587--01--30
UR
Shim (t:0,30mm)
Loading…
↗
39
663--45587--01--40
UR
Shim (t:0.40mm)
Loading…
↗
39
663--45587--01--50
UR
Shim (t:0.50mm)
Loading…
↗
39
663--45587--01--10
UR
Shim (t:0.10mm)
Loading…
↗
40
68U--45551--00
Pinion
Loading…
↗
41
90179--10M38
Nut
Loading…
↗
42
68U--45560--00
Gear
Loading…
↗
43
93332--00003
Brg,cyl-cal roller 318g ky
Loading…
↗
44
663--45567--01--10
UR
Shim (t:0.10mm)
Loading…
↗
44
663--45567--01--12
UR
Shim (t:0.12mm)
Loading…
↗
44
663--45567--01--15
UR
Shim (t:0.15mm)
Loading…
↗
44
663--45567--01--18
UR
Shim (t:0.18mm)
Loading…
↗
44
663--45567--01--30
UR
Shim (t:0.30mm)
Loading…
↗
44
663--45567--01--40
UR
Shim (t:0.40mm)
Loading…
↗
44
663--45567--01--50
UR
Shim (t:0.50mm)
Loading…
↗
45
68U--45571--00
Gear
Loading…
↗
46
90201--22429
Washer, plate(663)
Loading…
↗
47
63D--45577--00--12
UR
Shim (t:0.12mm)
Loading…
↗
47
63D--45577--00--15
UR
Shim (t:0.15mm)
Loading…
↗
47
63D--45577--00--18
UR
Shim (t:0.18mm)
Loading…
↗
47
63D--45577--00--30
UR
Shim (t:0.30mm)
Loading…
↗
47
63D--45577--00--40
UR
Shim (t:0.40mm)
Loading…
↗
47
63D--45577--00--50
UR
Shim (t:0.50mm)
Loading…
↗
47
63D--45577--00--10
UR
Shim (t:0.10mm)
Loading…
↗
48
63D--45361--02--4D
Cap, lower casing
Loading…
↗
49
93306--001U1
Bearing(62x)
Loading…
↗
50
93210--69MG6
O-ring
Loading…
↗
51
93210--74MG5
O-ring (xea)
Loading…
↗
52
93317--22204
Brg,cyl-cal roller 25.5g nt
Loading…
↗
53
93101--22M00
Oil seal (22x36x6-663)
Loading…
↗
54
90105--08M61
Bolt, washer based(62x)
Loading…
↗
55
68U--45631--00
Clutch, dog
Loading…
↗
56
90501--15M01
Spring, compression
Loading…
↗
57
90250--06023
Pin, strait (663)
Loading…
↗
58
67C--45633--00
Ring, cross pin
Loading…
↗
59
66T--45635--00
Plunger, shift
Loading…
↗
60
66T--45611--00
Shaft, propeller
Loading…
↗
