FT9.9DE (2003)
LOWER CASING. DRIVE 1

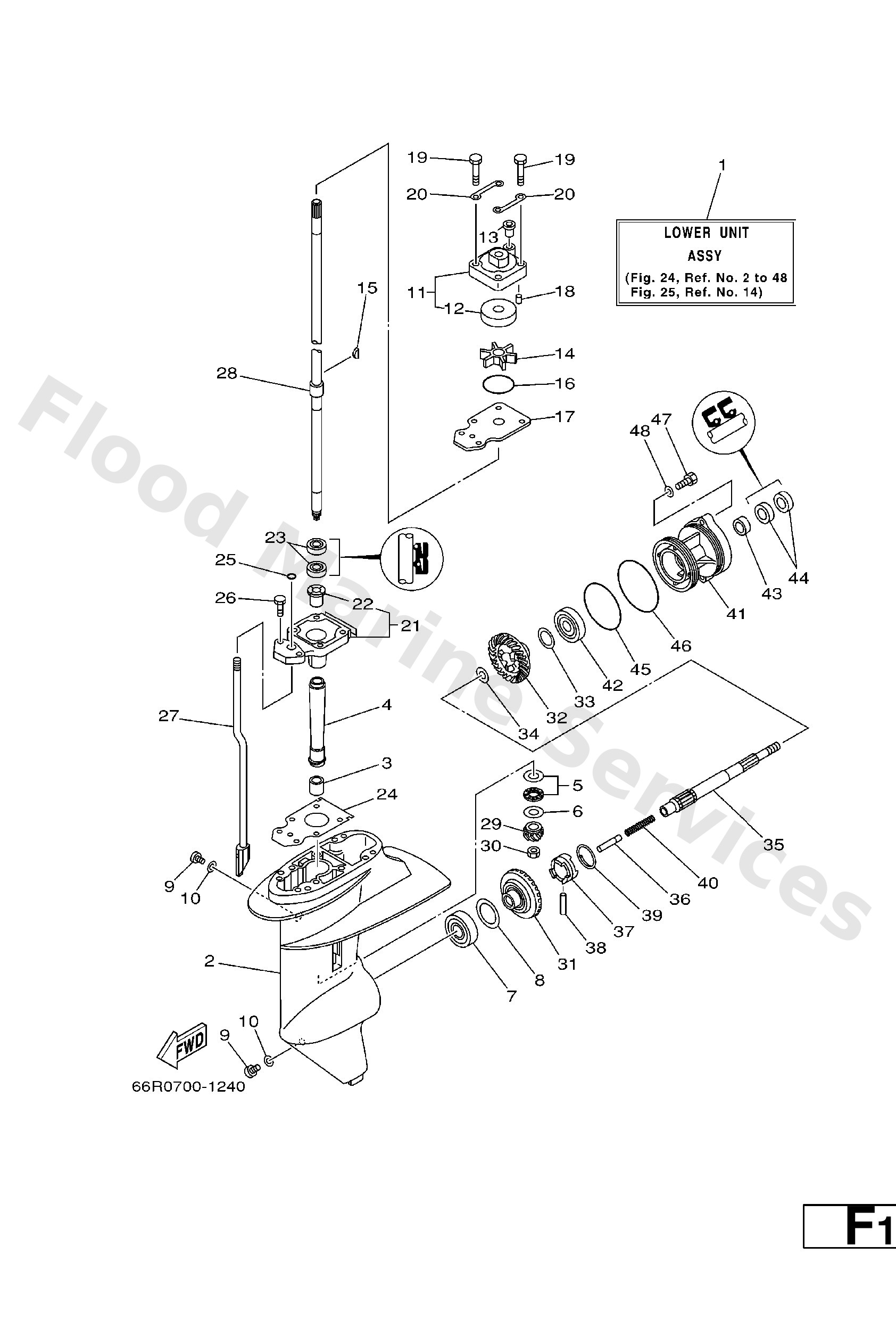

Diagram: LOWER CASING. DRIVE 1
Parts List
Reference
Description
Price
1
66R−45300−21−4D
X
Lower unit assembly
Loading…
↗
1
66R−45300−11−4D
L
24 −
Loading…
↗
2
66R−45311−01−4D
Casing, lower
Loading…
↗
3
93315−314V8
Bearing, needle (6e7)
Loading…
↗
4
66R−45536−00
Sleeve, drive shaft
Loading…
↗
5
93341−41416
Bearing
Loading…
↗
6
66R−45587−00−13
UR
Shim (t:1.13mm)
Loading…
↗
6
66R−45587−00−20
UR
Shim (t:1.2mm)
Loading…
↗
7
93332−00005
Brg,cyl-cal roller 0.19g nt
Loading…
↗
8
626−45577−00−01
UR
Shim (t:0.10mm)
Loading…
↗
8
626−45577−00−03
UR
Shim (t:0.30mm)
Loading…
↗
8
626−45577−00−05
UR
Shim (t:0.50mm)
Loading…
↗
9
90340−08002
Plug, straight screw
Loading…
↗
10
90430−08020
Gasket
Loading…
↗
11
63V−44301−00
Water pump housing comp.
Loading…
↗
12
63V−44322−00
Insert, cartridge
Loading…
↗
13
647−44366−00
Damper, water seal 2
Loading…
↗
14
63V−44352−01
Impeller
Loading…
↗
15
664−44338−00
Key, woodruff
Loading…
↗
16
93210−44398
O-ring(55x)
Loading…
↗
17
63V−44323−00
Outer plate, cartridge
Loading…
↗
18
93604−12M07
Pin, dowel (688)
Loading…
↗
19
97080−08045
Bolt, hexagon
Loading…
↗
20
63V−44328−00
Plate
Loading…
↗
21
63V−45331−00−5B
Housing, bearing
Loading…
↗
22
90381−14020
Bushing, drive shaft 1
Loading…
↗
23
93101−20048
Oil seal (20x30x6-648)
Loading…
↗
24
63V−45315−A0
Packing, lower casing
Loading…
↗
25
93210−06ME6
O-ring
Loading…
↗
26
97080−08025
Screw, bind(j36)
Loading…
↗
27
66R−44150−10
L
Shift cam assembly
Loading…
↗
27
66R−44150−20
X
Shift Cam assembly
Loading…
↗
28
66R−45510−10
L
24 −
Loading…
↗
28
66R−45510−20
X
Drive Shaft assembly
Loading…
↗
29
66R−45551−00
Pinion
Loading…
↗
30
90179−08M06
Nut (6e7)
Loading…
↗
31
66R−45560−00
Gear
Loading…
↗
32
66R−45571−00
Gear
Loading…
↗
34
90201−17682
Washer, plate (2k7)
Loading…
↗
35
683−45611−00
Shaft propeller
Loading…
↗
36
650−45635−00
Plunger, shift
Loading…
↗
37
682−45631−00
Clutch, dog
Loading…
↗
38
90250−05010
Pin straight 648456320000
Loading…
↗
39
648−45633−00
Ring, cross pin
Loading…
↗
40
90501−14M09
Spring, compression
Loading…
↗
41
66R−45361−00−4D
Cap, lower casing
Loading…
↗
42
93306−00501
Bearing(1ff)
Loading…
↗
43
93315−317U2
Brg,cyl-cal roller 14g (683)
Loading…
↗
44
93101−17054
Oil seal (17x30x6-650)
Loading…
↗
45
93210−74M68
O-ring (6g8)
Loading…
↗
46
93210−74316
O-ring (1j7)
Loading…
↗
47
97095−06025
Bolt
Loading…
↗
48
92995−06600
Washer, plain (646)
Loading…
↗
