200GETO (2003)
LOWER CASING. DRIVE 2

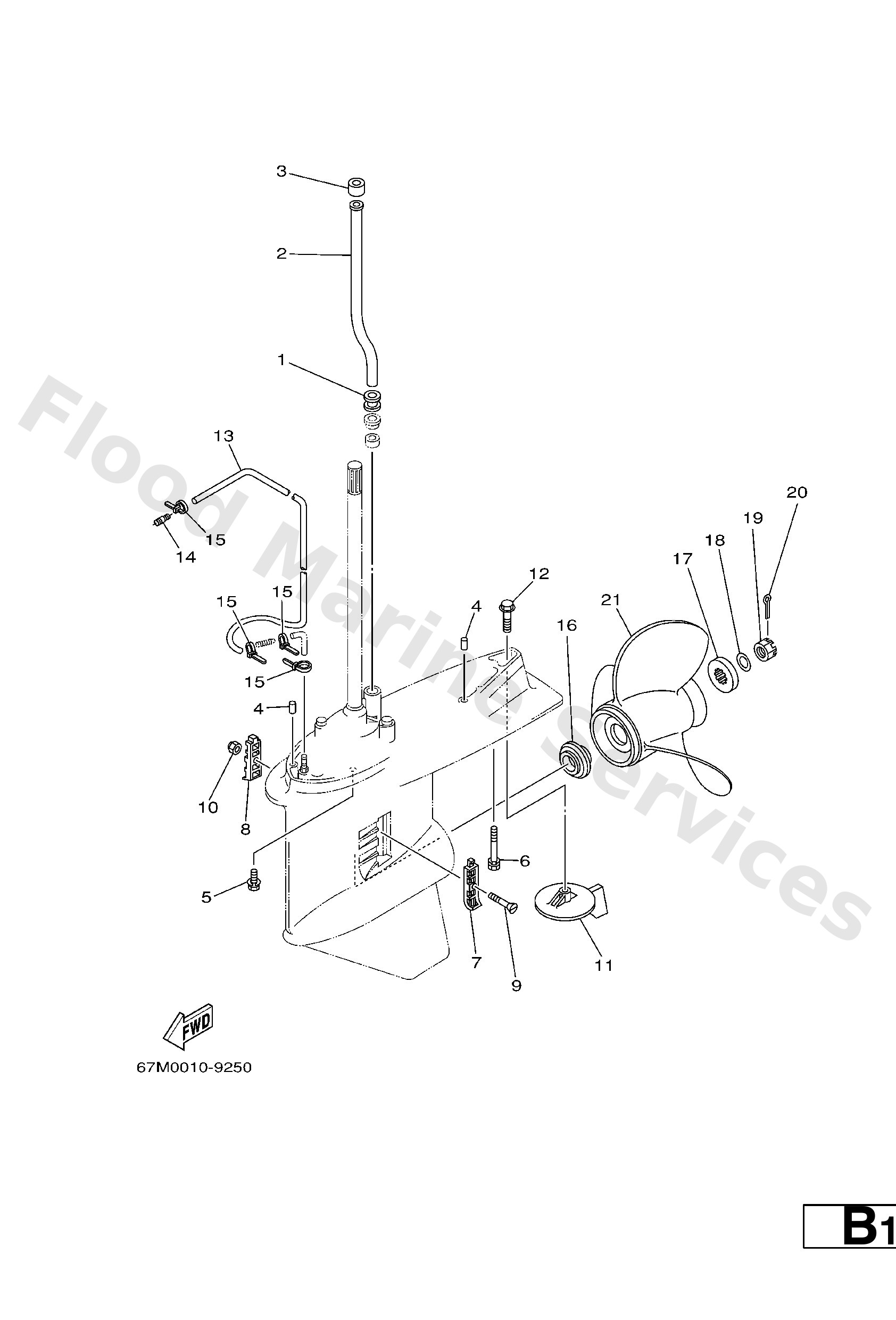

Diagram: LOWER CASING. DRIVE 2
Parts List
Reference
Description
Price
1
6E5−44366−00
Damper, water seal 2
Loading…
↗
2
6E5−44361−00
L
Tube, water
Loading…
↗
3
6E5−44365−00
Damper, water seal 1
Loading…
↗
4
93608−12M05
Pin, dowel b (6e5)
Loading…
↗
5
90101−10M70
Bolt(6j9)
Loading…
↗
6
90119−10M89
Bolt, with washer
Loading…
↗
7
6J9−45214−00
Cover, water inlet
Loading…
↗
8
6J9−45215−00
Cover, water inlet
Loading…
↗
9
90152−05M08
Screw, countersunk
Loading…
↗
10
90185−05002
Nut nylon (sus)(ex4)
Loading…
↗
11
6J9−45371−01
Tab-trim
Loading…
↗
12
90105−10M00
Bolt, hexagon (663)
Loading…
↗
13
90445−07M33
Hose (L1080)
Loading…
↗
14
6E5−83558−00
End, nipple
Loading…
↗
15
90465−11M10
Clamp
Loading…
↗
16
6E5−45987−01
Spacer 1
Loading…
↗
17
688−45997−01
Spacer 2
Loading…
↗
18
92990−18200
Washer (6e5)
Loading…
↗
19
90171−18M04
Nut, castle (6e5)
Loading…
↗
20
91490−40030
Pin, cotter (663)
Loading…
↗
21
6J9−45970−10
UR
Propeller (3X14−1/2”X25”−M)
Loading…
↗
21
6J9−45972−10
UR
Propeller (3X14−1/2”X23”−M)
Loading…
↗
21
6J9−45974−10
UR
Propeller (3X14−1/2”X27”−M)
Loading…
↗
21
6J9−45976−10
UR
Propeller (3X14−1/2”X21”−M)
Loading…
↗
