20CMH (2002)
LOWER CASING. DRIVE 2

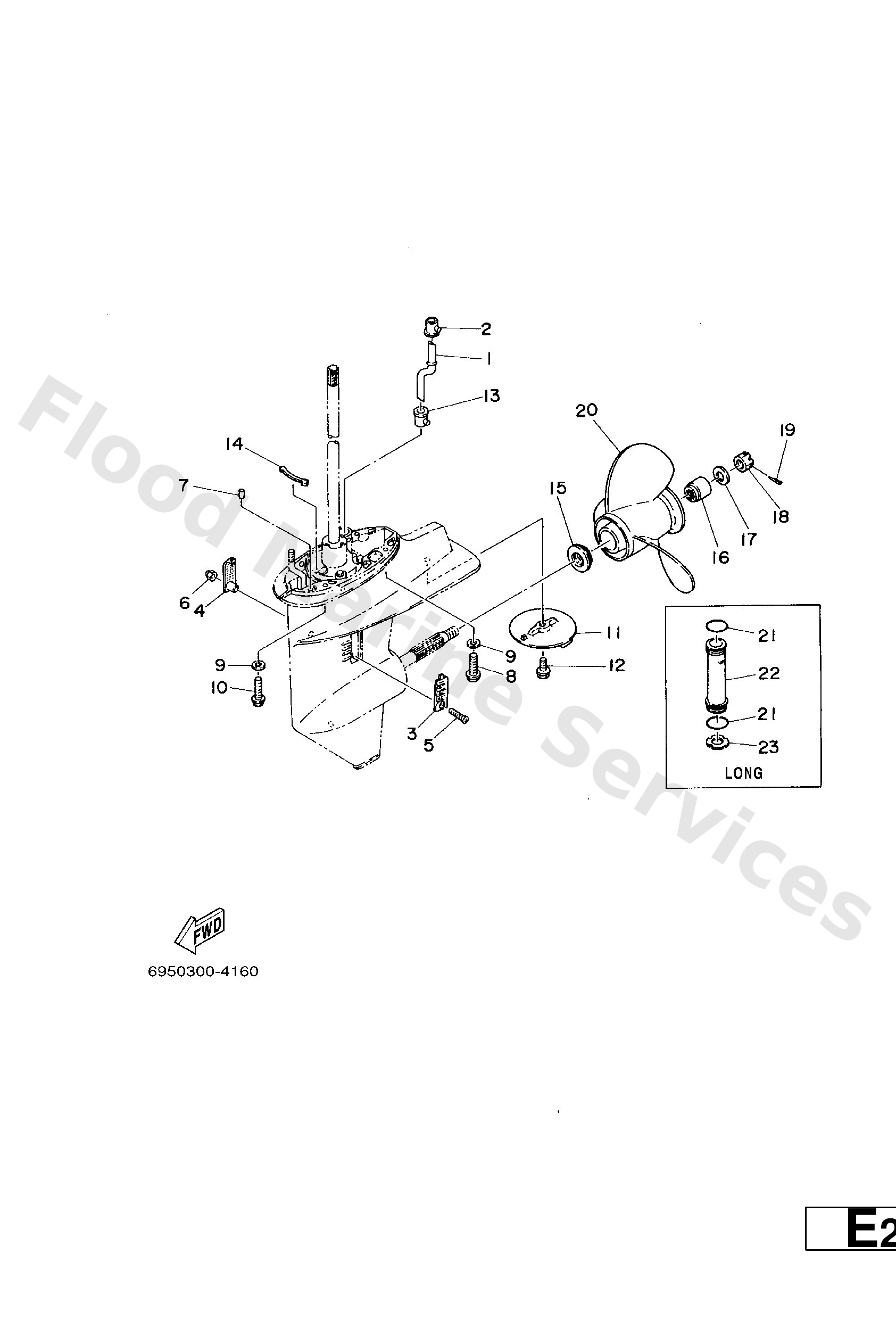

Diagram: LOWER CASING. DRIVE 2
Parts List
Reference
Description
Price
1
6894436110
L
Tube, water 1
Loading…
↗
1
6644436100
S
Tube, water 1
Loading…
↗
2
689--44366--00
Damper, water seal 2
Loading…
↗
3
689--45214--01
Cover, water inlet 1
Loading…
↗
4
6894521501
Cover, Water Inlet
Loading…
↗
5
90152--05M04
Screw, countersunk
Loading…
↗
6
90185--05002
Nut nylon (sus)(ex4)
Loading…
↗
7
93606--11M24
Pin, dowel
Loading…
↗
8
9010510059
Bolt washer based (664)
Loading…
↗
9
92995--10600
Washer, plate
Loading…
↗
10
90105--10M12
Bolt (689)
Loading…
↗
11
664--45371--01
Tab-trim
Loading…
↗
12
90105--08M02
Bolt hexagon
Loading…
↗
13
6264436501
Damper, water seal 1
Loading…
↗
14
6894431400
Spacer
Loading…
↗
15
6644598701
Spacer
Loading…
↗
16
689--45997--00
Spacer
Loading…
↗
17
92990--14200
Washer, plain
Loading…
↗
18
90171--14013
Nut(664)
Loading…
↗
19
91490--30022
Pin, cotter
Loading…
↗
20
664--45941--01--EL
UR
Propeller (3x9-7/8"x9"-f)
Loading…
↗
20
664--45943--01--EL
UR
Propeller (3x9-7/8 x8 -f)
Loading…
↗
20
664--45945--00--EL
UR
Propeller (3x9-7/8 x10-1/2 -f)
Loading…
↗
20
664--45947--01--EL
UR
Propeller (3x9-7/8 x11-1/4 -f)
Loading…
↗
20
664--45949--02--EL
UR
Propeller (3x9-7/8 x13 -f)
Loading…
↗
20
664--45952--00--EL
UR
Propeller (3x9-7/8 x14 -f)
Loading…
↗
21
93210--26130
L
O-ring
Loading…
↗
22
689443620094
L
Tube, Water
Loading…
↗
23
6894432803
L
Plate
Loading…
↗
