225DETO (2003)
LOWER CASING. DRIVE 2

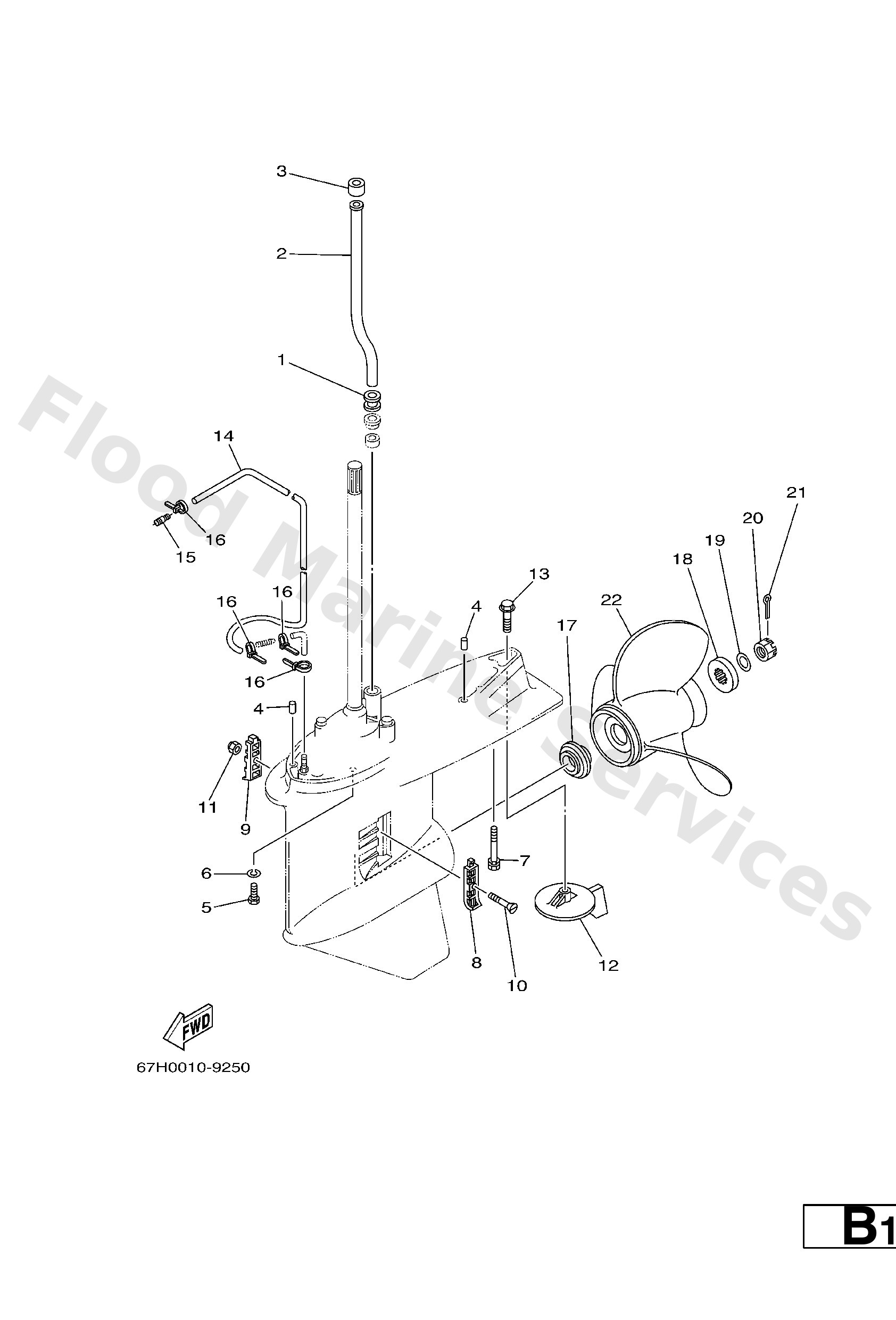

Diagram: LOWER CASING. DRIVE 2
Parts List
Reference
Description
Price
1
6E5−44366−00
Damper, water seal 2
Loading…
↗
2
6E5−44361−00
L
Tube, water
Loading…
↗
2
6E5−44361−20
X
Tube, water
Loading…
↗
3
6E5−44365−00
Damper, water seal 1
Loading…
↗
4
93608−12M05
Pin, dowel b (6e5)
Loading…
↗
5
97075−10045
Bolt(64d)
Loading…
↗
6
92995−10100
Ybs67-10 washer, spring
Loading…
↗
7
90119−10M89
Bolt, with washer
Loading…
↗
8
6J9−45214−00
Cover, water inlet
Loading…
↗
9
6J9−45215−00
Cover, water inlet
Loading…
↗
10
90152−05M08
Screw, countersunk
Loading…
↗
11
90185−05002
Nut nylon (sus)(ex4)
Loading…
↗
12
6J9−45371−01
Tab-trim
Loading…
↗
13
90105−10M00
Bolt, hexagon (663)
Loading…
↗
14
90445−07M33
Hose (L1080)
Loading…
↗
15
6E5−83558−00
End, nipple
Loading…
↗
16
90465−11M10
Clamp
Loading…
↗
17
6E5−45987−01
Spacer 1
Loading…
↗
18
688−45997−01
Spacer 2
Loading…
↗
19
92990−18200
Washer (6e5)
Loading…
↗
20
90171−18M04
Nut, castle (6e5)
Loading…
↗
21
91490−40030
Pin, cotter (663)
Loading…
↗
22
6G5−45949−00−98
UR
Propeller (3x13-1/2"x23"-m)
Loading…
↗
22
6G5−45947−01−98
UR
Propeller (3x14-1/2"x17"-m)
Loading…
↗
22
6G5−45945−01−98
UR
Propeller (3x14"x19"-m)
Loading…
↗
22
6G5−45943−01−98
UR
Propeller (3x13-3/4"x21"-m)
Loading…
↗
22
6G5−45941−00−98
UR
Propeller (3x15-1/4x15-m)
Loading…
↗
22
6G5−45952−00−98
UR
Propeller (3x14-5/8"x16"-m)
Loading…
↗
22
6G5−45930−00−98
UR
Propeller (ss 3x13-3/8"x25"-m)
Loading…
↗
22
6G5−45932−00−98
UR
Propeller (3x15-3/4"x13"-m)
Loading…
↗
22
6G5−45970−02−98
UR
Propeller (3x15-1/4 x15 -m)
Loading…
↗
22
6G5−45972−02−98
UR
Propeller (3x13-3/4 x21 -m)
Loading…
↗
22
6G5−45974−03−98
UR
Propeller (3x13-3/4"x19"-m2)
Loading…
↗
22
6G5−45976−01−98
UR
Propeller (3x13-3/8"x23"-m)
Loading…
↗
22
6G5−45978−03−98
UR
Propeller (3x13-3/4"x17"-m2)
Loading…
↗
