225GETO (1999)
LOWER CASING. DRIVE 2

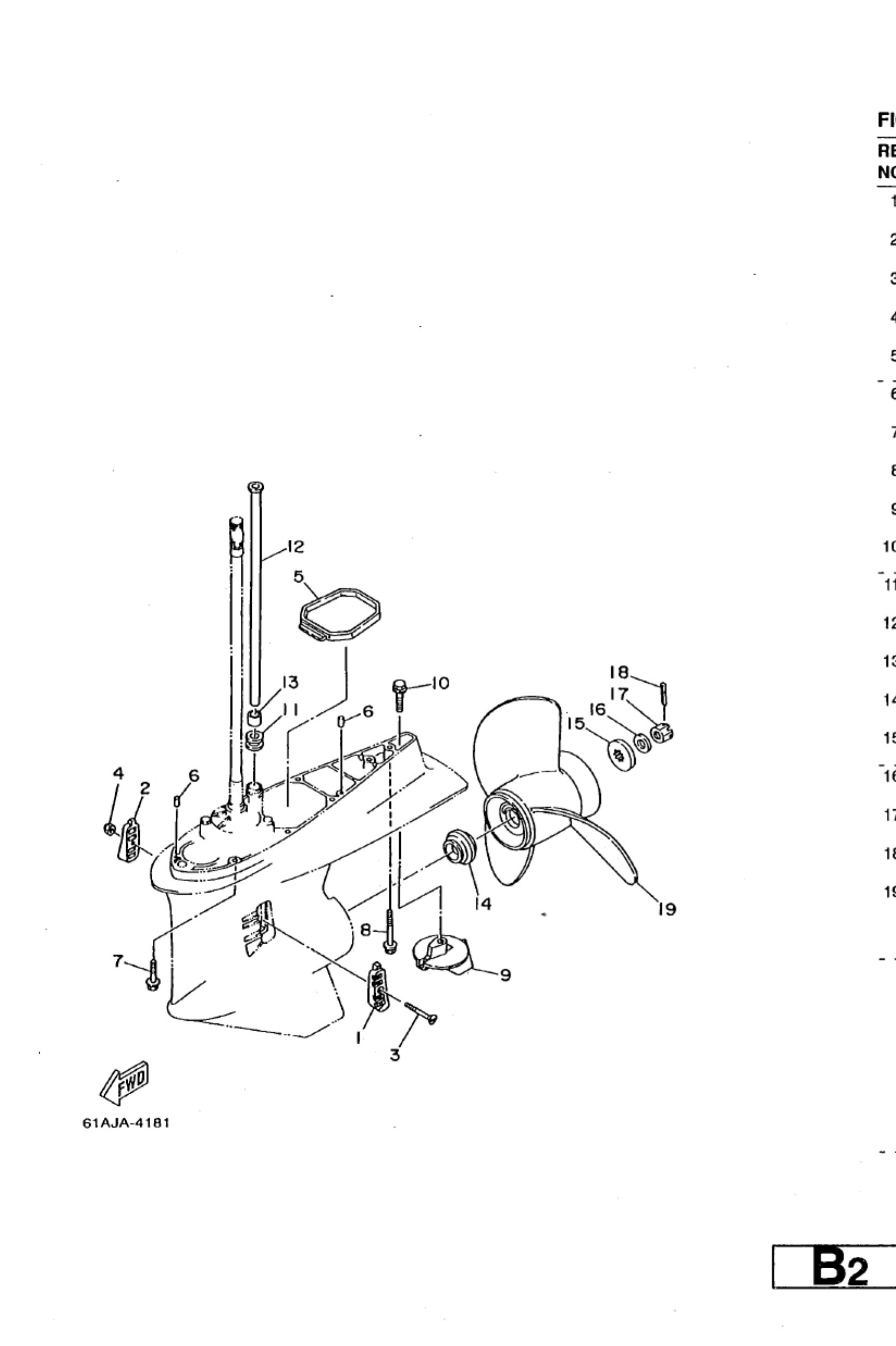

Diagram: LOWER CASING. DRIVE 2
Parts List
Reference
Description
Price
1
61A4521400
Cover, water inlet
Loading…
↗
2
61A4521500
Cover, water inlet
Loading…
↗
3
9014205M04
Screw, countersunk
Loading…
↗
4
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
5
61A4537500
Damper, seal
Loading…
↗
6
9360812M05
Pin, dowel b (6e5)
Loading…
↗
7
9010110M70
Bolt(6j9)
Loading…
↗
8
9011910MA2
Bolt, with washer
Loading…
↗
14
6E54598701
Spacer 1
Loading…
↗
17
9017118M04
Nut, castle (6e5)
Loading…
↗
18
9149040030
Pin, cotter (663)
Loading…
↗
19
66K45970B0
AP
Propeller (3X14-1/2"X27"-M1)
Loading…
↗
