25BMH (2002)
LOWER CASING. DRIVE 2

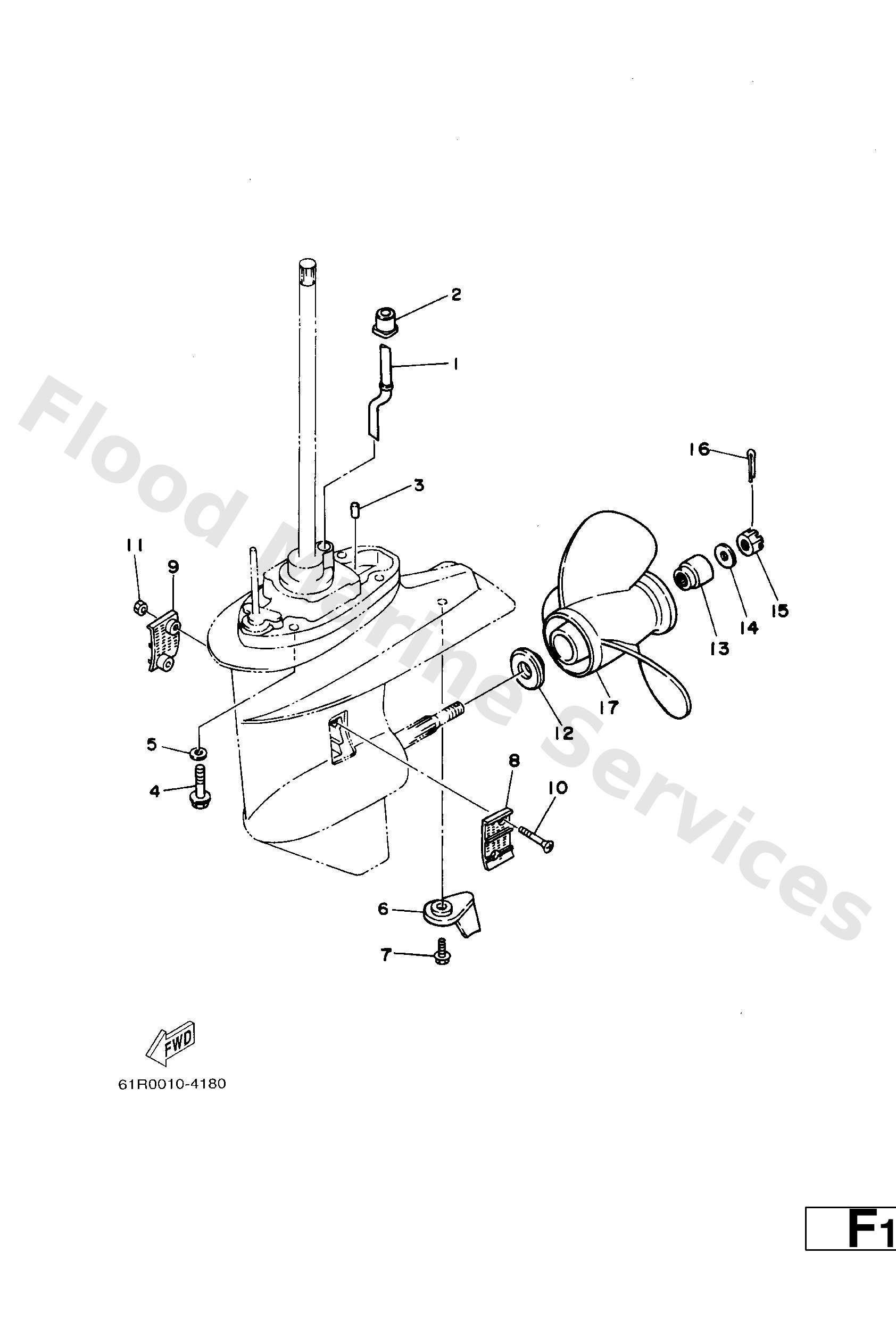

Diagram: LOWER CASING. DRIVE 2
Parts List
Reference
Description
Price
1
61N--44361--10
L
Tube, water
Loading…
↗
1
61N--44361--00
S
Tube, water
Loading…
↗
2
689--44366--00
Damper, water seal 2
Loading…
↗
3
93606--11M24
Pin, dowel
Loading…
↗
4
90105--10M12
Bolt (689)
Loading…
↗
5
92995--10600
Washer, plate
Loading…
↗
6
61N--45371--00
Tab-trim
Loading…
↗
7
90119--06M48
Bolt, with washer(61n)
Loading…
↗
8
6L2--45214--00
Cover, water inlet
Loading…
↗
9
6L2--45215--00
Cover, water inlet
Loading…
↗
10
90151--05M05
Screw, countersunk
Loading…
↗
11
90185--05002
Nut nylon (sus)(ex4)
Loading…
↗
12
6L2--45987--01
Spacer
Loading…
↗
13
689--45997--00
Spacer
Loading…
↗
14
92990--14200
Washer, plain
Loading…
↗
15
90171--14013
Nut(664)
Loading…
↗
16
91490--30022
Pin, cotter
Loading…
↗
17
664--45941--01--EL
UR
Propeller (3x9-7/8"x9"-f)
Loading…
↗
17
664--45943--01--EL
UR
Propeller (3x9-7/8 x8 -f)
Loading…
↗
17
664--45945--00--EL
UR
Propeller (3x9-7/8 x10-1/2 -f)
Loading…
↗
17
664--45947--01--EL
UR
Propeller (3x9-7/8 x11-1/4 -f)
Loading…
↗
17
664--45949--02--EL
UR
Propeller (3x9-7/8 x13 -f)
Loading…
↗
17
664--45952--00--EL
UR
Propeller (3x9-7/8 x14 -f)
Loading…
↗
17
6644595401EL
UR
Propeller (3x9-7/8 x12 -f)
Loading…
↗
17
62C--45941--00--EL
UR
Propeller (3x9-7/8 x10 -f)
Loading…
↗
