30DMHO (1999)
LOWER CASING. DRIVE 2

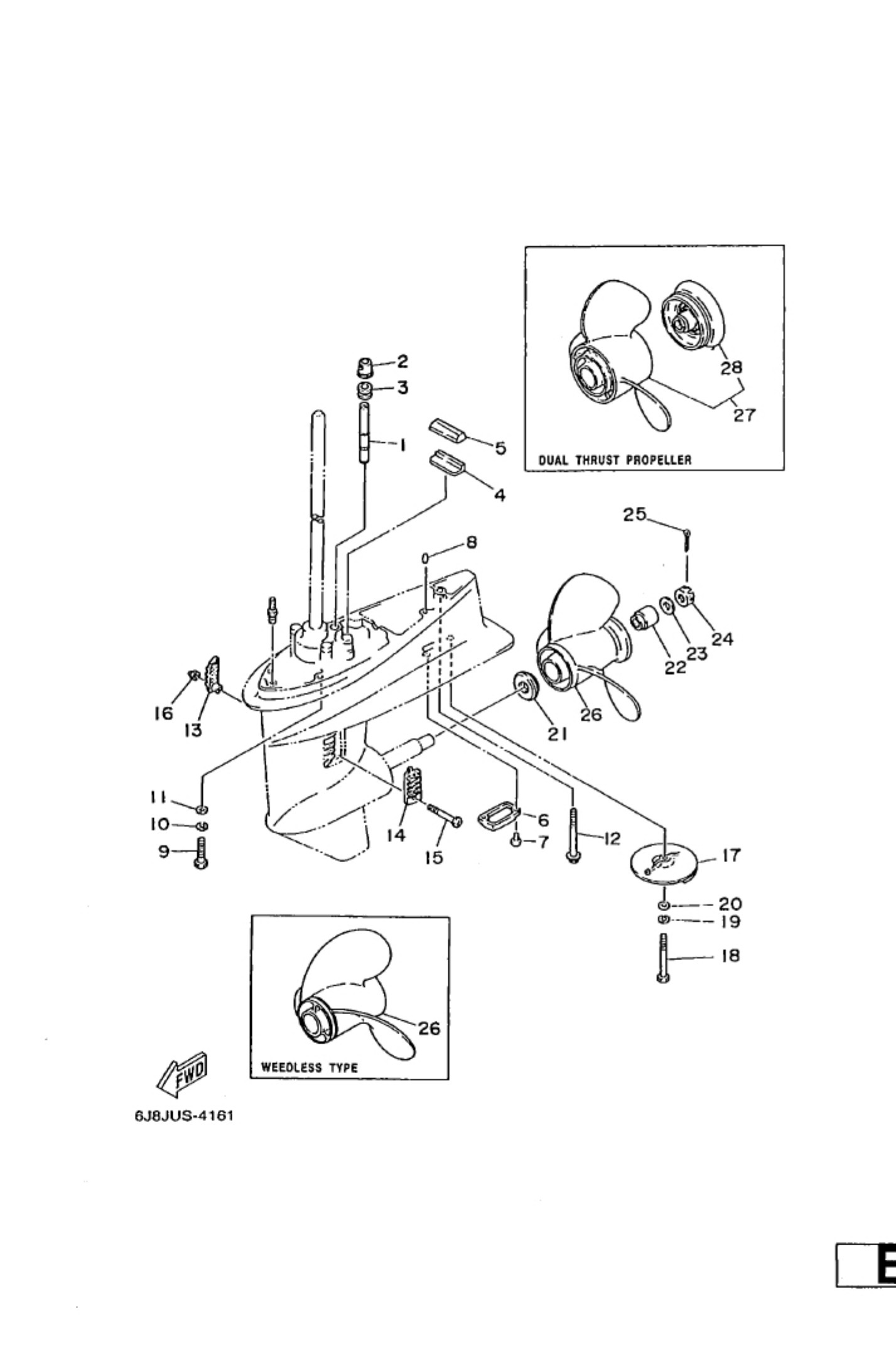

Diagram: LOWER CASING. DRIVE 2
Parts List
Reference
Description
Price
1
6J84436110
URL
Tube, water
Loading…
↗
1
6J84436100
URS
Tube, water
Loading…
↗
2
6J84435600
Damper, Water Seal
Loading…
↗
3
6634436700
Damper, water seal 3
Loading…
↗
4
663453760094
Guide, seal damper
Loading…
↗
5
6884537500
Damper, seal 2
Loading…
↗
6
6J84522410
Cover, water inlet 3
Loading…
↗
7
9788006012
Screw, pan head(62j)
Loading…
↗
8
9360612019
Pin, dowel (614)
Loading…
↗
12
9011908M92
Bolt, with washer
Loading…
↗
13
6894521401
Cover, water inlet 1
Loading…
↗
14
6J84521500
Cover, water inlet
Loading…
↗
14
15
‘SCREW, OVAL HEAD
98180-05025
Loading…
↗
16
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
17
9707508020
Bolt, hexagon
Loading…
↗
17
6644537101
Tab-trim
Loading…
↗
19
9209508100
Washer
Loading…
↗
19
6L24598701
Spacer
Loading…
↗
22
6894509700
Spacer
Loading…
↗
23
9299014200
Washer, plain
Loading…
↗
23
6J80US4161
90171-14013 NUT, CASTLE
-
Loading…
↗
25
9149030022
Pin, cotter
Loading…
↗
1
1|
{Um
Loading…
↗
1
1]
[Ur
Loading…
↗
1
664459700098
1| | URSTAINLESS STEEL,
Propeller (3x9-1/8 x13 -f)
Loading…
↗
26
6644594301EL
fur
Propeller (3x9-7/8 x8 -f)
Loading…
↗
26
6644594500EL
[ur
Propeller (3x9-7/8 x10-1/2 -f)
Loading…
↗
26
6644594701EL
|um
Propeller (3x9-7/8 x11-1/4 -f)
Loading…
↗
26
6644594902EL
1| |um
Propeller (3x9-7/8 x13 -f)
Loading…
↗
27
6J8W459100EL
1| [UR DUAL THRUST
Propeller (3x10-5/8"x8-1/4"-f)
Loading…
↗
28
6J8459861098
Ring, deflector
Loading…
↗
