55BET (2002)
LOWER CASING. DRIVE 2

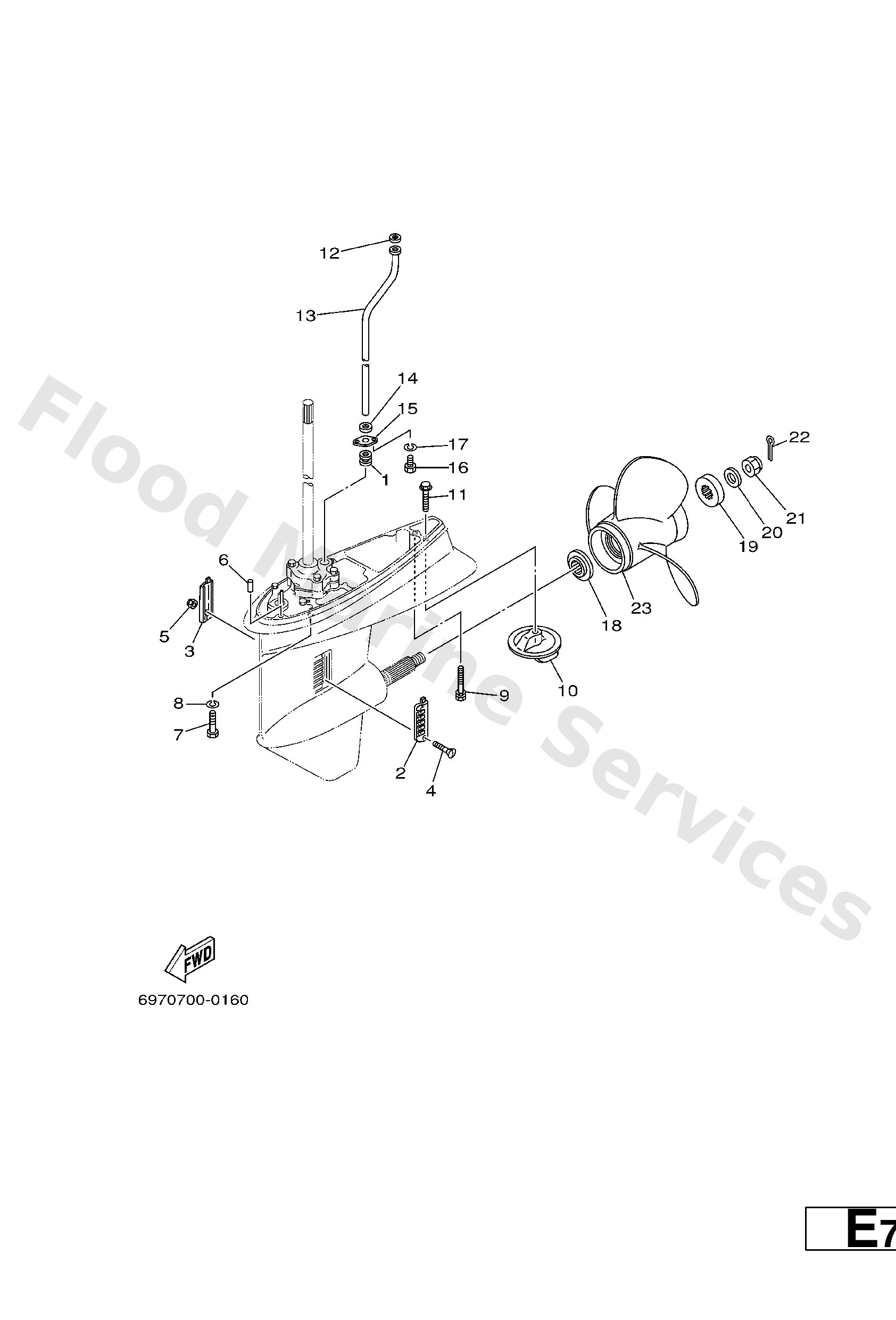

Diagram: LOWER CASING. DRIVE 2
Parts List
Reference
Description
Price
1
663--44367--00
Damper, water seal 3
Loading…
↗
2
688--45214--02
Cover, water inlet
Loading…
↗
3
688--45215--02
Cover, water inlet
Loading…
↗
4
9015205M05
Screw, countersunk
Loading…
↗
5
90185--05002
Nut nylon (sus)(ex4)
Loading…
↗
6
93606--12019
Pin, dowel (614)
Loading…
↗
7
97075--10040
Bolt, hexagon deep recess
Loading…
↗
8
92995--10100
Ybs67-10 washer, spring
Loading…
↗
9
90119--08M84
Bolt, with washer
Loading…
↗
10
6794537100
Tab trim
Loading…
↗
11
90105--10M67
Bolt, hexagon (663)
Loading…
↗
12
90202--12060
Washer, plate(663)
Loading…
↗
13
6634436110
Tube, water
Loading…
↗
14
90430--12072
Gasket
Loading…
↗
15
6634437300
Set plate, water tube
Loading…
↗
16
97095--06012
Bolt(gh1)
Loading…
↗
17
92995--06100
Washer(6a1)
Loading…
↗
18
663--45987--02
Spacer
Loading…
↗
19
670--45997--02
Spacer
Loading…
↗
20
92990--16200
958-58204-00 washer,plain
Loading…
↗
21
90171--16011
Nut, castle (663)
Loading…
↗
22
91490--40025
Pin, cotter (663)
Loading…
↗
23
663--45941--01--EL
UR
Propeller (3x10-3/4"x17"-g)
Loading…
↗
23
663--45943--02--EL
UR
Propeller (3x11 x15 -g)
Loading…
↗
23
663--45945--02--EL
UR
Propeller (3x11-1/8"x13"-g)
Loading…
↗
23
663--45947--02--EL
UR
Prop assembly (3x11-5/8"x11"-g)
Loading…
↗
23
663--45949--01--EL
UR
Propeller (3x10-3/4"x16"-g)
Loading…
↗
23
697--45970--00--98
UR
Propeller (ss 3x11-1/4"x14"-g)
Loading…
↗
23
663--45974--60--98
UR
Propeller (3x11-1/2"x13"-g)
Loading…
↗
23
663--45972--60--98
UR
Propeller (3x12"x11"-g)
Loading…
↗
23
663--45970--60--98
UR
Propeller (3x11-3/4"x12"-g)
Loading…
↗
23
663--45978--00--98
UR
Propeller (3x10-1/4"x16"-g)
Loading…
↗
23
663--45976--00--98
UR
Propeller (3x10-1/4"x15"-g)
Loading…
↗
23
663--45930--00--98
UR
Propeller (3x10-1/4"x14"-g)
Loading…
↗
23
663--45958--01--EL
UR
Propeller (3x11-1/4"x14"-g)
Loading…
↗
23
663--45956--01--EL
UR
Propeller (3x12-1/4"x9"-g)
Loading…
↗
23
663--45954--01--EL
UR
Propeller (3x11-3/4"x10"-g)
Loading…
↗
23
663--45952--02--EL
UR
Propeller (3x11-3/8x12-g)
Loading…
↗
