6DMH (2002)
LOWER CASING. DRIVE 2

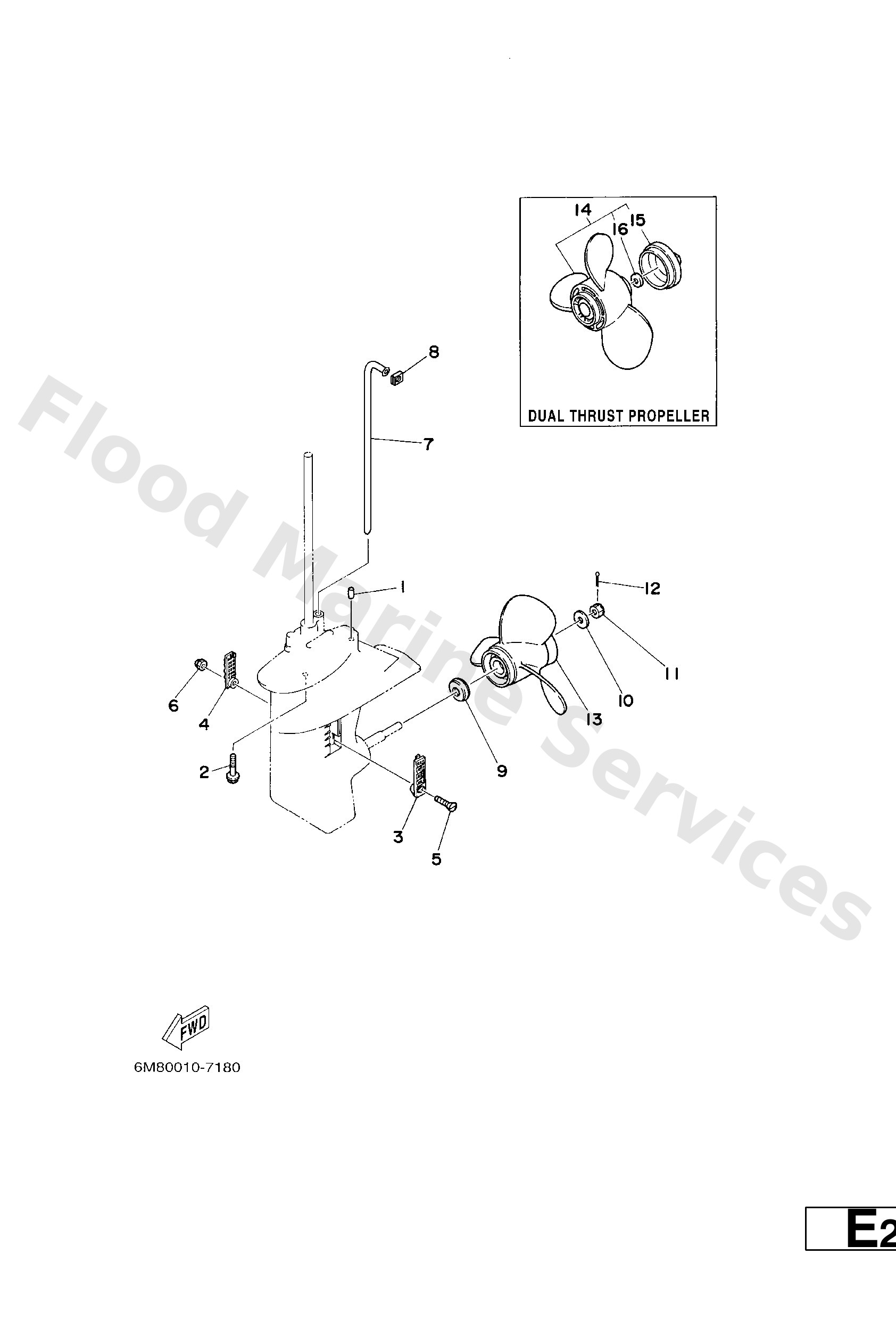

Diagram: LOWER CASING. DRIVE 2
Parts List
Reference
Description
Price
1
93604--08062
Pin,dowel (626)
Loading…
↗
2
95895--06030
Bolt, flange deep recess
Loading…
↗
3
6G1--45214--00
Cover, water inlet
Loading…
↗
4
6G1--45215--00
Cover, water inlet
Loading…
↗
5
90152--05M03
Screw, countersunk
Loading…
↗
6
90185--05002
Nut nylon (sus)(ex4)
Loading…
↗
7
6N0G436120
X
Tube, Water
Loading…
↗
7
6N0--G4361--10
L
Tube, water 1
Loading…
↗
7
6N0--G4361--00
S
Tube, water 1
Loading…
↗
8
6G1--44365--00
Damper, water seal 1
Loading…
↗
9
6N0--G5987--00
UR
Spacer
Loading…
↗
9
6N0--G5987--10
UR
Spacer
Loading…
↗
10
90201--10M01
Washer, plate(6m7)
Loading…
↗
11
90171--10M01
Nut castle (683)
Loading…
↗
12
91490--30020
Pin cotter
Loading…
↗
15
6G1--45616--01
Nut, propeller
Loading…
↗
16
90201--10M02
Washer, plate(6g9)
Loading…
↗
