75CETO (2003)
LOWER CASING. DRIVE 2

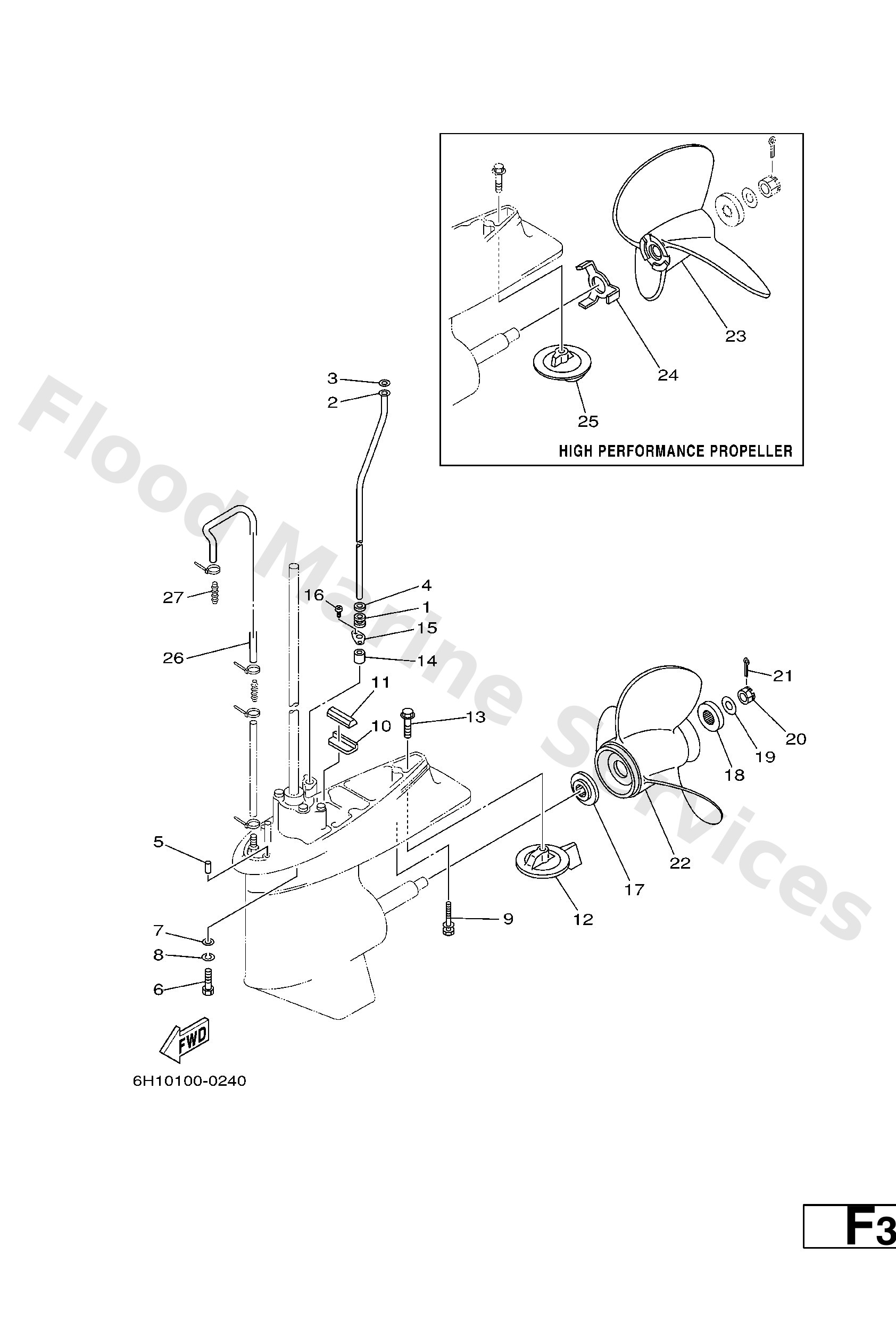

Diagram: LOWER CASING. DRIVE 2
Parts List
Reference
Description
Price
1
663--44367--00
Damper, water seal 3
Loading…
↗
2
688--44361--10
L
Tube, water 1
Loading…
↗
3
90202--12060
Washer, plate(663)
Loading…
↗
4
90430--12072
Gasket
Loading…
↗
5
93606--12019
Pin, dowel (614)
Loading…
↗
6
97075--10040
Bolt, hexagon deep recess
Loading…
↗
7
92990--10600
Washer, plate
Loading…
↗
8
92990--10100
Ybs67-10 washer, spring
Loading…
↗
9
90119--08M84
Bolt, with washer
Loading…
↗
10
663--45376--00--94
Guide, seal damper
Loading…
↗
11
688--45375--00
Damper, seal 2
Loading…
↗
12
688--45371--02
Tab-trim
Loading…
↗
13
90105--10M67
Bolt, hexagon (663)
Loading…
↗
14
663--44366--00
Damper, water seal 2
Loading…
↗
15
90480--19M06
Grommet (688)
Loading…
↗
16
97780--40512
Screw, pan head tapping
Loading…
↗
17
688--45987--01
Spacer
Loading…
↗
18
688--45997--01
Spacer 2
Loading…
↗
19
90201--17M00
Washer, plate(6h1)
Loading…
↗
20
90171--16011
Nut, castle (663)
Loading…
↗
21
91490--40025
Pin, cotter (663)
Loading…
↗
22
6E5--45952--00--EL
UR
Propeller (3x13"x23"-k)
Loading…
↗
22
6E5--45943--00--EL
UR
Propeller (3x12-5/8"x21"-k)
Loading…
↗
22
6E5--45949--00--EL
UR
Propeller (3x13-5/8"x13"-k)
Loading…
↗
22
6E5--45945--01--EL
UR
Propeller (3x13-1/4x17-k)
Loading…
↗
22
6E5--45941--00--EL
UR
Propeller (3x13x19-k)
Loading…
↗
22
6E5--45947--00--EL
UR
Propeller (3x13-1/2x15-k)
Loading…
↗
22
688--45932--60--98
UR
Propeller (3x13-1/2"x14"-k)
Loading…
↗
22
688--45978--60--98
UR
Propeller (3x13-1/2"x16"-k)
Loading…
↗
22
688--45976--01--98
UR
Propeller (ss 3x13"x25"-k)
Loading…
↗
22
688--45974--02--98
UR
Propeller (3x13"x23"-k)
Loading…
↗
22
688--45972--02--98
UR
Propeller (3x13"x21"-k)
Loading…
↗
22
688--45970--03--98
UR
Propeller (3x13"x19"-k)
Loading…
↗
22
688--45930--02--98
UR
Propeller (3x13x17)
Loading…
↗
22
6E5--45956--00--EL
UR
Propeller (3x13"x25"-k)
Loading…
↗
22
6E5--45954--00--EL
UR
Propeller (3x14"x11"-k)
Loading…
↗
23
6E5--45970--10
UR
Propeller (ss 3x14"x20"-p)
Loading…
↗
23
6E5--45972--10
UR
Propeller (ss 3x14"x24"-p)
Loading…
↗
23
6E5--45974--10
UR
Propeller (ss 3x14"x28"-p)
Loading…
↗
23
6E5--45976--10
UR
Propellar assembly (3x14"x22"-p)
Loading…
↗
23
6E5--45978--10
UR
Propeller assembly (3x14"x26"-p)
Loading…
↗
24
6E5--45994--10
Plate, tooth
Loading…
↗
25
6E5--45371--10
Tab-trim
Loading…
↗
26
90445--07MF1
Hose (l570)
Loading…
↗
27
6E5--83558--00
End, nipple
Loading…
↗
