E40XMH (2002)
LOWER CASING. DRIVE 2

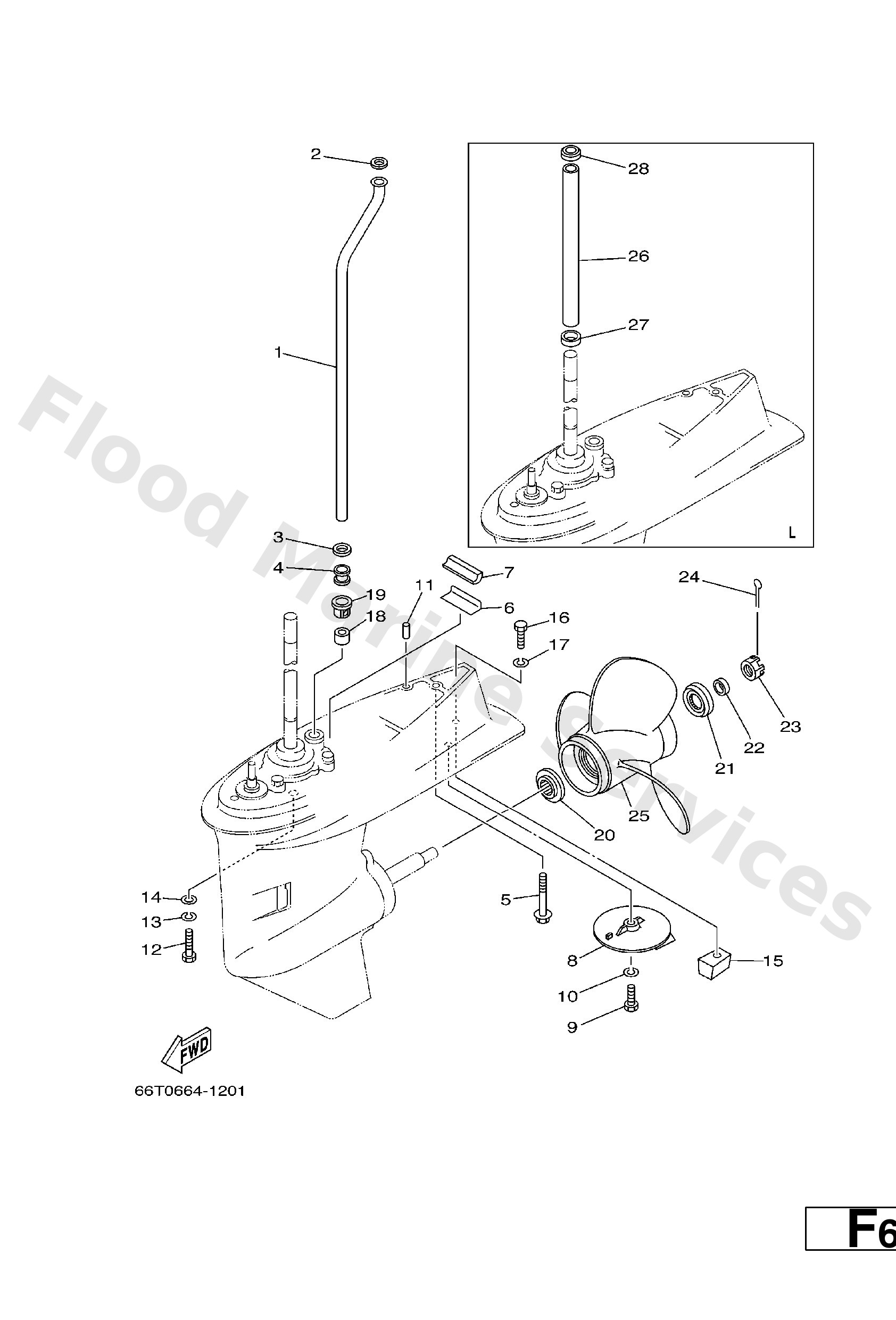

Diagram: LOWER CASING. DRIVE 2
Parts List
Reference
Description
Price
1
66T--44361--10
L
Tube, water
Loading…
↗
1
66T4436100
S
Tube, water
Loading…
↗
2
90202--12060
Washer, plate(663)
Loading…
↗
3
90430--12072
Gasket
Loading…
↗
4
663--44367--00
Damper, water seal 3
Loading…
↗
5
9011908M44
Bolt, with washer
Loading…
↗
6
663--45376--00
Guide, seal damper
Loading…
↗
7
63D--45375--00
Damper, seal
Loading…
↗
8
664--45371--01
Tab-trim
Loading…
↗
9
97095--08025
Bolt (62g)
Loading…
↗
10
92995--08100
Ybs67-8 washer, spring
Loading…
↗
11
93606--12019
Pin, dowel (614)
Loading…
↗
12
97075--10040
Bolt, hexagon deep recess
Loading…
↗
13
92995--10100
Ybs67-10 washer, spring
Loading…
↗
14
92995--10600
Washer, plate
Loading…
↗
15
67C--45251--00
Anode
Loading…
↗
16
97095--08035
Bolt(70w)
Loading…
↗
18
663--44366--00
Damper, water seal 2
Loading…
↗
19
63D--44312--00
Cover, water pump housing
Loading…
↗
20
663--45987--02
Spacer
Loading…
↗
21
66T--45997--00
Spacer 2
Loading…
↗
22
90389--22M01
Bush
Loading…
↗
23
90171--16011
Nut, castle (663)
Loading…
↗
24
91490--30025
Pin cotter
Loading…
↗
25
63D4594100EL
UR
Propeller (3x12-1/4 x8 -g)
Loading…
↗
25
663--45930--00--98
UR
Propeller (3x10-1/4"x14"-g)
Loading…
↗
26
66T--44362--10
L
Tube, water 2
Loading…
↗
27
90480--25M70
L
Grommet
Loading…
↗
28
90480--30M71
L
Grommet
Loading…
↗
