E40XMH (2003)
LOWER CASING. DRIVE 2

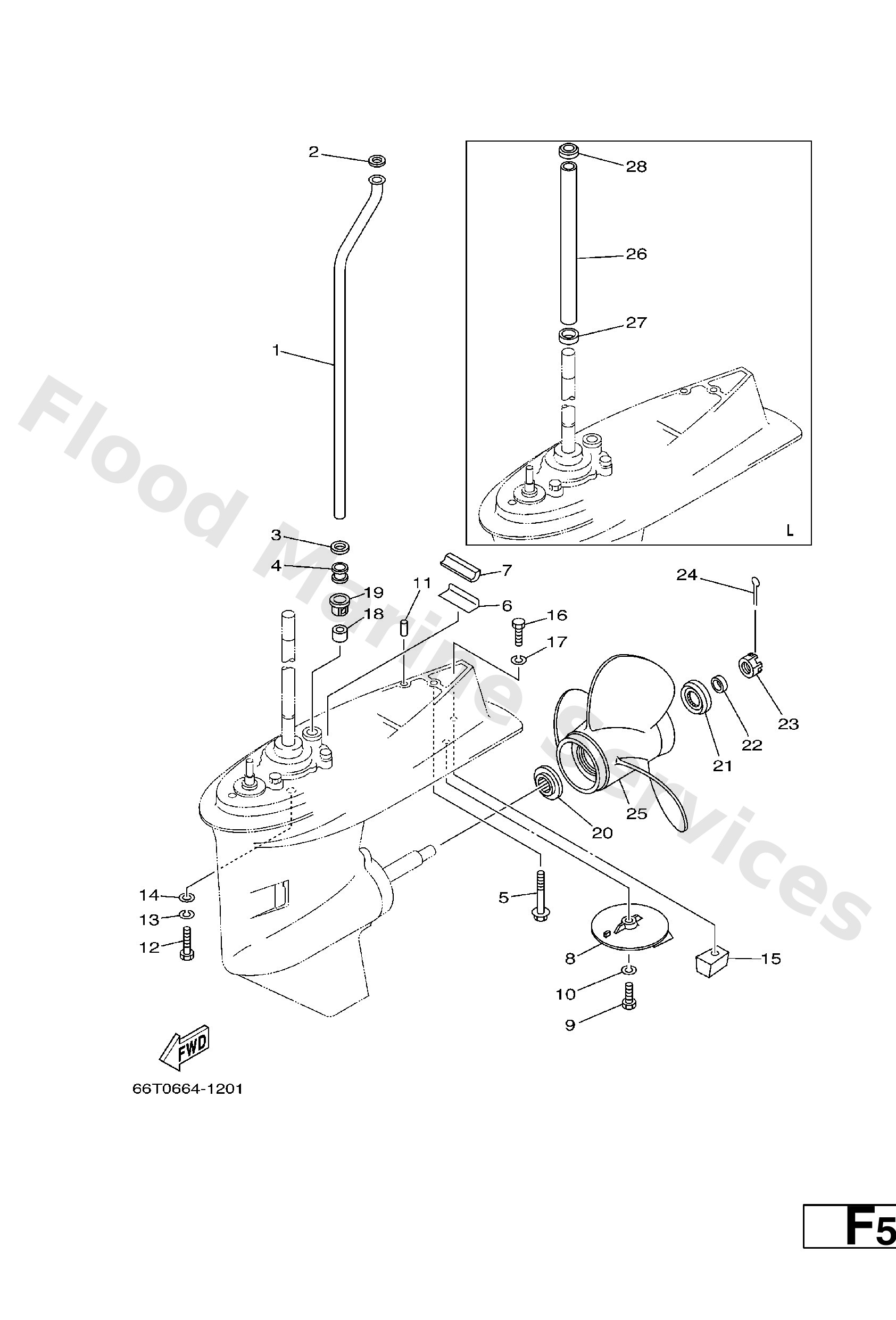

Diagram: LOWER CASING. DRIVE 2
Parts List
Reference
Description
Price
1
66T−44361−10
L
Tube, water
Loading…
↗
2
90202−12060
Washer, plate(663)
Loading…
↗
3
90430−12072
Gasket
Loading…
↗
4
663−44367−00
Damper, water seal 3
Loading…
↗
5
90119−08M44
Bolt, with washer
Loading…
↗
7
63D−45375−00
Damper, seal
Loading…
↗
8
664−45371−01
Tab-trim
Loading…
↗
9
97095−08025
Bolt (62g)
Loading…
↗
10
92995−08100
Ybs67-8 washer, spring
Loading…
↗
11
93606−12019
Pin, dowel (614)
Loading…
↗
12
97075−10040
Bolt, hexagon deep recess
Loading…
↗
13
92995−10100
Ybs67-10 washer, spring
Loading…
↗
14
92995−10600
Washer, plate
Loading…
↗
15
67C−45251−00
Anode
Loading…
↗
16
97095−08035
Bolt(70w)
Loading…
↗
18
663−44366−00
Damper, water seal 2
Loading…
↗
19
63D−44312−00
Cover, water pump housing
Loading…
↗
20
663−45987−02
Spacer
Loading…
↗
21
66T−45997−00
Spacer 2
Loading…
↗
22
90389−22M01
Bush
Loading…
↗
23
90171−16011
Nut, castle (663)
Loading…
↗
24
91490−30025
Pin cotter
Loading…
↗
25
663−45958−01−EL
UR
Propeller (3x11-1/4"x14"-g)
Loading…
↗
25
663−45974−60−98
UR
Propeller (3x11-1/2"x13"-g)
Loading…
↗
25
663−45972−60−98
UR
Propeller (3x12"x11"-g)
Loading…
↗
25
663−45970−60−98
UR
Propeller (3x11-3/4"x12"-g)
Loading…
↗
25
663−45978−00−98
UR
Propeller (3x10-1/4"x16"-g)
Loading…
↗
25
663−45976−00−98
UR
Propeller (3x10-1/4"x15"-g)
Loading…
↗
25
663−45930−00−98
UR
Propeller (3x10-1/4"x14"-g)
Loading…
↗
25
663−45956−01−EL
UR
Propeller (3x12-1/4"x9"-g)
Loading…
↗
25
663−45954−01−EL
UR
Propeller (3x11-3/4"x10"-g)
Loading…
↗
25
663−45952−02−EL
UR
Propeller (3x11-3/8x12-g)
Loading…
↗
25
663−45949−01−EL
UR
Propeller (3x10-3/4"x16"-g)
Loading…
↗
25
663−45941−01−EL
UR
Propeller (3x10-3/4"x17"-g)
Loading…
↗
25
63D−45941−00−EL
UR
Propeller (3x12-1/4 x8 -g)
Loading…
↗
26
66T−44362−10
L
Tube, water 2
Loading…
↗
27
90480−25M70
L
Grommet
Loading…
↗
28
90480−30M71
L
Grommet
Loading…
↗
