EK9.9HMH (2003)
LOWER CASING. DRIVE 2

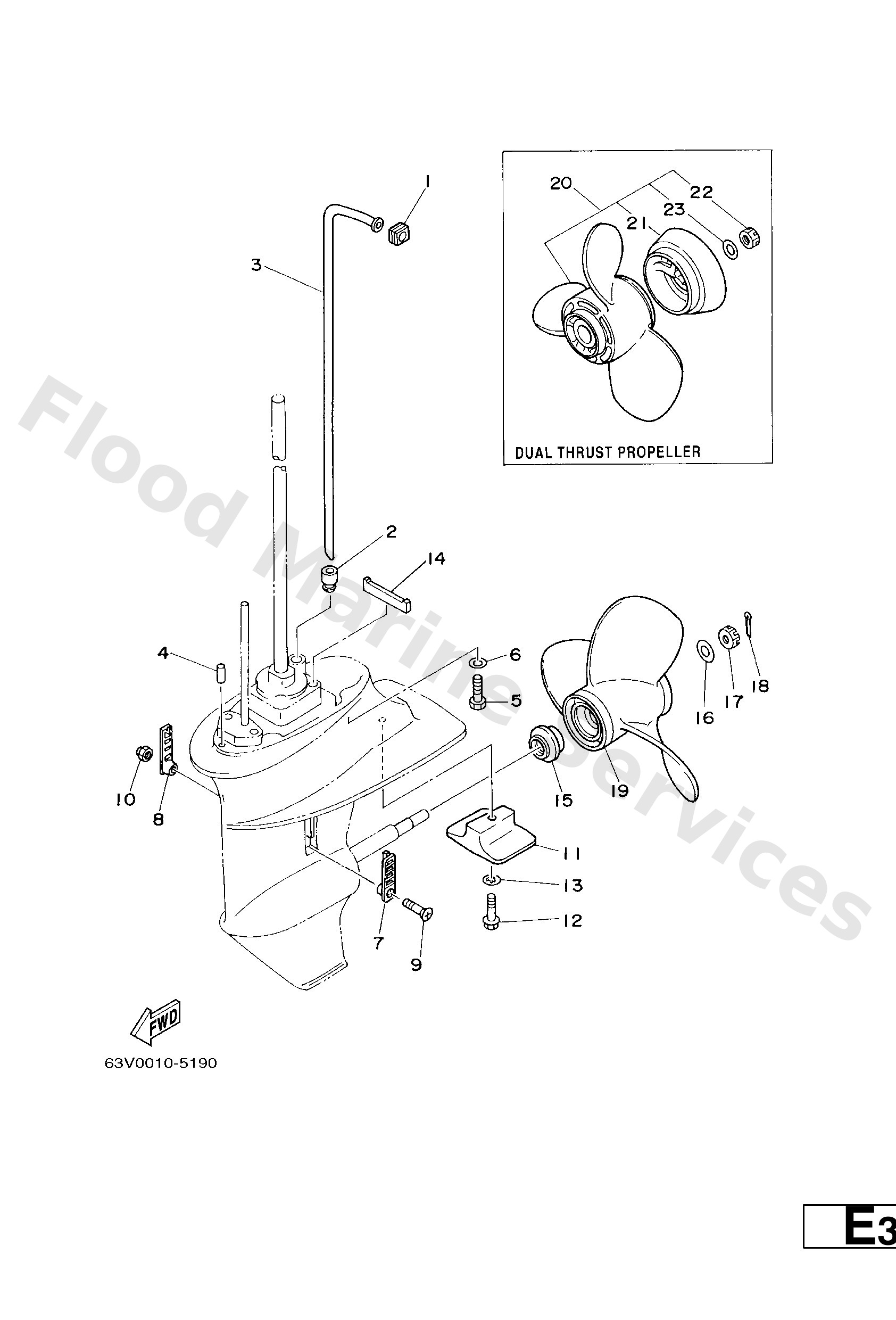

Diagram: LOWER CASING. DRIVE 2
Parts List
Reference
Description
Price
1
63V−44365−10
Damper, water seal 1
Loading…
↗
2
63V−44368−00
Rubber, water seal 4
Loading…
↗
3
63V−44361−01
S
Tube, water
Loading…
↗
3
63V−44361−11
L
Tube, water
Loading…
↗
4
93604−12M07
Pin, dowel (688)
Loading…
↗
5
97075−08030
Bolt, hexagon (fj1)
Loading…
↗
6
92995−08600
Washer, plain (663)
Loading…
↗
7
6G1−45214−00
Cover, water inlet
Loading…
↗
8
63V−45215−00
Cover, water inlet
Loading…
↗
9
90152−05M04
Screw, countersunk
Loading…
↗
10
90185−05002
Nut nylon (sus)(ex4)
Loading…
↗
11
61N−45251−01
Anode
Loading…
↗
12
95895−06030
Bolt, flange deep recess
Loading…
↗
13
92990−06300
Washer, tooth
Loading…
↗
14
63V−45375−00
Damper, seal
Loading…
↗
15
6E7−45987−01
Spacer
Loading…
↗
16
90201−10M01
Washer, plate(6m7)
Loading…
↗
17
90171−10M01
Nut castle (683)
Loading…
↗
18
91490−30020
Pin cotter
Loading…
↗
19
683−45941−00−EL
UR
Propeller (3x9-1/4"x12"-j)
Loading…
↗
19
683−45943−00−EL
UR
Propeller (3x9-1/4"x10-1/2"-j)
Loading…
↗
19
683−45945−00−EL
UR
Propeller (3X9−1/4”X9”−J)
Loading…
↗
19
683−45947−00−EL
UR
Propeller (3X9−1/4”X8”−J)
Loading…
↗
19
683−45949−00−EL
UR
Propeller (3x9-1/2"x6-1/2"-j)
Loading…
↗
19
683−45952−00−EL
UR
Propeller (3X9−1/4”X9−3/4”−J)
Loading…
↗
19
63V−45947−00−EL
UR
Propeller (3x9-1/4 x8 -j)
Loading…
↗
21
6E7−45986−00
Ring, deflector
Loading…
↗
22
90171−10M07
Nut, castle(6g8)
Loading…
↗
23
90201−10M02
Washer, plate(6g9)
Loading…
↗
