F25AMH (2003)
LOWER CASING. DRIVE 2

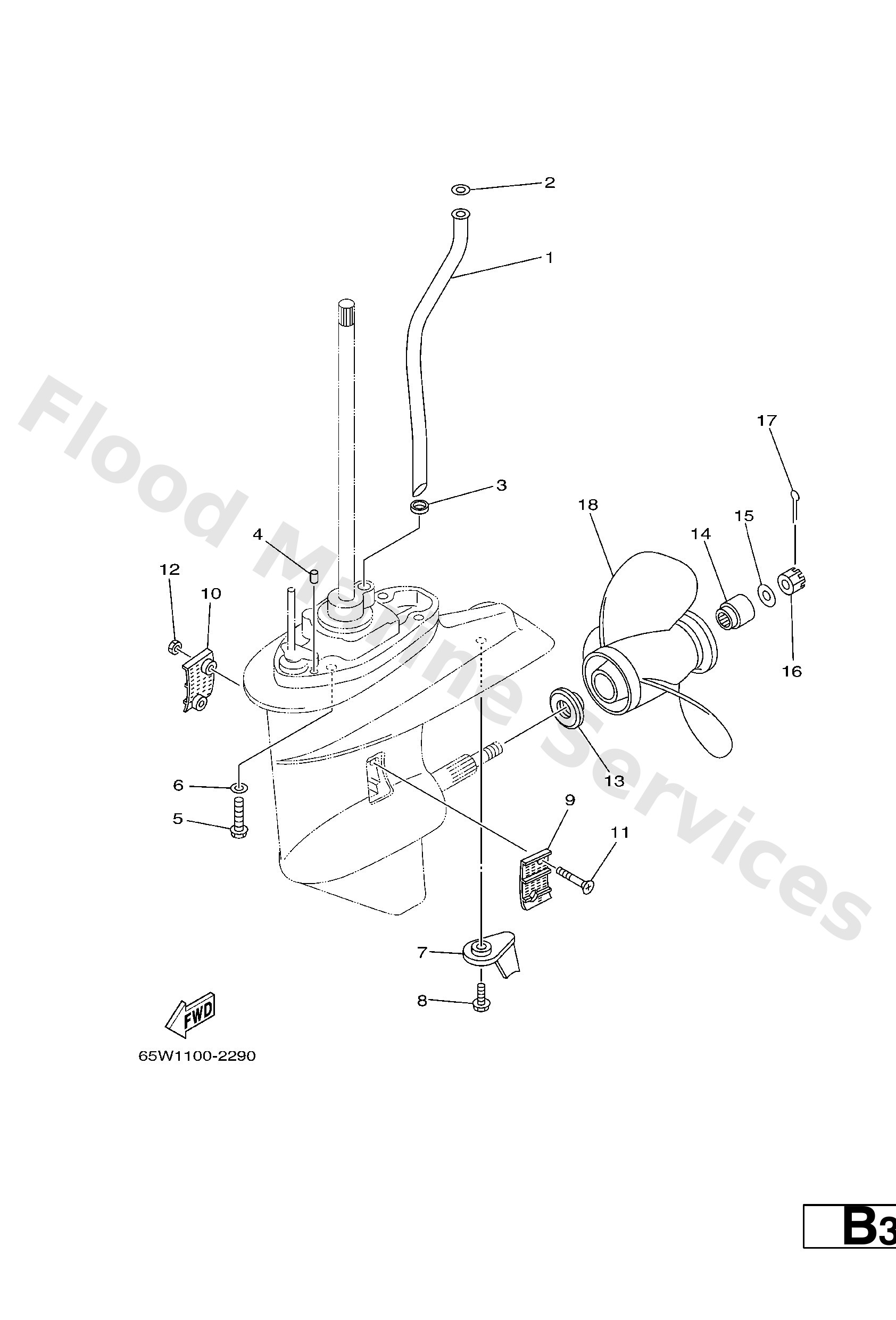

Diagram: LOWER CASING. DRIVE 2
Parts List
Reference
Description
Price
1
65W−44361−11
L
Tube, water
Loading…
↗
1
65W−44361−01
S
Tube, water
Loading…
↗
2
90202−12060
Washer, plate(663)
Loading…
↗
3
90430−10002
Gasket
Loading…
↗
4
93606−11M24
Pin, dowel
Loading…
↗
5
90105−10M12
Bolt (689)
Loading…
↗
6
92995−10600
Washer, plate
Loading…
↗
7
61N−45371−00
Tab-trim
Loading…
↗
8
90119−06M48
Bolt, with washer(61n)
Loading…
↗
9
6L2−45214−00
Cover, water inlet
Loading…
↗
10
6L2−45215−00
Cover, water inlet
Loading…
↗
11
90151−05M05
Screw, countersunk
Loading…
↗
12
90185−05002
Nut nylon (sus)(ex4)
Loading…
↗
13
6L2−45987−01
Spacer
Loading…
↗
14
689−45997−00
Spacer
Loading…
↗
15
92990−14200
Washer, plain
Loading…
↗
16
90171−14013
Nut(664)
Loading…
↗
17
91490−30022
Pin, cotter
Loading…
↗
18
664−45941−01−EL
UR
Propeller (3x9-7/8"x9"-f)
Loading…
↗
18
664−45943−01−EL
UR
Propeller (3x9-7/8 x8 -f)
Loading…
↗
18
664−45945−00−EL
UR
Propeller (3x9-7/8 x10-1/2 -f)
Loading…
↗
18
664−45947−01−EL
UR
Propeller (3x9-7/8 x11-1/4 -f)
Loading…
↗
18
664−45949−02−EL
UR
Propeller (3x9-7/8 x13 -f)
Loading…
↗
18
664−45952−00−EL
UR
Propeller (3x9-7/8 x14 -f)
Loading…
↗
18
664−45954−00−EL
UR
Propeller (3x9-7/8 x12 -f)
Loading…
↗
18
664−45970−00−98
UR STAINLESS STEEL,
Propeller (3x9-1/8 x13 -f)
Loading…
↗
18
664−45972−00−98
UR STAINLESS STEEL,
Propeller (3x9-1/8 x12 -f)
Loading…
↗
