F4AMH (2003)
LOWER CASING. DRIVE 2

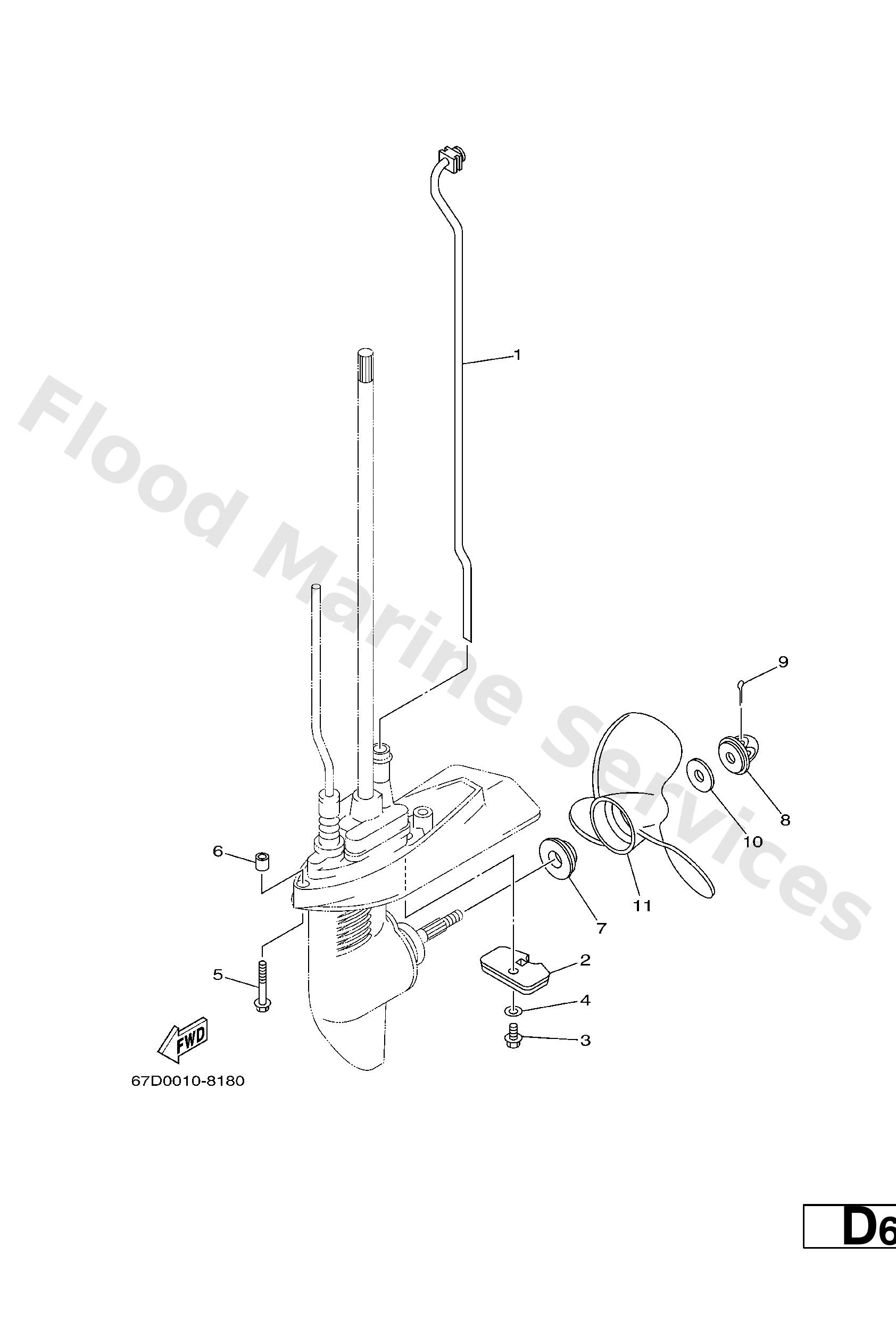

Diagram: LOWER CASING. DRIVE 2
Parts List
Reference
Description
Price
1
68D−G4360−00
S
Water Tube assembly
Loading…
↗
1
68D−G4360−10
L
Water tube assembly
Loading…
↗
2
68D−G5251−00
Anode
Loading…
↗
3
95895−06012
Bolt, flange deep recess
Loading…
↗
4
92990−06300
Washer, tooth
Loading…
↗
5
90119−06M40
S
Bolt, with washer
Loading…
↗
6
90387−06806
Collar(6e0)
Loading…
↗
7
68D−G5987−00
Spacer 1
Loading…
↗
8
6L5−45616−00
Nut, propeller
Loading…
↗
9
91490−25030
Pin, cotter(6l5)
Loading…
↗
10
90201−08M54
Washer, plate (6e5)
Loading…
↗
11
6E0−45941−01−EL
UR
Propeller (3x7-1/2 x8 -ba)
Loading…
↗
11
6E0−45943−01−EL
UR
Propeller (3x7-1/2"x7"-ba)
Loading…
↗
11
6E0−45949−00−EL
UR
Propeller (3x7-1/4 x6-1/2 -ba)
Loading…
↗
