Yamaha Outboard Parts - LOWER CASING. DRIVE 2 - F6AMH (2003) | Flood Marine

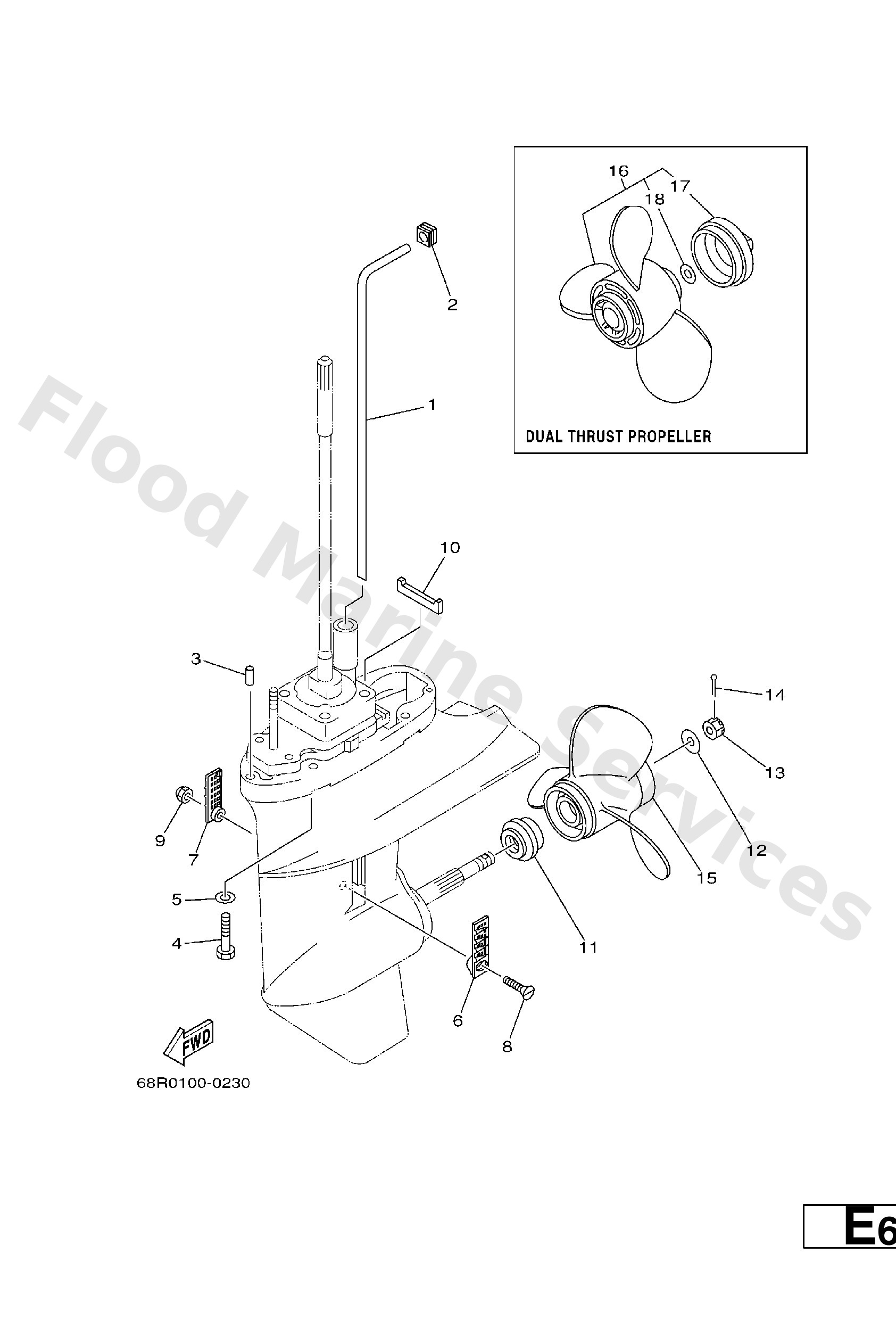

Diagram: LOWER CASING. DRIVE 2

Diagram

Parts List

Reference
Description
Price


1
68T−44361−10 L
Tube, water 1
Loading…

↗
1
68T−44361−00 S
Tube, water 1
Loading…

↗
2
63V−44365−10
Damper, water seal 1
Loading…

↗
3
93604−12M07
Pin, dowel (688)
Loading…

↗
4
97075−08035
Bolt(70w)
Loading…

↗
5
92995−08600
Washer, plain (663)
Loading…

↗
6
6G1−45214−00
Cover, water inlet
Loading…

↗
7
6G1−45215−00
Cover, water inlet
Loading…

↗
8
90152−05M03
Screw, countersunk
Loading…

↗
9
90185−05002
Nut nylon (sus)(ex4)
Loading…

↗
10
63V−45375−00
Damper, seal
Loading…

↗
11
6G1−45987−02
Spacer
Loading…

↗
12
90201−10M01
Washer, plate(6m7)
Loading…

↗
13
90171−10M01
Nut castle (683)
Loading…

↗
14
91490−30020
Pin cotter
Loading…

↗
17
6G1−45616−01
Nut, propeller
Loading…

↗
18
90201−10M02
Washer, plate(6g9)
Loading…

↗
