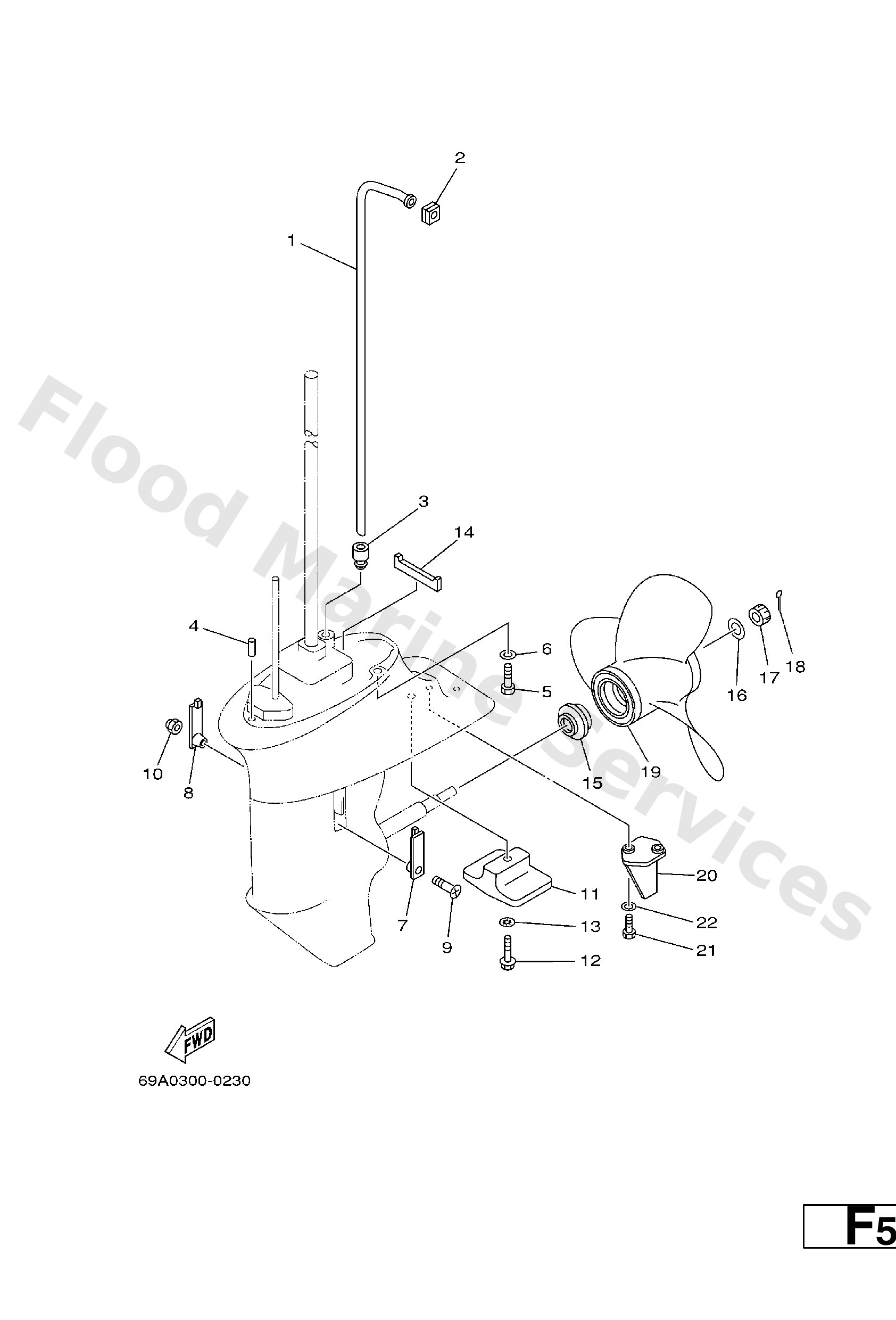

Diagram: LOWER CASING. DRIVE 2

Diagram

Parts List

Reference
Description
Price


1
66M−44361−10 L
Tube, water
Loading…

↗
1
66M−44361−00 S
23 −
Loading…

↗
2
63V−44365−10
Damper, water seal 1
Loading…

↗
3
63V−44368−00
Rubber, water seal 4
Loading…

↗
4
93604−12M07
Pin, dowel (688)
Loading…

↗
5
97075−08030
Bolt, hexagon (fj1)
Loading…

↗
6
92995−08600
Washer, plain (663)
Loading…

↗
7
6G1−45214−00
Cover, water inlet
Loading…

↗
8
63V−45215−00
Cover, water inlet
Loading…

↗
9
90152−05M04
Screw, countersunk
Loading…

↗
10
90185−05002
Nut nylon (sus)(ex4)
Loading…

↗
11
61N−45251−01
Anode
Loading…

↗
12
95895−06030
Bolt, flange deep recess
Loading…

↗
13
92990−06300
Washer, tooth
Loading…

↗
14
63V−45375−00
Damper, seal
Loading…

↗
15
6E7−45987−01
Spacer
Loading…

↗
16
90201−10M01
Washer, plate(6m7)
Loading…

↗
17
90171−10M01
Nut castle (683)
Loading…

↗
18
91490−30020
Pin cotter
Loading…

↗
19
63V−45945−00−EL UR
Propeller (3x9-1/4 x9 -j1)
Loading…

↗
19
63V−45947−00−EL UR
Propeller (3x9-1/4 x8 -j)
Loading…

↗
19
683−45941−00−EL UR
Propeller (3x9-1/4"x12"-j)
Loading…

↗
19
683−45943−00−EL UR
Propeller (3x9-1/4"x10-1/2"-j)
Loading…

↗
19
683−45945−00−EL UR
Propeller (3X9−1/4”X9”−J)
Loading…

↗
19
683−45952−00−EL UR
Propeller (3X9−1/4”X9−3/4”−J)
Loading…

↗
20
66M−45371−00 S
Tab-trim
Loading…

↗
21
97095−06016 S
Bolt, hexagon deep recess
Loading…

↗
22
92995−06600 S
Washer, plain (646)
Loading…

↗
