Yamaha Outboard Parts - LOWER CASING. DRIVE 2 - FT9.9DEP (2002) | Flood Marine

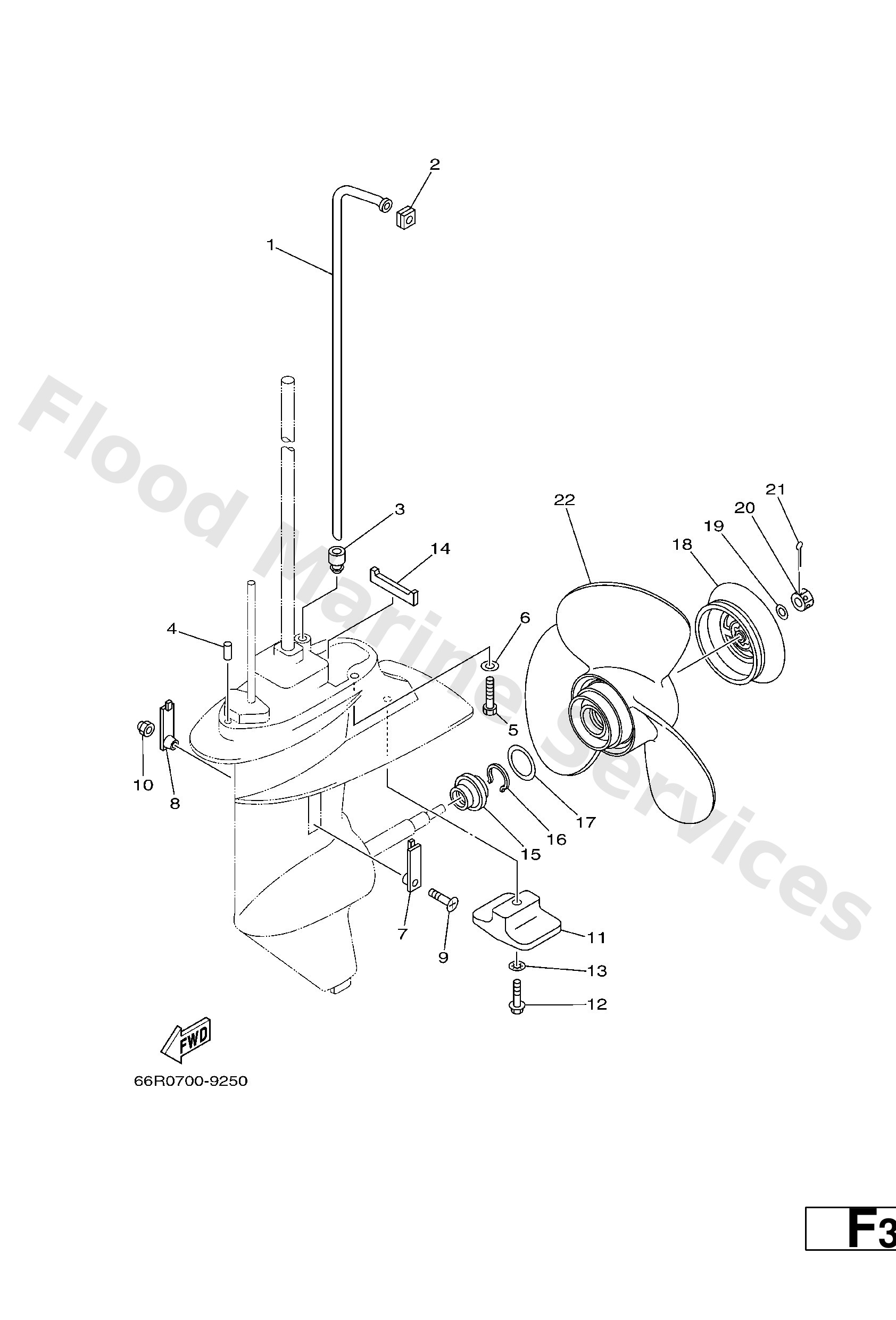

Diagram: LOWER CASING. DRIVE 2

Diagram

Parts List

Reference
Description
Price


1
66R−44361−20 X
25 −
Loading…

↗
1
66M−44361−10 L
Tube, water
Loading…

↗
2
63V−44365−10
Damper, water seal 1
Loading…

↗
3
63V−44368−00
Rubber, water seal 4
Loading…

↗
4
93604−12M07
Pin, dowel (688)
Loading…

↗
5
97075−08035 L
Bolt(70w)
Loading…

↗
6
92995−08600 L
Washer, plain (663)
Loading…

↗
7
6G1−45214−00
Cover, water inlet
Loading…

↗
8
63V−45215−00
Cover, water inlet
Loading…

↗
9
90152−05M04
Screw, countersunk
Loading…

↗
10
90185−05002
Nut nylon (sus)(ex4)
Loading…

↗
11
61N−45251−01
Anode
Loading…

↗
12
95895−06030
Bolt, flange deep recess
Loading…

↗
13
92990−06300
Washer, tooth
Loading…

↗
14
63V−45375−00
Damper, seal
Loading…

↗
15
6G8−45987−02
Spacer
Loading…

↗
16
93450−10M04
Circlip(6g8)
Loading…

↗
17
90201−31MA3
Washer, plate (6g8)
Loading…

↗
18
6G8−45986−00
Ring, deflector
Loading…

↗
19
90201−10M02
Washer, plate(6g9)
Loading…

↗
20
90171−10M07
Nut, castle(6g8)
Loading…

↗
21
91490−30025
Pin cotter
Loading…

↗
22
6G8−45941−00 UR
Propeller (pa 3x11-3/4"x11"-r)
Loading…

↗
22
6G8−45943−00 UR
Propeller (pa 3x11-3/4"x9-1/4"
Loading…

↗
22
6G8−45945−00 UR
Propeller (pa 3x11-3/4"x12-1/4
Loading…

↗
22
6G8−45947−00−EL UR ALUMINIUM
Propeller (3x11-3/4"x9-1/4"-r)
Loading…

↗
