Z200NETO (2002)
LOWER CASING. DRIVE 2

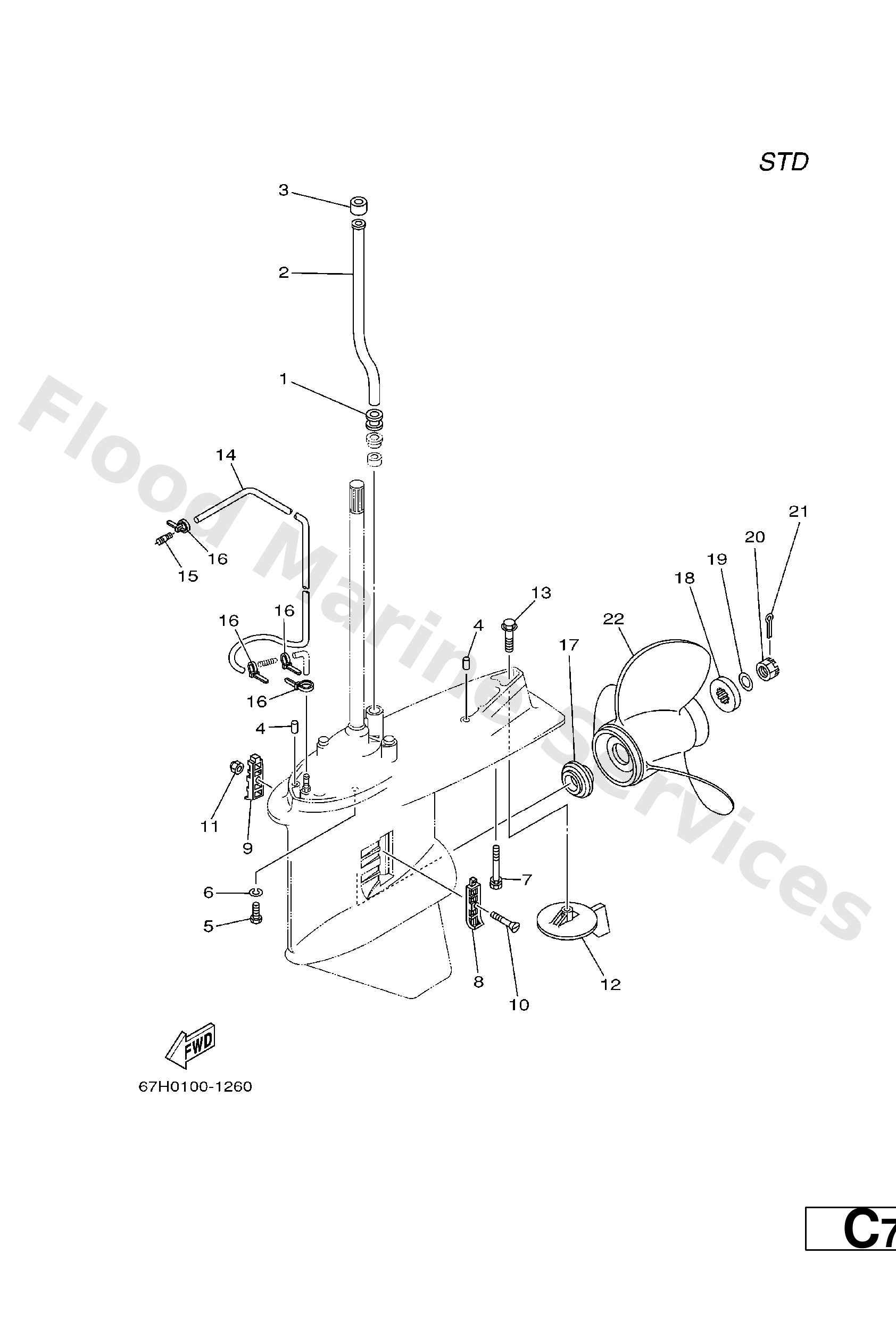

Diagram: LOWER CASING. DRIVE 2
Parts List
Reference
Description
Price
1
6E5--44366--00
Damper, water seal 2
Loading…
↗
2
6E5--44361--00
L
Tube, water
Loading…
↗
2
6E5--44361--20
X
Tube, water
Loading…
↗
3
6E5--44365--00
Damper, water seal 1
Loading…
↗
4
93608--12M05
Pin, dowel b (6e5)
Loading…
↗
5
97075--10045
Bolt(64d)
Loading…
↗
6
92995--10100
Ybs67-10 washer, spring
Loading…
↗
7
90119--10M89
Bolt, with washer
Loading…
↗
8
6J9--45214--00
Cover, water inlet
Loading…
↗
9
6J9--45215--00
Cover, water inlet
Loading…
↗
10
90152--05M08
Screw, countersunk
Loading…
↗
11
90185--05002
Nut nylon (sus)(ex4)
Loading…
↗
12
6J9--45371--01
Tab-trim
Loading…
↗
13
90105--10M00
Bolt, hexagon (663)
Loading…
↗
14
90445--07M33
Hose (L1080)
Loading…
↗
15
6E5--83558--00
End, nipple
Loading…
↗
16
90465--11M10
Clamp
Loading…
↗
17
6E5--45987--01
Spacer 1
Loading…
↗
18
688--45997--01
Spacer 2
Loading…
↗
19
92990--18200
Washer (6e5)
Loading…
↗
20
90171--18M04
Nut, castle (6e5)
Loading…
↗
21
91490--40030
Pin, cotter (663)
Loading…
↗
22
6G5--45941--00--98
UR
Propeller (3x15-1/4x15-m)
Loading…
↗
22
6G5--45943--01--98
UR
Propeller (3x13-3/4"x21"-m)
Loading…
↗
22
6G5--45945--01--98
UR
Propeller (3x14"x19"-m)
Loading…
↗
22
6G5--45947--01--98
UR
Propeller (3x14-1/2"x17"-m)
Loading…
↗
22
6G5--45949--00--98
UR
Propeller (3x13-1/2"x23"-m)
Loading…
↗
22
6R4--45978--A0
UR
Propeller (3X15−1/4”X17”−M)
Loading…
↗
22
6R4--45976--A0
UR
Propeller (3X14−1/2”X15”−M)
Loading…
↗
22
6R4--45974--A0
UR
Propeller (3X14−1/2”X23”−M)
Loading…
↗
22
6R4--45972--A0
UR
Propeller (3X14−7/8”X21”−M)
Loading…
↗
22
6R4--45970--A0
UR
Propeller (3X15−1/4”X19”−M)
Loading…
↗
22
6G5--45978--03--98
UR
Propeller (3x13-3/4"x17"-m2)
Loading…
↗
22
6G5--45976--01--98
UR
Propeller (3x13-3/8"x23"-m)
Loading…
↗
22
6G5--45974--03--98
UR
Propeller (3x13-3/4"x19"-m2)
Loading…
↗
22
6G5--45972--02--98
UR
Propeller (3x13-3/4 x21 -m)
Loading…
↗
22
6G5--45970--02--98
UR
Propeller (3x15-1/4 x15 -m)
Loading…
↗
22
6G5--45932--00--98
UR
Propeller (3x15-3/4"x13"-m)
Loading…
↗
22
6G5--45930--00--98
UR
Propeller (ss 3x13-3/8"x25"-m)
Loading…
↗
22
6G5--45952--00--98
UR
Propeller (3x14-5/8"x16"-m)
Loading…
↗
