Z250FETO (2003)
LOWER CASING. DRIVE 2

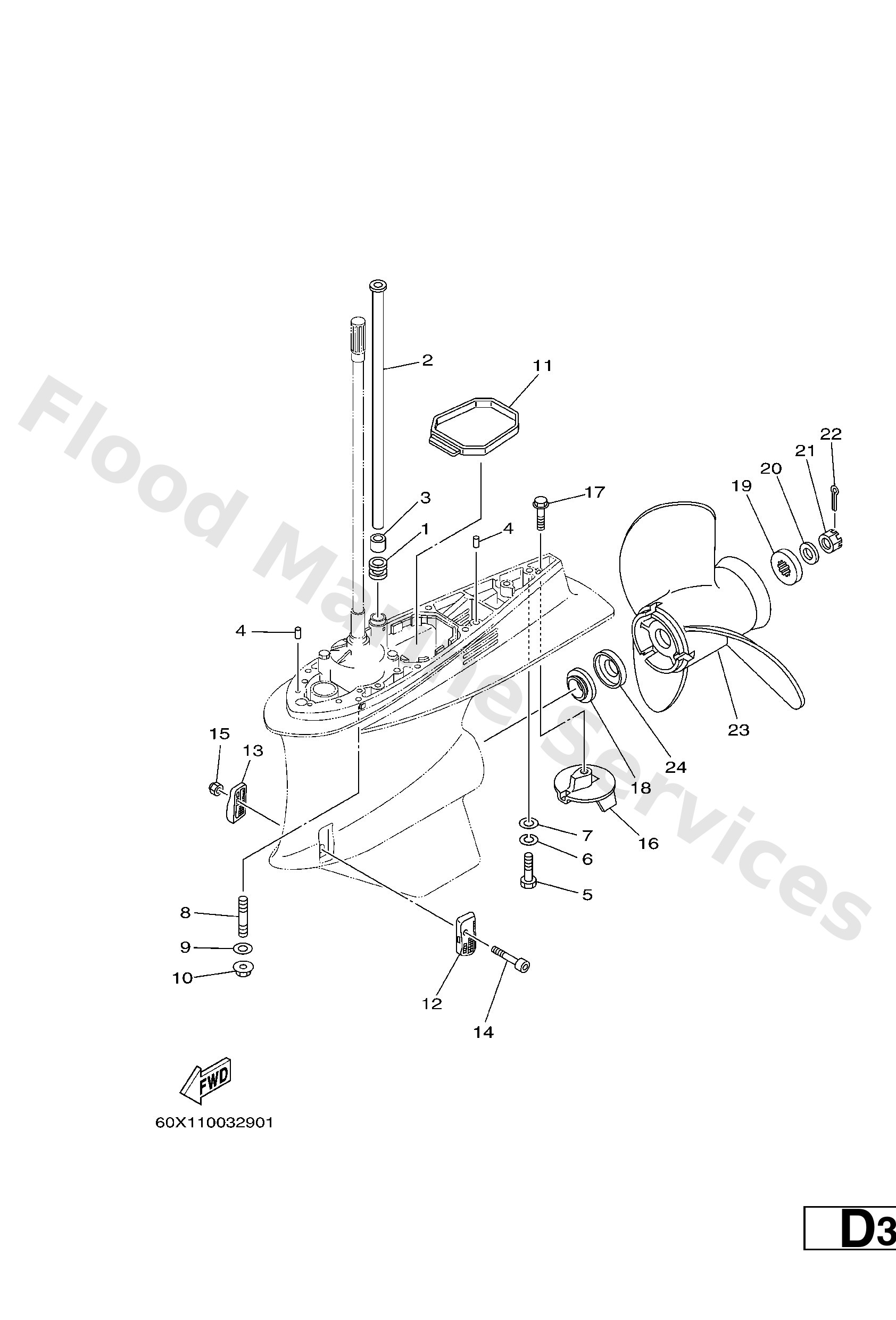

Diagram: LOWER CASING. DRIVE 2
Parts List
Reference
Description
Price
1
6E54436600
Damper, water seal 2
Loading…
↗
2
66K4436100
Tube, water
Loading…
↗
3
6E54436500
Damper, water seal 1
Loading…
↗
4
9360812M05
Pin, dowel b (6e5)
Loading…
↗
5
9709510045
Bolt(64d)
Loading…
↗
6
9299510100
Ybs67-10 washer, spring
Loading…
↗
7
9299510600
Washer, plate
Loading…
↗
8
9011610021
Bolt, stud
Loading…
↗
10
9578010300
Nut, nylon (6e5)
Loading…
↗
11
60X4537500
Damper, seal
Loading…
↗
12
60X4521400
Cover set, water inlet
Loading…
↗
13
60X4521500
Cover set, water inlet
Loading…
↗
14
9011005017
Bolt, Hexagon Socket Head
Loading…
↗
15
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
16
69L4537100
Tab-trim
Loading…
↗
17
9010510M00
Bolt, hexagon (663)
Loading…
↗
18
60X4598710
Go to P/N)PE0-OM-080083
Spacer 1
Loading…
↗
19
6884599701
Spacer 2
Loading…
↗
20
9299018200
Washer (6e5)
Loading…
↗
21
9017118M04
Nut, castle (6e5)
Loading…
↗
22
9149040030
Pin, cotter (663)
Loading…
↗
23
*
item_description
Loading…
↗
24
60X4599500
Go to P/N)PE0-OM-080083
Spacer 3
Loading…
↗
