FL225AET (2002)
LOWER CASING. DRIVE 3

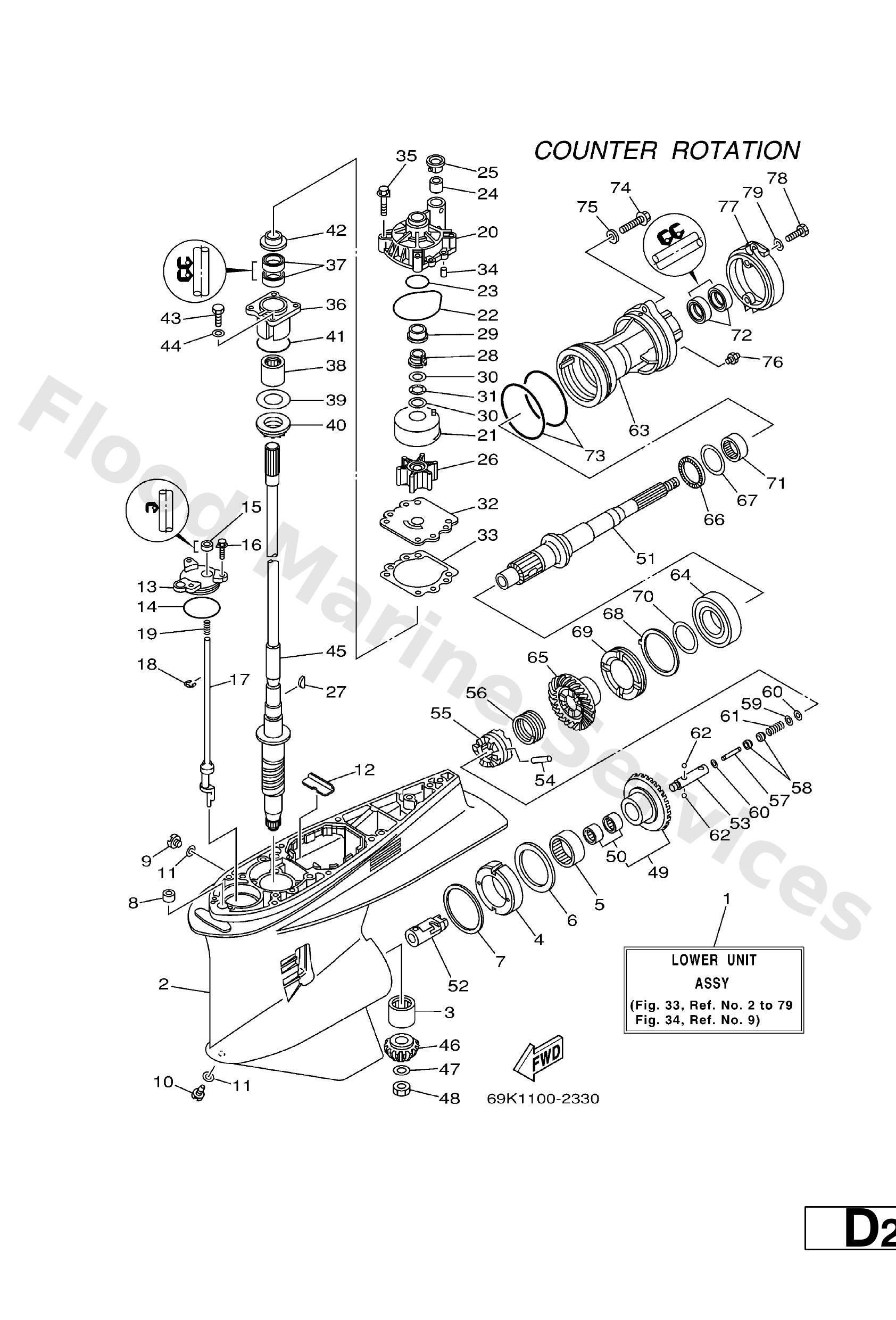

Diagram: LOWER CASING. DRIVE 3
Parts List
Reference
Description
Price
3
93311832v2
Bearing
Loading…
↗
4
61B4553801
Spacer 1
Loading…
↗
5
93315660W3
Bearing, cylindrical(61b)
Loading…
↗
6
93341670V0
Bearing, thrust (61b)
Loading…
↗
8
6634436600
Damper, water seal 2
Loading…
↗
9
9034008M04
Plug, straight screw
Loading…
↗
10
6884534100
Plug, drain
Loading…
↗
11
9043008020
Gasket
Loading…
↗
13
61A4532101
Plate
Loading…
↗
14
9321064488
93210-64488
Loading…
↗
15
9310609014
Oil seal
Loading…
↗
16
9011906M10
Bolt, with washer
Loading…
↗
17
69K4415000
Shift cam assembly
Loading…
↗
18
9343008006
Circlip(2r6)
Loading…
↗
19
9050111M10
Spring, compression (663)
Loading…
↗
20
61A4431101
Housing, water pump
Loading…
↗
21
61A4432202
Insert, cartridge
Loading…
↗
22
9321086M38
O-ring (6e5)
Loading…
↗
23
9321037160
O-ring (6g8)
Loading…
↗
24
6E54436500
Damper, water seal 1
Loading…
↗
25
6E54431200
Cover, water pump housing
Loading…
↗
26
6E54435201
Impeller
Loading…
↗
27
9028004M05
Key, woodruff (6e5)
Loading…
↗
28
61A4553800
Spacer, 1
Loading…
↗
29
61A4552700
Collar, drive shaft
Loading…
↗
30
9020122M01
Washer, plate(61a)
Loading…
↗
31
9020622M19
Washer, wave(61a)
Loading…
↗
32
6G54432300
Outer plate, cartridge
Loading…
↗
33
6E544315A0
Gasket,water pump
Loading…
↗
34
9360612019
Pin, dowel (614)
Loading…
↗
35
9011908M14
Bolt, with washer
Loading…
↗
36
61A453310094
Housing, bearing
Loading…
↗
37
9310128M16
Oil seal (6e5)
Loading…
↗
38
93317330U2
Bearing, cylindrical(6k0)
Loading…
↗
39
61A455870015
UR
Shim (t:0.15mm)
Loading…
↗
39
61A455870050
UR
Shim (t:0.50mm)
Loading…
↗
39
61A455870040
UR
Shim (t:0.40mm)
Loading…
↗
39
61A455870030
UR
Shim (t:0.30mm)
Loading…
↗
39
61A455870018
UR
Shim (t:0.18mm)
Loading…
↗
39
61A455870012
UR
Shim (t:0.12mm)
Loading…
↗
39
61A455870010
UR
Shim (t:0.10mm)
Loading…
↗
40
93341930U9
Bearing
Loading…
↗
41
9321055M14
O-ring (70e)
Loading…
↗
42
6E54534400
Cover, oil seal
Loading…
↗
43
9709508025
Bolt (62g)
Loading…
↗
44
9299508600
Washer, plain (663)
Loading…
↗
45
69J4550100
X
Drive shaft comp.
Loading…
↗
46
69J4555100
Pinion
Loading…
↗
47
9020116M00
Washer, plate(6t5)
Loading…
↗
48
9017016M19
Nut(6t5)
Loading…
↗
49
69K4556000
Gear
Loading…
↗
50
93317428U7
Bearing
Loading…
↗
51
69K4561100
Shaft, propeller
Loading…
↗
52
69K4564100
Shifter
Loading…
↗
53
61A4563401
Slide, shift
Loading…
↗
54
61A4563200
Pin, cross
Loading…
↗
55
69J4563100
Clutch, dog
Loading…
↗
56
61A4563300
Ring, cross pin
Loading…
↗
57
6H14566800
Shaft, free 1
Loading…
↗
58
61A4563500
Plunger, shift
Loading…
↗
59
9020102M00
Washer, plate(61a)
Loading…
↗
60
9018302M03
Nut, spring (6h1)
Loading…
↗
61
9050110M77
Spring, compression(61a)
Loading…
↗
62
9350104011
Ball
Loading…
↗
63
69K453320094
Housing, bearing
Loading…
↗
64
9333200048
Bearing(6k0)
Loading…
↗
65
69K4557100
Gear
Loading…
↗
66
93341440U5
Bearing, thrust (6k0)
Loading…
↗
67
6K1455780115
UR
Shim (t:0.15mm)
Loading…
↗
67
6K1455780110
UR
Shim (t:0.10mm)
Loading…
↗
67
6K1455780112
UR
Shim (t:0.12mm)
Loading…
↗
67
6K1455780118
UR
Shim (t:0.18mm)
Loading…
↗
67
6K1455780130
UR
Shim (t:0.30mm)
Loading…
↗
67
6K1455780140
UR
Shim (t:0.40mm)
Loading…
↗
67
6K1455780150
UR
Shim (t:0.50mm)
Loading…
↗
68
61B4538300
Washer, claw
Loading…
↗
69
69K4538400
Nut
Loading…
↗
70
69K4557740
UR
Shim (t:0.30mm)
Loading…
↗
70
69K4557760
UR
Shim (t:0.50mm)
Loading…
↗
70
69K4557750
UR
Shim (t:0.40mm)
Loading…
↗
70
69K4557730
UR
Shim (t:0.18mm)
Loading…
↗
70
69K4557720
UR
Shim (t:0.15mm)
Loading…
↗
70
69K4557710
UR
Shim (t:0.12mm)
Loading…
↗
70
69K4557700
UR
Shim (t:0.10mm)
Loading…
↗
71
9331543061
Bearing
Loading…
↗
72
9310130M17
Oil seal (6e5)
Loading…
↗
73
9321104384
O-ring (705)
Loading…
↗
74
9010508036
Bolt, flange
Loading…
↗
75
9020108023
Washer, plate
Loading…
↗
76
9370009M00
Nipple, grease(6t4)
Loading…
↗
77
69J45361008D
Cap, lower casing
Loading…
↗
78
9709508020
Bolt, hexagon
Loading…
↗
