Z200NETO (2003)
LOWER CASING. DRIVE 3

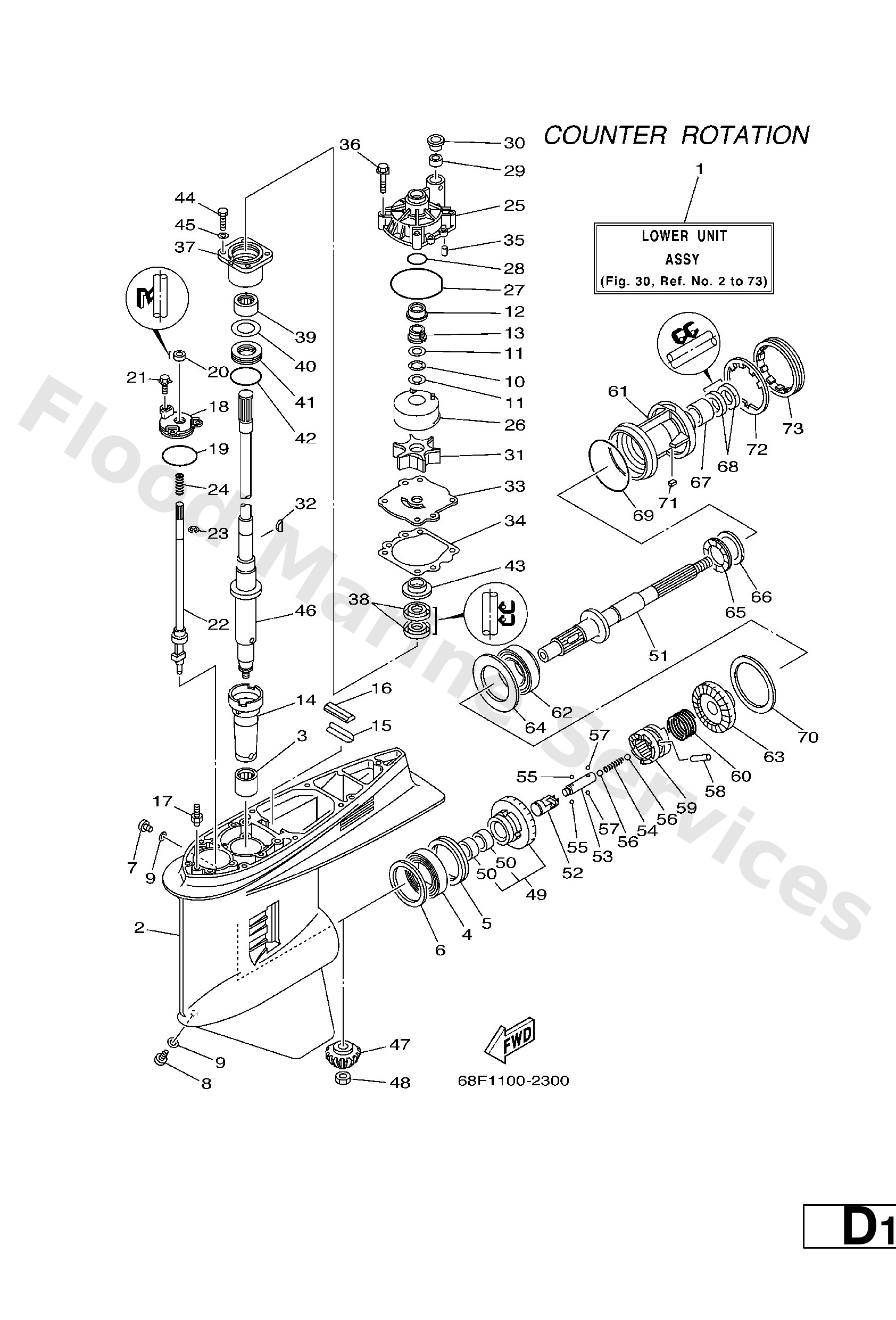

Diagram: LOWER CASING. DRIVE 3
Parts List
Reference
Description
Price
1
64H−45300−22−8D
X
Lower unit assembly
Loading…
↗
2
6J9−45301−05−8D
Casing, lower
Loading…
↗
3
93311−928U5
Bearing, needle (6g5)
Loading…
↗
4
93390−000U2
Bearing(6k0)
Loading…
↗
5
93341−465U4
Bearing, thrust (6k0)
Loading…
↗
6
6G5−45567−01−10
UR
Shim (t:0.10mm)
Loading…
↗
6
6G5−45567−01−12
UR
Shim (t:0.12mm)
Loading…
↗
6
6G5−45567−01−15
UR
Shim (t:0.15mm)
Loading…
↗
6
6G5−45567−01−18
UR
Shim (t:0.18mm)
Loading…
↗
6
6G5−45567−01−30
UR
Shim (t:0.30mm)
Loading…
↗
6
6G5−45567−01−40
UR
Shim (t:0.40mm)
Loading…
↗
6
6G5−45567−01−50
UR
Shim (t:0.50mm)
Loading…
↗
7
90340−08002
Plug, straight screw
Loading…
↗
8
688−45341−10
Plug, drain
Loading…
↗
9
90430−08020
Gasket
Loading…
↗
10
90206−22M19
Washer, wave(61a)
Loading…
↗
11
90201−22M01
Washer, plate(61a)
Loading…
↗
12
61A−45527−00
Collar, drive shaft
Loading…
↗
13
61A−45538−00
Spacer, 1
Loading…
↗
14
6G5−45536−01
Sleeve, drive shaft
Loading…
↗
15
64D−45376−00−94
X
Guide, seal damper
Loading…
↗
16
688−45375−00
Damper, seal 2
Loading…
↗
17
6J8−45378−00
Nipple, hose (plug)
Loading…
↗
18
6E5−45321−00
Plate
Loading…
↗
19
93210−58144
O-ring(47x)
Loading…
↗
20
93106−09014
Oil seal
Loading…
↗
21
90119−06M10
Bolt, with washer
Loading…
↗
22
6K1−44150−01
Shift cam assembly
Loading…
↗
23
99001−08600
Circlip(2r6)
Loading…
↗
24
90501−11M10
Spring, compression (663)
Loading…
↗
25
61A−44311−01
Housing, water pump
Loading…
↗
26
61A−44322−02
Insert, cartridge
Loading…
↗
27
93210−86M38
O-ring (6e5)
Loading…
↗
28
93210−37160
O-ring (6g8)
Loading…
↗
29
6E5−44365−00
Damper, water seal 1
Loading…
↗
30
6E5−44312−00
Cover, water pump housing
Loading…
↗
31
6E5−44352−01
Impeller
Loading…
↗
32
90280−04M05
Key, woodruff (6e5)
Loading…
↗
33
6G5−44323−00
Outer plate, cartridge
Loading…
↗
34
6E5−44315−A0
Gasket,water pump
Loading…
↗
35
93606−12019
Pin, dowel (614)
Loading…
↗
36
90119−08M14
Bolt, with washer
Loading…
↗
37
6E5−45331−00−94
Housing, bearing
Loading…
↗
38
93101−28M16
Oil seal (6e5)
Loading…
↗
39
93317−330U2
Bearing, cylindrical(6k0)
Loading…
↗
40
6E5−45587−01−50
UR
Shim (t:0.50mm)
Loading…
↗
40
6E5−45587−01−40
UR
Shim (t:0.40mm)
Loading…
↗
40
6E5−45587−01−30
UR
Shim (t:0.30mm)
Loading…
↗
40
6E5−45587−01−18
UR
Shim (t:0.18mm)
Loading…
↗
40
6E5−45587−01−12
UR
Shim (t:0.12mm)
Loading…
↗
40
6E5−45587−01−15
UR
Shim (t:0.15mm)
Loading…
↗
40
6E5−45587−01−10
UR
Shim (t:0.10mm)
Loading…
↗
41
93341−930V2
Bearing, thrust(64d)
Loading…
↗
42
93210−55M14
O-ring (70e)
Loading…
↗
43
6E5−45344−00
Cover, oil seal
Loading…
↗
44
97095−08025
Bolt (62g)
Loading…
↗
45
92995−08600
Washer, plain (663)
Loading…
↗
46
6G5−45501−21
X
Drive shaft comp.
Loading…
↗
47
6G5−45551−10
Pinion
Loading…
↗
48
90170−16M01
Nut, hexagon (688)
Loading…
↗
49
6K1−45560−01
Gear
Loading…
↗
50
93315−425V3
Bearing, needle (6g5)
Loading…
↗
51
6K1−45611−10
Shaft, propeller
Loading…
↗
52
6K1−45641−01
Shifter
Loading…
↗
53
6E5−45634−01
Slide, shift
Loading…
↗
54
90501−16M37
Spring (6g5)
Loading…
↗
55
93507−32009
Ball (12r)
Loading…
↗
56
93511−32017
Ball (498)
Loading…
↗
57
93503−16003
Ball
Loading…
↗
58
90250−08M07
Pin, straight (6g5)
Loading…
↗
59
6G5−45631−10
Clutch, dog
Loading…
↗
60
6E5−45633−01
Ring, cross pin
Loading…
↗
61
6K1−45332−01−94
Housing, bearing
Loading…
↗
62
93332−00048
Bearing(6k0)
Loading…
↗
63
6K1−45570−20
Gear
Loading…
↗
64
6K1−45576−00
Washer, thrust
Loading…
↗
65
93341−440U5
Bearing, thrust (6k0)
Loading…
↗
66
6K1−45578−01−10
UR
Shim (t:0.10mm)
Loading…
↗
66
6K1−45578−01−12
UR
Shim (t:0.12mm)
Loading…
↗
66
6K1−45578−01−15
UR
Shim (t:0.15mm)
Loading…
↗
66
6K1−45578−01−18
UR
Shim (t:0.18mm)
Loading…
↗
66
6K1−45578−01−30
UR
Shim (t:0.30mm)
Loading…
↗
66
6K1−45578−01−40
UR
Shim (t:0.40mm)
Loading…
↗
66
6K1−45578−01−50
UR
Shim (t:0.50mm)
Loading…
↗
67
93315−430U8
Bearing
Loading…
↗
68
93101−30M17
Oil seal (6e5)
Loading…
↗
69
93210−97M55
O-ring (6g5)
Loading…
↗
70
6G5−45577−02−10
UR
Shim (t:0.10mm)
Loading…
↗
70
6G5−45577−02−12
UR
Shim (t:0.12mm)
Loading…
↗
70
6G5−45577−02−15
UR
Shim (t:0.15mm)
Loading…
↗
70
6G5−45577−02−18
UR
Shim (t:0.18mm)
Loading…
↗
70
6G5−45577−02−30
UR
Shim (t:0.30mm)
Loading…
↗
70
6G5−45577−02−40
UR
Shim (t:0.40mm)
Loading…
↗
70
6G5−45577−02−50
UR
Shim (t:0.50mm)
Loading…
↗
71
90282−04M00
Key, straight(6g5)
Loading…
↗
72
6G5−45383−01
Washer, claw
Loading…
↗
73
6G5−45384−00
Nut
Loading…
↗
