50GETO (2003)
LOWER CASING. DRIVE 4

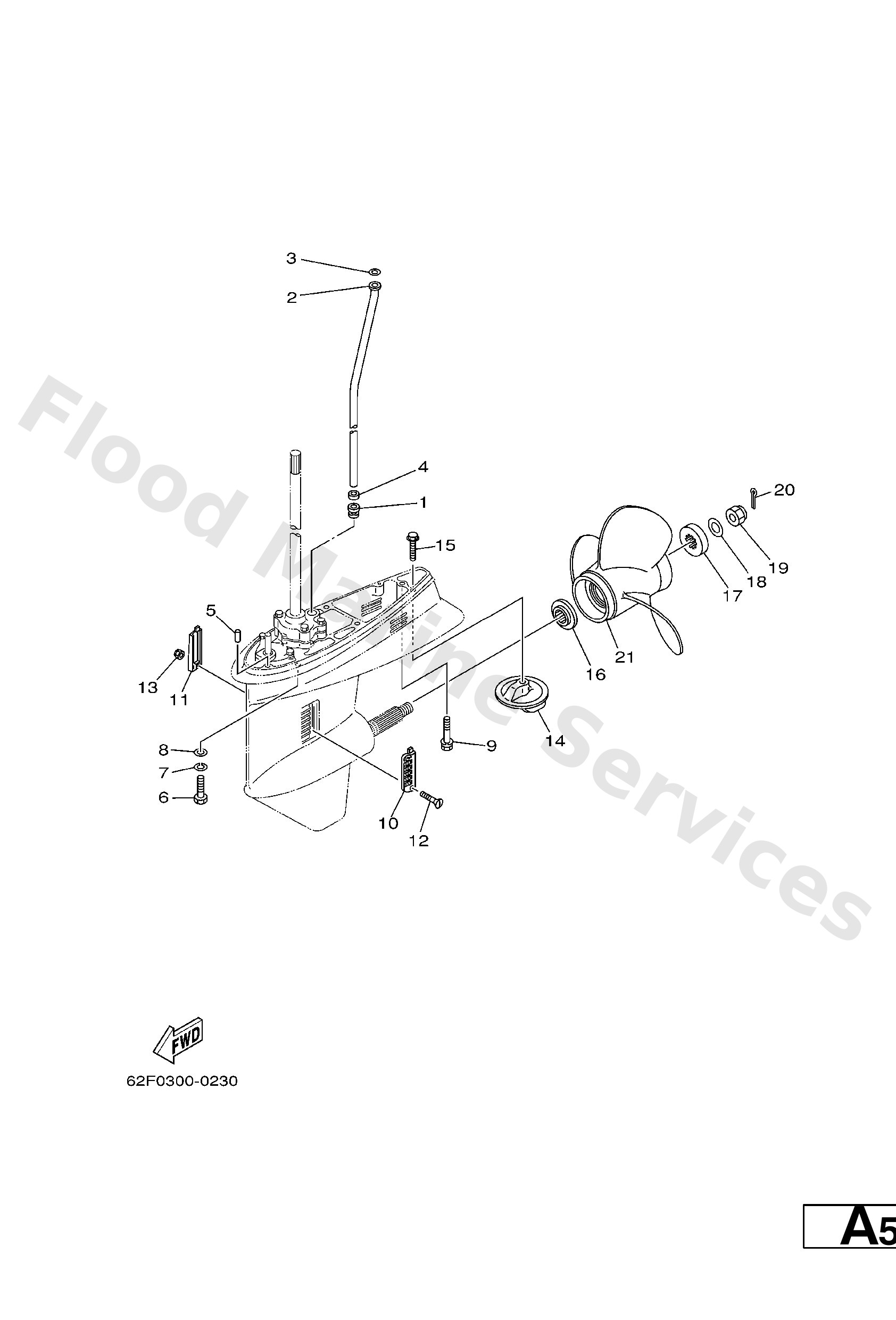

Diagram: LOWER CASING. DRIVE 4
Parts List
Reference
Description
Price
1
663−44367−00
Damper, water seal 3
Loading…
↗
2
6H3−44361−10
L
Tube, water
Loading…
↗
3
90202−12060
Washer, plate(663)
Loading…
↗
4
90430−12072
Gasket
Loading…
↗
5
93606−12019
Pin, dowel (614)
Loading…
↗
6
97075−10040
Bolt, hexagon deep recess
Loading…
↗
7
92990−10100
Ybs67-10 washer, spring
Loading…
↗
8
92990−10600
Washer, plate
Loading…
↗
9
90119−08M84
Bolt, with washer
Loading…
↗
10
688−45214−02
Cover, water inlet
Loading…
↗
11
688−45215−02
Cover, water inlet
Loading…
↗
12
90152−05M05
Screw, countersunk
Loading…
↗
13
90185−05002
Nut nylon (sus)(ex4)
Loading…
↗
14
679−45371−00
Tab trim
Loading…
↗
15
90105−10M67
Bolt, hexagon (663)
Loading…
↗
16
663−45987−02
Spacer
Loading…
↗
17
670−45997−02
Spacer
Loading…
↗
18
92990−16200
958-58204-00 washer,plain
Loading…
↗
19
90171−16011
Nut, castle (663)
Loading…
↗
20
91490−40025
Pin, cotter (663)
Loading…
↗
21
663−45978−00−98
UR
Propeller (3x10-1/4"x16"-g)
Loading…
↗
21
663−45970−60−98
UR
Propeller (3x11-3/4"x12"-g)
Loading…
↗
21
663−45972−60−98
UR
Propeller (3x12"x11"-g)
Loading…
↗
21
663−45974−60−98
UR
Propeller (3x11-1/2"x13"-g)
Loading…
↗
