Yamaha Outboard Parts - LOWER CASING. DRIVE 4 - FL115AET (2002) | Flood Marine

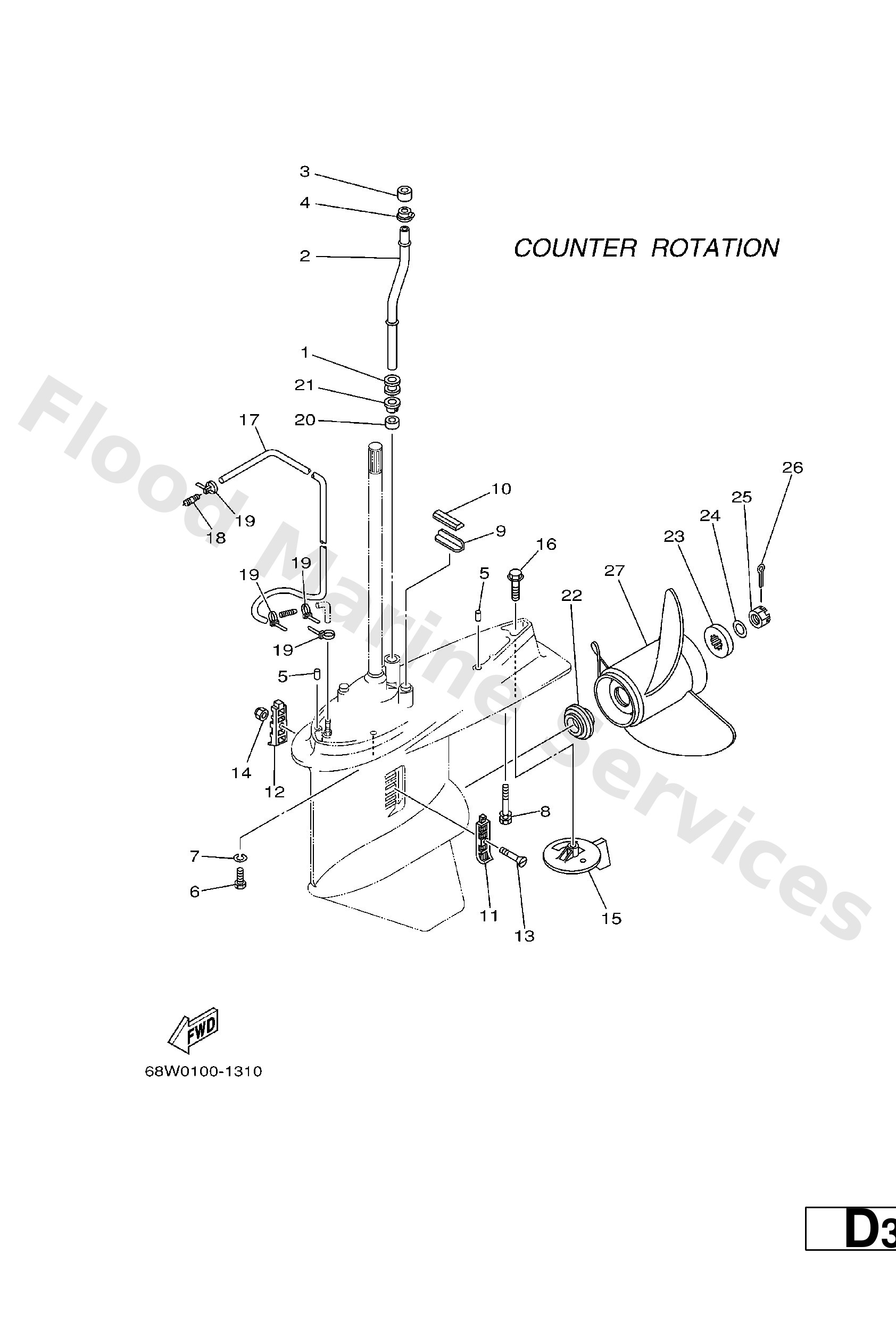

Diagram: LOWER CASING. DRIVE 4

Diagram

Parts List

Reference
Description
Price


1
6E5−44366−00
Damper, water seal 2
Loading…

↗
2
68V−44361−30 X
Tube, water 1
Loading…

↗
3
6E5−44365−00
Damper, water seal 1
Loading…

↗
4
6E5−44312−00
Cover, water pump housing
Loading…

↗
5
93608−12M05
Pin, dowel b (6e5)
Loading…

↗
6
97075−10045
Bolt(64d)
Loading…

↗
7
92995−10100
Ybs67-10 washer, spring
Loading…

↗
8
90119−10M89
Bolt, with washer
Loading…

↗
9
663−45376−00−94
Guide, seal damper
Loading…

↗
10
688−45375−00
Damper, seal 2
Loading…

↗
11
688−45214−02
Cover, water inlet
Loading…

↗
12
688−45215−02
Cover, water inlet
Loading…

↗
13
90152−05M07
Screw, countersunk
Loading…

↗
14
90185−05002
Nut nylon (sus)(ex4)
Loading…

↗
15
6L6−45371−00
Tab-trim
Loading…

↗
16
90105−10M00
Bolt, hexagon (663)
Loading…

↗
17
90445−076K2
Hose (l1700)
Loading…

↗
18
6E5−83558−00
End, nipple
Loading…

↗
19
90465−11M10
Clamp
Loading…

↗
22
6E5−45987−01
Spacer 1
Loading…

↗
23
688−45997−01
Spacer 2
Loading…

↗
24
92990−18200
Washer (6e5)
Loading…

↗
25
90171−18M04
Nut, castle (6e5)
Loading…

↗
26
91490−40030
Pin, cotter (663)
Loading…

↗
27
6L6−45930−01−98 UR
Propeller (3x13"x17"-kl)
Loading…

↗
27
6L6−45970−00−98 UR
Propeller (3x13 x19 -kl)
Loading…

↗
27
6L6−45972−00−98 UR
Propeller (ss 3x13"x21"-kl)
Loading…

↗
