FT50CEHD (2003)
LOWER CASING. DRIVE 4

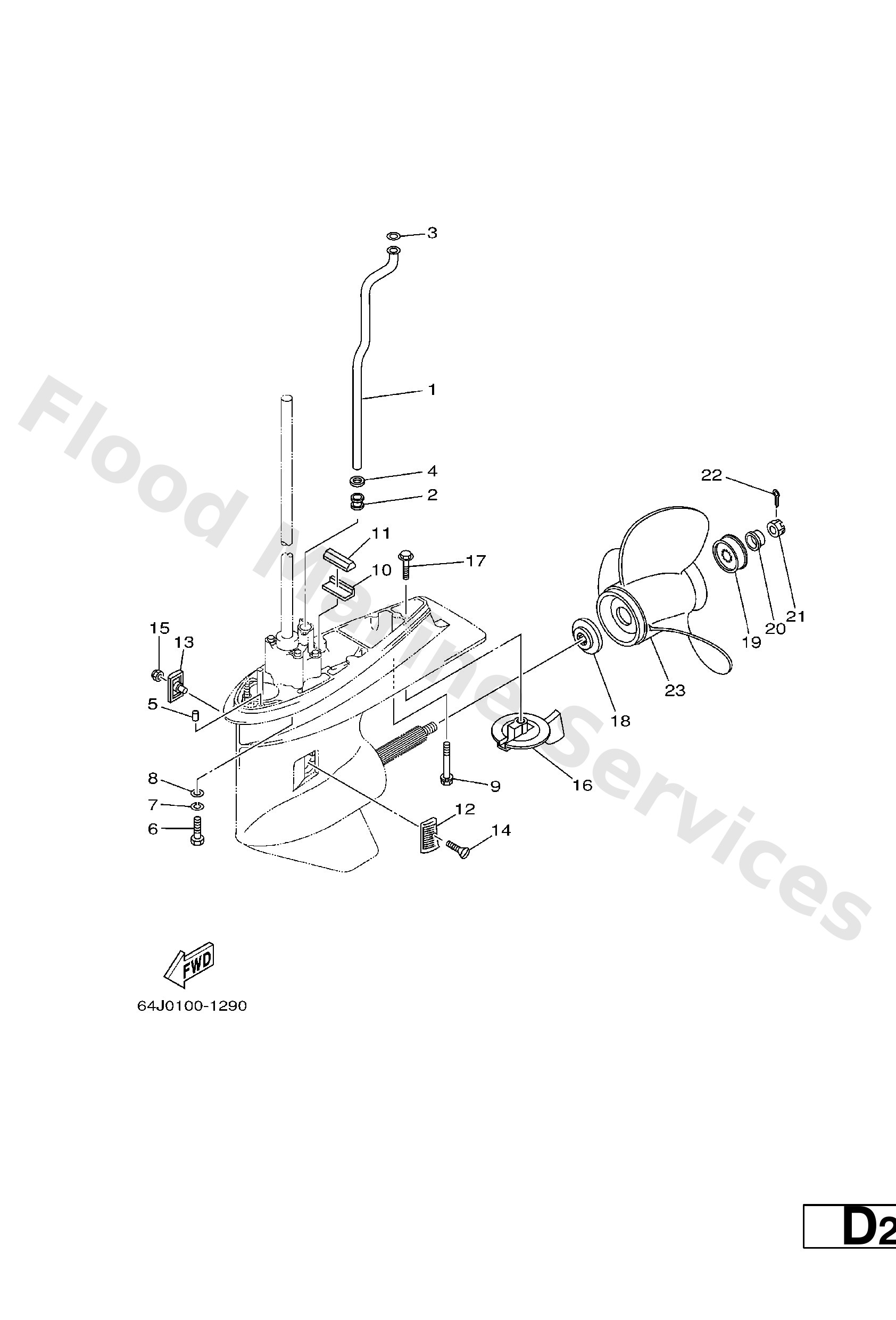

Diagram: LOWER CASING. DRIVE 4
Parts List
Reference
Description
Price
1
62Y−44361−20
X
Tube, water
Loading…
↗
1
62Y−44361−00
L
Tube, water
Loading…
↗
2
663−44367−00
Damper, water seal 3
Loading…
↗
3
90202−12060
Washer, plate(663)
Loading…
↗
4
90430−12072
Gasket
Loading…
↗
5
93606−12019
Pin, dowel (614)
Loading…
↗
6
97075−10040
Bolt, hexagon deep recess
Loading…
↗
7
92995−10100
Ybs67-10 washer, spring
Loading…
↗
8
92995−10600
Washer, plate
Loading…
↗
9
90119−08M84
Bolt, with washer
Loading…
↗
10
663−45376−00−94
Guide, seal damper
Loading…
↗
11
688−45375−00
Damper, seal 2
Loading…
↗
12
6H1−45214−00
Cover, water inlet
Loading…
↗
13
6H1−45215−00
Cover, water inlet
Loading…
↗
14
90151−05M00
Screw, countersunk(692)
Loading…
↗
15
90185−05002
Nut nylon (sus)(ex4)
Loading…
↗
16
67F−45371−00
Tab-trim
Loading…
↗
17
90105−10M67
Bolt, hexagon (663)
Loading…
↗
18
688−45987−01
Spacer
Loading…
↗
19
67F−45997−00
Spacer 2
Loading…
↗
20
90389−25M00
Bush
Loading…
↗
21
90171−16011
Nut, castle (663)
Loading…
↗
22
91490−40025
Pin, cotter (663)
Loading…
↗
23
6E5−45941−00−EL
UR
Propeller (3x13x19-k)
Loading…
↗
23
6E5−45943−00−EL
UR
Propeller (3x12-5/8"x21"-k)
Loading…
↗
23
6E5−45945−01−EL
UR
Propeller (3x13-1/4x17-k)
Loading…
↗
23
6E5−45947−00−EL
UR
Propeller (3x13-1/2x15-k)
Loading…
↗
23
6E5−45949−00−EL
UR
Propeller (3x13-5/8"x13"-k)
Loading…
↗
23
6E5−45952−00−EL
UR
Propeller (3x13"x23"-k)
Loading…
↗
23
6E5−45954−00−EL
UR
Propeller (3x14"x11"-k)
Loading…
↗
23
6E5−45956−00−EL
UR
Propeller (3x13"x25"-k)
Loading…
↗
