L250BETO (2002)
LOWER CASING. DRIVE 4

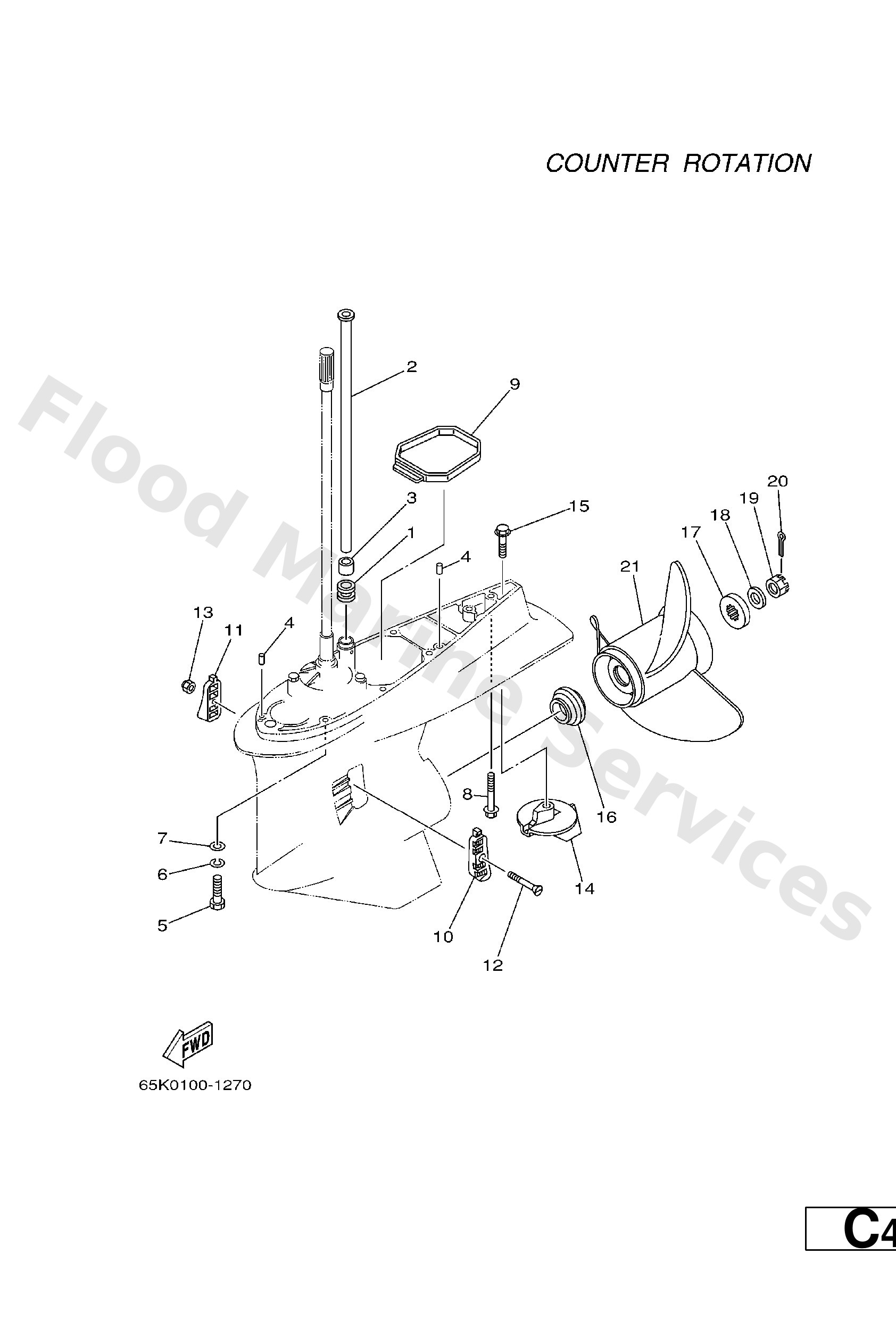

Diagram: LOWER CASING. DRIVE 4
Parts List
Reference
Description
Price
1
6E5--44366--00
Damper, water seal 2
Loading…
↗
2
61A4436120
X
Tube, water
Loading…
↗
3
6E5--44365--00
Damper, water seal 1
Loading…
↗
4
93608--12M05
Pin, dowel b (6e5)
Loading…
↗
5
97095--10045
Bolt(64d)
Loading…
↗
6
92995--10100
Ybs67-10 washer, spring
Loading…
↗
7
92995--10600
Washer, plate
Loading…
↗
8
90119--10MA2
Bolt, with washer
Loading…
↗
9
61A--45375--00
Damper, seal
Loading…
↗
10
61A--45214--00
Cover, water inlet
Loading…
↗
11
61A--45215--00
Cover, water inlet
Loading…
↗
12
90152--05M08
Screw, countersunk
Loading…
↗
13
90185--05002
Nut nylon (sus)(ex4)
Loading…
↗
14
61A--45371--00
Anode
Loading…
↗
15
90105--10M00
Bolt, hexagon (663)
Loading…
↗
16
6E5--45987--01
Spacer 1
Loading…
↗
17
688--45997--01
Spacer 2
Loading…
↗
18
92990--18200
Washer (6e5)
Loading…
↗
19
90171--18M04
Nut, castle (6e5)
Loading…
↗
20
91490--40030
Pin, cotter (663)
Loading…
↗
21
6K1--45970--01--98
UR
Propeller (3x15-1/4"x15"-ml)
Loading…
↗
21
6K1--45972--01--98
UR
Propeller (3x13-3/4"x21"-ml)
Loading…
↗
21
6K1--45974--02--98
UR
Propeller (3x13-3/4"x19"-ml1)
Loading…
↗
21
6K1--45978--02--98
UR
Propeller (3x13-3/4"x17"-ml1)
Loading…
↗
21
61B459740098
UR
Propeller (3x14-1/2"x19"-tl)
Loading…
↗
21
61B459780098
UR
Propeller (3x5"x17"-tl)
Loading…
↗
