LZ250DETO (2003)
LOWER CASING. DRIVE 4

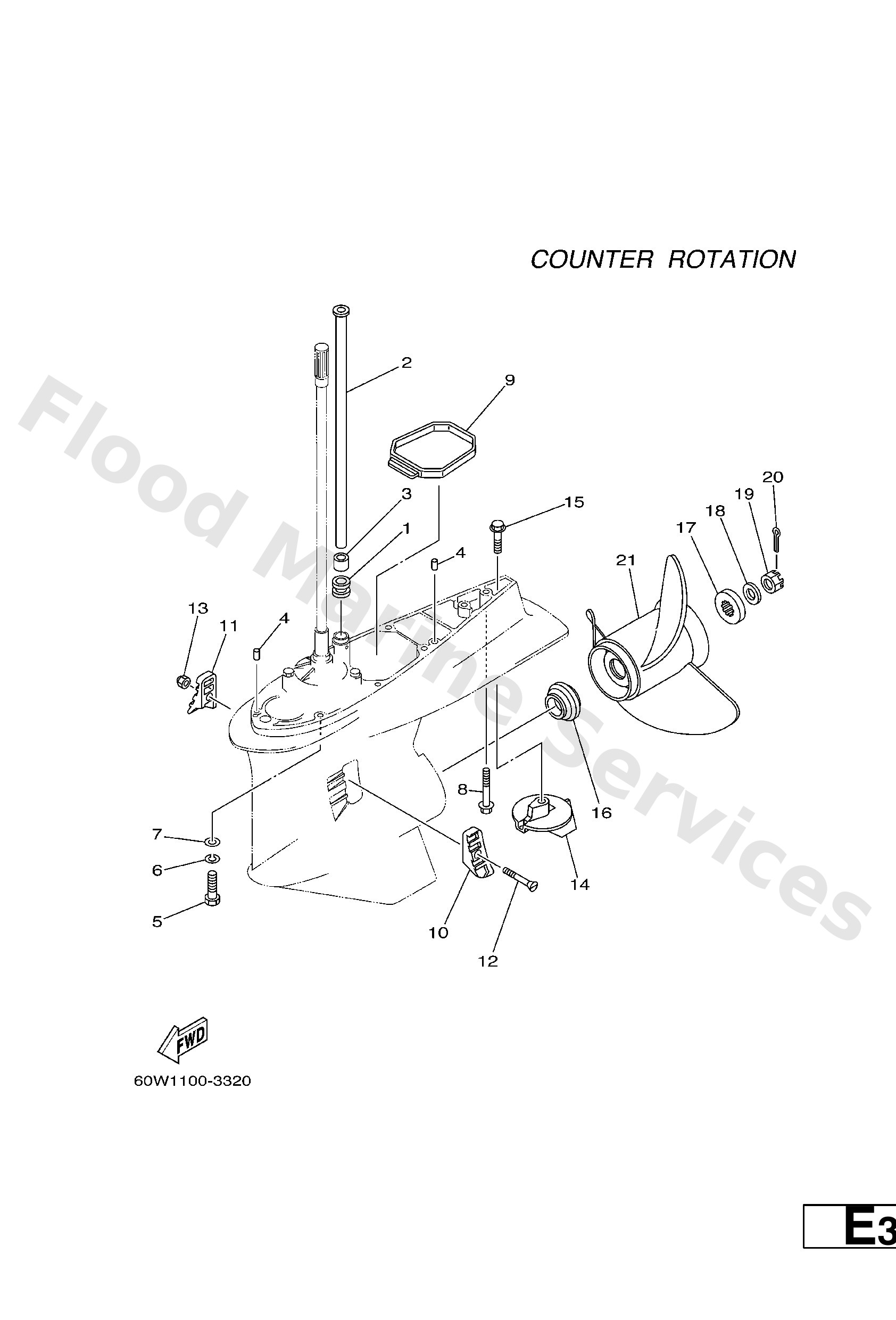

Diagram: LOWER CASING. DRIVE 4
Parts List
Reference
Description
Price
1
6E5−44366−00
Damper, water seal 2
Loading…
↗
2
61A−44361−20
X
Tube, water
Loading…
↗
3
6E5−44365−00
Damper, water seal 1
Loading…
↗
4
93608−12M05
Pin, dowel b (6e5)
Loading…
↗
5
97095−10045
Bolt(64d)
Loading…
↗
6
92995−10100
Ybs67-10 washer, spring
Loading…
↗
7
92995−10600
Washer, plate
Loading…
↗
8
90119−10MA2
Bolt, with washer
Loading…
↗
9
61A−45375−00
Damper, seal
Loading…
↗
10
61A−45214−10
Cover, water inlet 1
Loading…
↗
11
61A−45215−10
Cover, water inlet 2
Loading…
↗
12
90152−05003
Screw, countersunk
Loading…
↗
13
90185−05002
Nut nylon (sus)(ex4)
Loading…
↗
14
69L−45371−00
Tab-trim
Loading…
↗
15
90105−10M00
Bolt, hexagon (663)
Loading…
↗
16
69J−45987−00
Spacer 1
Loading…
↗
17
688−45997−01
Spacer 2
Loading…
↗
18
92990−18200
Washer (6e5)
Loading…
↗
19
90171−18M04
Nut, castle (6e5)
Loading…
↗
20
91490−40030
Pin, cotter (663)
Loading…
↗
21
6K1−45970−01−98
UR
Propeller (3x15-1/4"x15"-ml)
Loading…
↗
21
6K1−45972−01−98
UR
Propeller (3x13-3/4"x21"-ml)
Loading…
↗
21
6K1−45974−02−98
UR
Propeller (3x13-3/4"x19"-ml1)
Loading…
↗
21
6K1−45978−02−98
UR
Propeller (3x13-3/4"x17"-ml1)
Loading…
↗
21
61B−45972−00−98
UR
Propeller (ss 3x14-1/2"x21"-tl
Loading…
↗
21
61B−45974−00−98
UR
Propeller (3x14-1/2"x19"-tl)
Loading…
↗
21
61B−45978−00−98
UR
Propeller (3x5"x17"-tl)
Loading…
↗
21
6R1−45970−A0
UR
Propeller (3X15−1/4”X19”−Ml)
Loading…
↗
21
6R1−45972−A0
UR
Propeller (3X14−7/8”X21”−Ml)
Loading…
↗
21
6R1−45974−A0
UR
Propeller (3X14−1/2”X23”−Ml)
Loading…
↗
21
6R1−45976−A0
UR
Propeller (3X15−1/4”X15”−Ml)
Loading…
↗
21
6R1−45978−A0
UR
Propeller (3X15−1/4”X17”−Ml)
Loading…
↗
