LZ250TRC (2004)
LOWER CASING. DRIVE 4

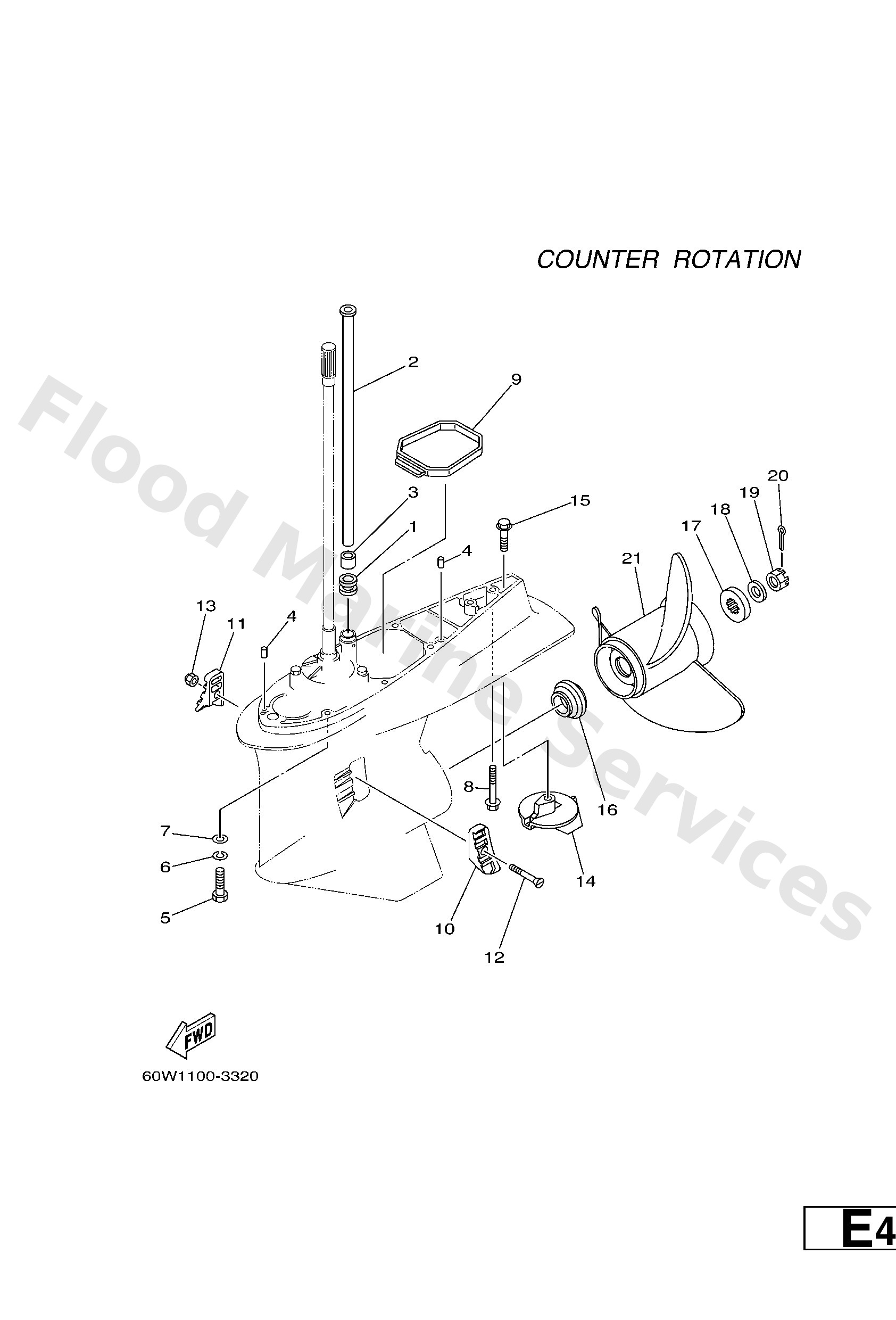

Diagram: LOWER CASING. DRIVE 4
Parts List
Reference
Description
Price
1
6E54436600
Damper, water seal 2
Loading…
↗
2
61A4436120
X
Tube, water
Loading…
↗
2
61A4436130
U
Tube, water
Loading…
↗
3
6E54436500
Damper, water seal 1
Loading…
↗
4
9360812M05
Pin, dowel b (6e5)
Loading…
↗
5
9709510045
Bolt(64d)
Loading…
↗
6
9299510100
Ybs67-10 washer, spring
Loading…
↗
7
9299510600
Washer, plate
Loading…
↗
8
9011910MA2
Bolt, with washer
Loading…
↗
9
61A4537500
Damper, seal
Loading…
↗
10
61A4521410
Cover, water inlet 1
Loading…
↗
11
61A4521510
Cover, water inlet 2
Loading…
↗
12
9015205003
Screw, countersunk
Loading…
↗
13
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
14
69L4537100
Tab-trim
Loading…
↗
15
9010510M00
Bolt, hexagon (663)
Loading…
↗
16
69J4598700
Spacer 1
Loading…
↗
17
6884599701
Spacer 2
Loading…
↗
18
9299018200
Washer (6e5)
Loading…
↗
19
9017118M04
Nut, castle (6e5)
Loading…
↗
20
9149040030
Pin, cotter (663)
Loading…
↗
21
6K1459700198
UR
Propeller (3x15-1/4"x15"-ml)
Loading…
↗
21
6K1459720198
UR
Propeller (3x13-3/4"x21"-ml)
Loading…
↗
21
6K1459740298
UR
Propeller (3x13-3/4"x19"-ml1)
Loading…
↗
21
6K1459780298
UR
Propeller (3x13-3/4"x17"-ml1)
Loading…
↗
21
61B459720098
UR
Propeller (ss 3x14-1/2"x21"-tl
Loading…
↗
21
61B459740098
UR
Propeller (3x14-1/2"x19"-tl)
Loading…
↗
21
61B459780098
UR
Propeller (3x5"x17"-tl)
Loading…
↗
21
6R145970A0
UR
Propeller (3X15–1/4”X19”–Ml)
Loading…
↗
21
6R145972A0
UR
Propeller (3X14–7/8”X21”–Ml)
Loading…
↗
21
6R145974A0
UR
Propeller (3X14–1/2”X23”–Ml)
Loading…
↗
21
6R145976A0
UR
Propeller (3X15–1/4”X15”–Ml)
Loading…
↗
21
6R145978A0
UR
Propeller (3X15–1/4”X17”–Ml)
Loading…
↗
