200AETOL (1996)
Lower & Drive 1 (COUNTER ROTATION)

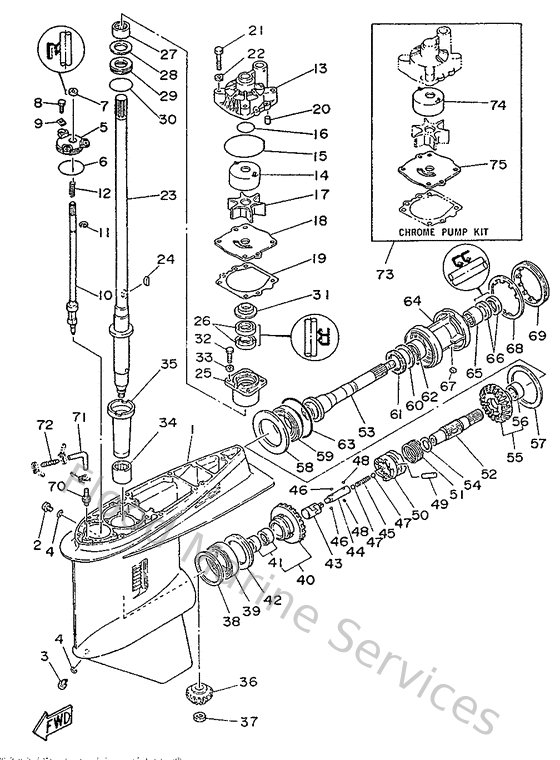

Diagram: Lower & Drive 1 (COUNTER ROTATION)
Parts List
Reference
Description
Price
2
903400801400
Plug, straight screw
Loading…
↗
3
688453410000
Plug, drain
Loading…
↗
4
904300802000
Gasket
Loading…
↗
5
6E5453210000
Plate
Loading…
↗
6
932105867700
O-ring(47x)
Loading…
↗
7
931060901400
Oil seal
Loading…
↗
8
973950602000
Bolt(7u8)
Loading…
↗
9
9020906M0400
Washer
Loading…
↗
10
6K1441500100
Shift cam assembly
Loading…
↗
11
934300800600
Circlip(2r6)
Loading…
↗
13
6E5443110000
Housing, water pump
Loading…
↗
14
6E5443220000
Insert, cartridge
Loading…
↗
15
9321086M3800
O-ring (6e5)
Loading…
↗
16
9321037M6700
O-ring (6g8)
Loading…
↗
17
6E5443520000
Impeller
Loading…
↗
18
6G5443230000
Outer plate, cartridge
Loading…
↗
20
936061201900
Pin, dowel (614)
Loading…
↗
21
970950804500
Bolt, hexagon
Loading…
↗
22
9020908M0200
Washer, plate (688)
Loading…
↗
23
6G5455012000
Drive shaft comp.
Loading…
↗
24
9028004M0500
Key, woodruff (6e5)
Loading…
↗
25
6E5453310094
Housing, bearing
Loading…
↗
26
9310128M1600
Oil seal (6e5)
Loading…
↗
27
93317330U200
Bearing, cylindrical(6k0)
Loading…
↗
28
6E5455876000
Shim (t:0.50mm)
Loading…
↗
29
93341930U000
Bearing, thrust(64d)
Loading…
↗
30
9321055M1400
O-ring (70e)
Loading…
↗
31
6E5453440000
Cover, oil seal
Loading…
↗
32
973950802500
Bolt (62g)
Loading…
↗
33
929900860000
Washer, plain (663)
Loading…
↗
34
93311928U500
Bearing, needle (6g5)
Loading…
↗
35
6E5455360000
Sleeve, drive shaft
Loading…
↗
36
6G5455510000
Pinion
Loading…
↗
37
9017016M0100
Nut, hexagon (688)
Loading…
↗
38
6G5455670005
Shim, gear adjust (0.05mm)
Loading…
↗
39
93390000U200
Bearing(6k0)
Loading…
↗
40
6K1455600100
Gear
Loading…
↗
41
93315425V300
Bearing, needle (6g5)
Loading…
↗
42
93341465U400
Bearing, thrust (6k0)
Loading…
↗
43
6K1456410000
Shifter
Loading…
↗
44
6E5456340100
Slide, shift
Loading…
↗
45
9050116M3700
Spring (6g5)
Loading…
↗
46
935073203100
Ball (12r)
Loading…
↗
47
935113201700
Ball (498)
Loading…
↗
48
935031600300
Ball
Loading…
↗
49
9025008M0700
Pin, straight (6g5)
Loading…
↗
50
6G5456310000
Clutch, dog
Loading…
↗
51
6E5456330100
Ring, cross pin
Loading…
↗
52
6K1456110000
Shaft, Propeller
Loading…
↗
54
9020126M0000
Washer, plate(6k0)
Loading…
↗
55
6K1455700000
Gear
Loading…
↗
56
93315430V500
Bearing, cylindrical(6k0)
Loading…
↗
57
6G5455776000
Shim (t:0.50mm)
Loading…
↗
58
6K1455760000
Washer, thrust
Loading…
↗
59
933320004800
Bearing(6k0)
Loading…
↗
60
6K1455786000
Shim (t:0.50mm)
Loading…
↗
61
93341440U500
Bearing, thrust (6k0)
Loading…
↗
62
93315440V600
Bearing, cylindrical(6k0)
Loading…
↗
63
9321097M5500
O-ring (6g5)
Loading…
↗
66
9310130M1700
Oil seal (6e5)
Loading…
↗
67
902820401000
Key, strait(663)
Loading…
↗
68
6G5453830000
Washer, claw
Loading…
↗
69
6G5453840200
Nut
Loading…
↗
70
6E5453780000
Nipple, hose
Loading…
↗
71
9044507ME900
Hose (l250)
Loading…
↗
74
6E5443224100
Insert, Cartridge
Loading…
↗
75
6G5443234000
Outer plate, cartridge
Loading…
↗
