Yamaha Outboard Parts - Lower & Drive 2 - 115AETOL (1996) | Flood Marine

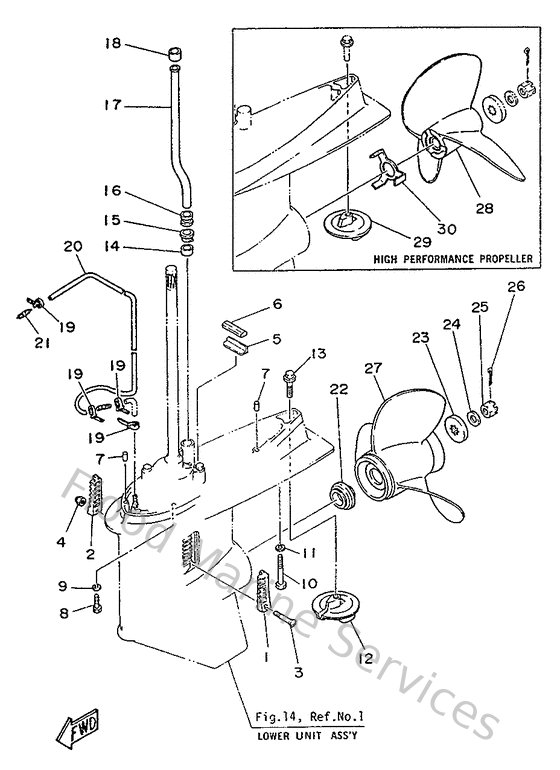

Diagram: Lower & Drive 2

Diagram

Parts List

Reference
Description
Price


1
688452140100
Cover, water inlet
Loading…

↗
2
688452150100
Cover, water inlet
Loading…

↗
3
9014205M0300
Screw, countersunk
Loading…

↗
4
901850500200
Nut nylon (sus)(ex4)
Loading…

↗
5
663453760000
Guide, seal damper
Loading…

↗
6
688453750000
Damper, seal 2
Loading…

↗
7
9360812M0500
Pin, dowel b (6e5)
Loading…

↗
8
970951004500
Bolt(64d)
Loading…

↗
9
929901010000
Ybs67-10 washer, spring
Loading…

↗
10
973751007000
Bolt, hexagon
Loading…

↗
12
6E5453710100
Trim tab
Loading…

↗
13
9010510M0000
Bolt, hexagon (663)
Loading…

↗
14
6E5443650000
Damper, water seal 1
Loading…

↗
15
6E5443120000
Cover, water pump housing
Loading…

↗
16
6E5443660000
Damper, water seal 2
Loading…

↗
17
6E5443610000
Tube, water
Loading…

↗
19
904651009800
Clamp
Loading…

↗
20
9044507MF000
Hose (l1160)
Loading…

↗
21
6E5835580000
End, nipple
Loading…

↗
22
6E5459870000
Spacer 1
Loading…

↗
23
688459970000
Spacer 2
Loading…

↗
24
929901820000
Washer (6e5)
Loading…

↗
25
9017118M0400
Nut, castle (6e5)
Loading…

↗
26
914904003000
Pin, cotter (663)
Loading…

↗
27
688459786098
Propeller (3x13-1/2"x16"-k)
Loading…

↗
28
6E5459781000
Propeller assembly (3x14"x26"-p)
Loading…

↗
29
6E5453711000
Tab-trim
Loading…

↗
30
6E5459941000
Plate, tooth
Loading…

↗
