25NEMO (1997)
Lower Casing & Drive

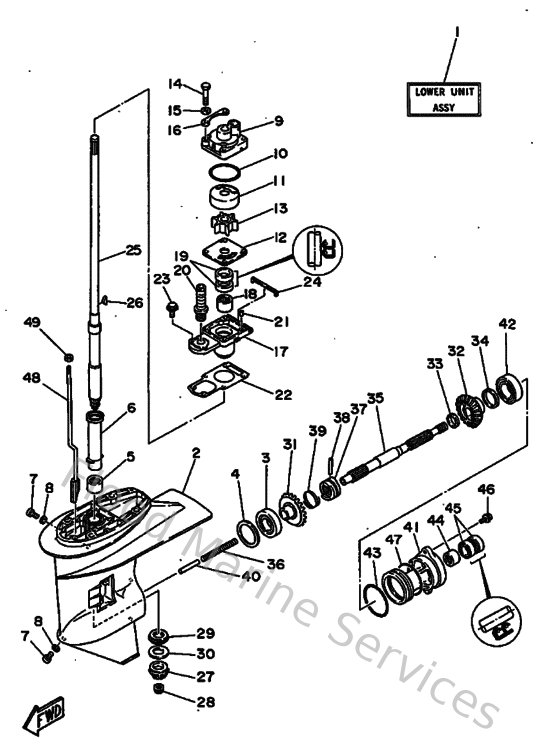

Diagram: Lower Casing & Drive
Parts List
Reference
Description
Price
1
6L245300024D
Lower unit assembly
Loading…
↗
2
6L245311028D
Casing, lower
Loading…
↗
3
933320000500
Brg,cyl-cal roller 0.19g nt
Loading…
↗
4
6L2455674000
Shim (t:1.4mm)
Loading…
↗
5
93315220V900
Bearing, cylindrical(6l2)
Loading…
↗
6
6L2455360000
Sleeve, drive shaft
Loading…
↗
7
9034008M0400
Plug, straight screw
Loading…
↗
8
904300802000
Gasket
Loading…
↗
9
6L2443110100
Housing, water pump
Loading…
↗
10
932104516100
O-ring
Loading…
↗
11
6L2443220000
Insert, cartridge
Loading…
↗
12
6L2443230000
Outer plate, cartridge
Loading…
↗
13
6L2443520000
Impeller
Loading…
↗
14
970950604000
Bolt (682)
Loading…
↗
15
929900660000
Washer, plain (646)
Loading…
↗
16
6L2443280000
Plate
Loading…
↗
17
6L245331005B
Housing, bearing
Loading…
↗
18
933152200400
Brg,cyl-cal roller 21g nt
Loading…
↗
19
931012004800
Oil seal (20x30x6-648)
Loading…
↗
20
6L2441470000
Boot, shift rod
Loading…
↗
21
9360410M0300
Pin, dowel (688)
Loading…
↗
22
6L245315A000
Packing,l0wer casing
Loading…
↗
23
975950652000
Bolt(7u8)
Loading…
↗
24
6L2453750000
Damper, seal
Loading…
↗
25
6L2455101000
Drive shaft assembly
Loading…
↗
26
902800302400
Key, woodruff(662)
Loading…
↗
27
6L2455510100
Pinion
Loading…
↗
28
9017910M1400
Nut(6j8)
Loading…
↗
29
93341320U000
Bearing, thrust (6l2)
Loading…
↗
30
6L2455871000
Shim (t:1.6mm)
Loading…
↗
31
6L2455600000
Gear
Loading…
↗
32
6L2455710000
Gear
Loading…
↗
33
902012041700
Washer, plate(663)
Loading…
↗
34
6L2455773000
Shim (t:1.3mm)
Loading…
↗
35
6L2456110000
Shaft, propeller
Loading…
↗
36
905011006500
Spring compression648456360000
Loading…
↗
37
6L2456310000
Clutch, dog
Loading…
↗
38
902500501000
Pin straight 648456320000
Loading…
↗
39
648456330000
Ring, cross pin
Loading…
↗
40
648456350000
Plunger,shift
Loading…
↗
41
6L245361038D
Cap, lower casing
Loading…
↗
42
933060061200
Bearing(2hr)
Loading…
↗
43
9321060MA300
O-ring(6j8)
Loading…
↗
45
9310120M0700
Oil seal
Loading…
↗
46
970800602000
Bolt(7u8)
Loading…
↗
47
9321060M9900
O-ring(6t3)
Loading…
↗
48
6L2441500000
Shift cam assembly
Loading…
↗
49
953800660000
Nut(661)
Loading…
↗
1
6L2443680000
Rubber, water seal 4
Loading…
↗
2
6L2443610000
Tube, water
Loading…
↗
3
6L2443660000
Damper, water seal 2
Loading…
↗
5
9010510M1200
Bolt (689)
Loading…
↗
6
929901060000
Washer, plate
Loading…
↗
7
664453710100
Tab-trim
Loading…
↗
8
9010508M0200
Bolt hexagon
Loading…
↗
9
6L2443670000
Damper, water seal 3
Loading…
↗
10
6L2452140000
Cover, water inlet
Loading…
↗
11
6L2452150000
Cover, water inlet
Loading…
↗
12
987800553000
Ybs53-530 screw,flat head
Loading…
↗
13
901850590400
Nut nylon (sus)(ex4)
Loading…
↗
14
6L2459870100
Spacer
Loading…
↗
15
689459970000
Spacer
Loading…
↗
16
929901420000
Washer, plain
Loading…
↗
17
901711401300
Nut(664)
Loading…
↗
18
914903003000
Pin, cotter
Loading…
↗
19
664459490200
Propeller (3x9-7/8 x13 -f)
Loading…
↗
20
6J8W459100EL
Propeller (3x10-5/8"x8-1/4"-f)
Loading…
↗
21
6J8459861098
Ring, deflector
Loading…
↗
