3AMH (1997)
Lower Casing & Drive

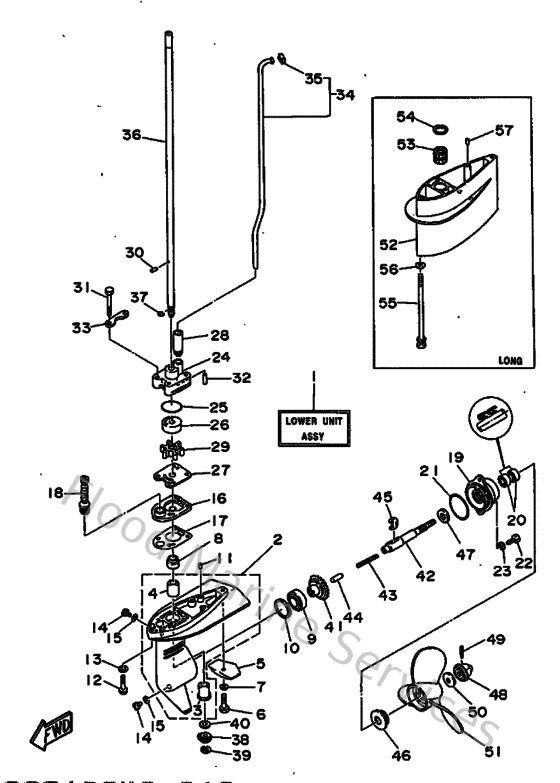

Diagram: Lower Casing & Drive
Parts List
Reference
Description
Price
1
6L545300014D
Lower unit assembly
Loading…
↗
2
6L545311004D
Casing, lower
Loading…
↗
3
6L5453170900
Bushing, d/shaft 2 90381-09m08
Loading…
↗
4
6L5453160900
Bushing, d/shaft 1 90380-09m23
Loading…
↗
5
6L5452510300
Anode
Loading…
↗
6
958950603000
Bolt, flange deep recess
Loading…
↗
7
929900630000
Washer, tooth
Loading…
↗
8
9310309M4100
Oil seal
Loading…
↗
9
93316003U000
Bearing, cylindrical(6l5)
Loading…
↗
10
6L5455670000
Shim
Loading…
↗
11
9360410M0300
Pin, dowel (688)
Loading…
↗
12
970950603000
Bolt(jf7)
Loading…
↗
13
929900660000
Washer, plain (646)
Loading…
↗
14
903400800200
Plug, straight screw
Loading…
↗
15
904300802000
Gasket
Loading…
↗
16
6L54532100CA
Plate
Loading…
↗
17
6L545315A000
Packing,l0wer casing
Loading…
↗
18
6L2441470000
Boot, shift rod
Loading…
↗
19
6L545361004D
Cap, lower casing
Loading…
↗
20
931011380000
Oil seal
Loading…
↗
21
932104821400
O-ring
Loading…
↗
22
970950601600
Bolt, hexagon deep recess
Loading…
↗
24
6L5443110000
Housing, water pump
Loading…
↗
25
9321033M8500
O-ring(6l5)
Loading…
↗
26
6L5443220000
Insert, cartridge
Loading…
↗
27
6L5443230000
Outer plate, cartridge
Loading…
↗
28
6E0443660000
Damper, water seal 2
Loading…
↗
29
6L5443520000
Impeller
Loading…
↗
30
9360407M1300
Pin, dowel(6l5)
Loading…
↗
31
970950604000
Bolt (682)
Loading…
↗
32
936041808000
Pin. dowel. (647)
Loading…
↗
33
6L5443280000
Plate
Loading…
↗
34
6L5443601100
Water Tube assembly
Loading…
↗
35
646443650000
Damper, water seal 1
Loading…
↗
36
6L5455110000
Shaft, drive
Loading…
↗
37
9046707M1200
Clip(6l5)
Loading…
↗
38
6L5455510000
Pinion
Loading…
↗
39
990090660000
Circlip(53l)
Loading…
↗
40
6L5455333000
Shim (t:2.3mm)
Loading…
↗
41
6L5455600000
Gear
Loading…
↗
42
6L5456110000
Shaft, propeller
Loading…
↗
43
905011006400
Spring, compression 6164563600
Loading…
↗
44
6L5456350000
Plunger, shift
Loading…
↗
45
6L5456310000
Clutch, dog
Loading…
↗
46
6L5459870100
Spacer 1
Loading…
↗
47
902011319800
Washer 6474556600
Loading…
↗
48
6L5456160000
Nut, propeller
Loading…
↗
49
914902503000
Pin, cotter(6l5)
Loading…
↗
50
9020108M5400
Washer, plate (6e5)
Loading…
↗
51
6L5459490000
Propeller (3x7-1/4 x5 -bs)
Loading…
↗
53
6L5453180000
Bushing, drive shaft
Loading…
↗
54
9342022M0300
Cir clip (6e0)
Loading…
↗
55
9010106M1800
Bolt(6l5)
Loading…
↗
