Yamaha Outboard Parts - Lower Casing & Drive - 40QMH (1990) | Flood Marine

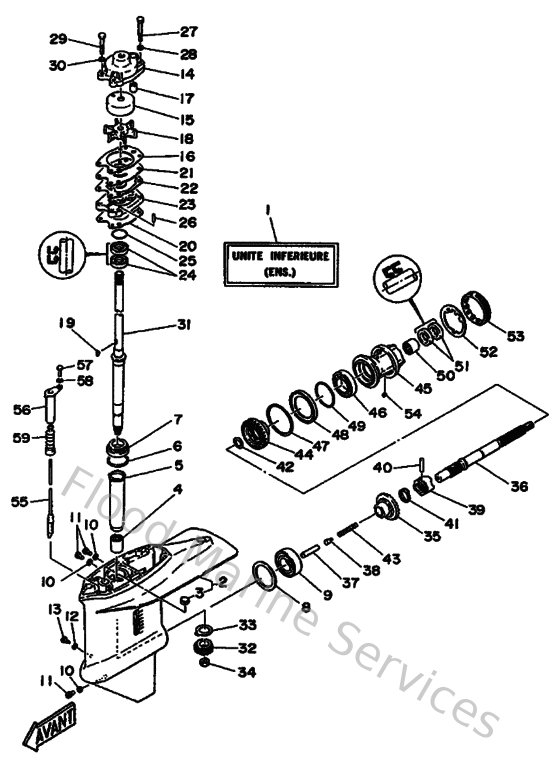

Diagram: Lower Casing & Drive

Diagram

Parts List

Reference
Description
Price


3
903382216800
Plug(3aj)
Loading…

↗
4
933153222400
Brg,cyl-cal roller 42.2g nk
Loading…

↗
5
679455360000
Sleeve, drive shaft
Loading…

↗
6
663455870130
Shim (t:0,30mm)
Loading…

↗
7
933320000100
Brg, tapered roller (409)
Loading…

↗
8
663455676000
Shim (t:0.50mm)
Loading…

↗
14
676443110000
Housing, water pump 1
Loading…

↗
47
663455776000
Shim (t:0.50mm)
Loading…

↗
48
663455760000
Washer, thrust 2
Loading…

↗
49
9321066M9800
O-ring(6h4)
Loading…

↗
50
933172220400
Brg,cyl-cal roller 25.5g nt
Loading…

↗
51
931012206700
Oil seal (22x36x6-663)
Loading…

↗
52
9021448M0300
Washer, claw(697)
Loading…

↗
53
697453840000
Nut
Loading…

↗
54
902820401000
Key, strait(663)
Loading…

↗
55
679441501000
Shift cam assembly
Loading…

↗
57
973950601800
Bolt (fj0)
Loading…

↗
59
650441470000
Boot, shift rod
Loading…

↗
1
663453750000
Rubber, seal 2
Loading…

↗
2
663453760094
Guide, seal damper
Loading…

↗
3
688452140200
Cover, water inlet
Loading…

↗
4
688452150200
Cover, water inlet
Loading…

↗
5
987800553500
Srcrew flat head (e03)
Loading…

↗
6
901850500200
Nut nylon (sus)(ex4)
Loading…

↗
7
679453210100
Plate
Loading…

↗
8
67945315A000
Packing Lower Casing
Loading…

↗
9
985800601600
Screw pan head
Loading…

↗
10
679453710000
Tab trim
Loading…

↗
11
973951003000
Bolt, hexagon
Loading…

↗
12
929901010000
Ybs67-10 washer, spring
Loading…

↗
14
973950803000
Bolt, hexagon (fj1)
Loading…

↗
15
929900810000
Ybs67-8 washer, spring
Loading…

↗
16
902021206000
Washer, plate(663)
Loading…

↗
17
676443611000
Tube, water 1
Loading…

↗
18
904301207200
Gasket
Loading…

↗
19
663443670000
Damper, water seal 3
Loading…

↗
20
663459870200
Spacer
Loading…

↗
21
670459970200
Spacer
Loading…

↗
22
929901620000
958-58204-00 washer,plain
Loading…

↗
23
901711601100
Nut, castle (663)
Loading…

↗
24
914903003000
Pin, cotter
Loading…

↗
25
69W459520000
Propeller (3x11-3/8 x12 -g)
Loading…

↗
