E8DMH (1997)
Lower Casing & Drive

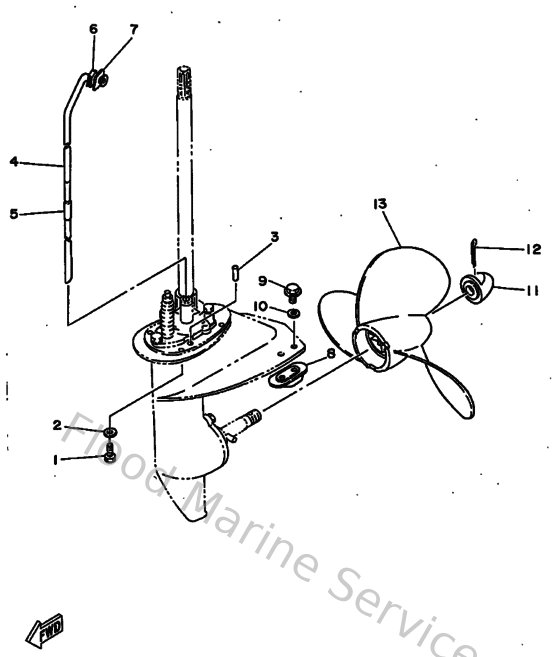

Diagram: Lower Casing & Drive
Parts List
Reference
Description
Price
1
970950602000
Bolt(7u8)
Loading…
↗
2
929900660000
Washer, plain (646)
Loading…
↗
3
936040806200
Pin,dowel (626)
Loading…
↗
4
655443601000
Tube, water
Loading…
↗
5
904451126200
Hose (l30)
Loading…
↗
6
655443650000
Damper, water seal 1
Loading…
↗
7
655443730000
Set plate, water tube
Loading…
↗
8
6E0452511100
Anode
Loading…
↗
9
958950601600
Bolt, flange deep recess
Loading…
↗
10
929900630000
Washer, tooth
Loading…
↗
11
647456160200
Nut, propeller
Loading…
↗
12
914903003000
Pin, cotter
Loading…
↗
13
6554594500EL
Propeller (3x9 x6-1/4 -c)
Loading…
↗
1
67745300114D
Lower Unit assembly
Loading…
↗
2
65545310024D
Lower Casing assembly
Loading…
↗
3
647453160900
Bushing, drive shaft (1)
Loading…
↗
4
903871410800
Collar 6474552600
Loading…
↗
5
933060042300
Bearing (7k2)
Loading…
↗
6
65545214024D
Cover, water inlet 1
Loading…
↗
7
987800501600
Ybs53-516 screw,flat head
Loading…
↗
8
626452150000
Cover, water inlet 2
Loading…
↗
9
903341000800
Plug, Straight
Loading…
↗
10
903400800200
Plug, straight screw
Loading…
↗
11
904300802000
Gasket
Loading…
↗
12
901490600300
Screw, detent 6264416500
Loading…
↗
13
9043006M0300
Gasket (6f5)
Loading…
↗
14
677452510000
Anode
Loading…
↗
15
958950601200
Bolt, flange deep recess
Loading…
↗
17
647453310094
Housing, bearing 1
Loading…
↗
19
931011805000
Oil seal (18x28x6-647)
Loading…
↗
20
677453150000
Packing, lower casing
Loading…
↗
23
65545361024D
Cap, lower casing
Loading…
↗
24
933060051900
Bearing(1ff)
Loading…
↗
25
931011507400
Oil seal (655)
Loading…
↗
26
932105867700
O-ring(47x)
Loading…
↗
29
655443110300
Housing, water pump
Loading…
↗
30
655443150000
Gasket, water pump
Loading…
↗
31
650443220100
Insert, cartridge
Loading…
↗
32
655443234100
Outer plate, cartridge
Loading…
↗
33
647443660000
Damper, water seal 2
Loading…
↗
34
662443520100
Impeller
Loading…
↗
35
902800302400
Key, woodruff(662)
Loading…
↗
36
936041808000
Pin. dowel. (647)
Loading…
↗
37
970950604000
Bolt (682)
Loading…
↗
39
655455011000
Drive shaft comp.
Loading…
↗
40
647455510000
Pinion
Loading…
↗
41
647455336000
Shim (t:1.4mm)
Loading…
↗
42
990800760000
Circlip(6l2)
Loading…
↗
43
624455670003
Shim Gear Adjust (1)(0.3Mm)
Loading…
↗
44
647455600000
Gear 1 assembly
Loading…
↗
45
902011319800
Washer 6474556600
Loading…
↗
46
647455670000
Shim, gear adjust
Loading…
↗
47
647455700100
Gear 2 assembly
Loading…
↗
48
902011522900
Washer 6474557600
Loading…
↗
49
626455774000
Shim (t:0.50mm)
Loading…
↗
50
655456310000
Dog, clutch
Loading…
↗
51
936052909800
Pin dowelb
Loading…
↗
52
934403004000
Circlip (677)
Loading…
↗
53
905011006400
Spring, compression 6164563600
Loading…
↗
54
654456350000
Plunger, shift
Loading…
↗
55
677456110100
Shaft, propeller
Loading…
↗
56
902500503600
Pin, share 6164561500
Loading…
↗
57
6G1441470000
Boot, shift rod
Loading…
↗
58
655441501000
Shift cam assembly
Loading…
↗
