FT9.9AMH (1996)
Lower Casing & Drive

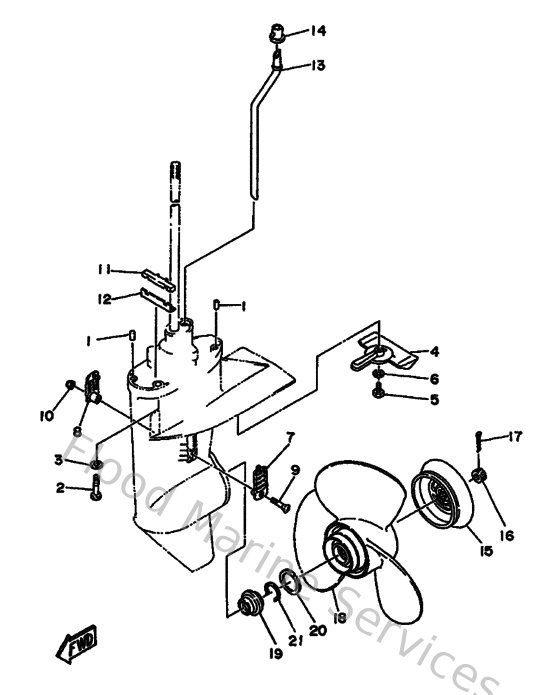

Diagram: Lower Casing & Drive
Parts List
Reference
Description
Price
1
936061201900
Pin, dowel (614)
Loading…
↗
2
970900803500
Bolt(70w)
Loading…
↗
3
929900860000
Washer, plain (663)
Loading…
↗
4
6G8452510000
Anode
Loading…
↗
5
958800602000
Bolt, flange(jk3)
Loading…
↗
6
929900630000
Washer, tooth
Loading…
↗
7
6G8452140000
Cover, water inlet 1
Loading…
↗
8
6G8452150000
Cover, water inlet 2
Loading…
↗
9
987800552500
Ybs53-525 screw,flat head
Loading…
↗
10
901850590400
Nut nylon (sus)(ex4)
Loading…
↗
11
682453750100
Damper, seal
Loading…
↗
12
682453760100
Guide, seal damper
Loading…
↗
13
6G8443611000
Tube Water
Loading…
↗
14
626443650100
Damper, water seal 1
Loading…
↗
15
6G8459860000
Ring, deflector
Loading…
↗
16
9017110M0700
Nut, castle(6g8)
Loading…
↗
17
914903003000
Pin, cotter
Loading…
↗
18
6G8459470000
Propeller (3x11-3/4"x9-1/4"-r)
Loading…
↗
19
6G8459870200
Spacer
Loading…
↗
20
9020131MA300
Washer, plate (6g8)
Loading…
↗
21
9345010M0400
Circlip(6g8)
Loading…
↗
1
6G845300164D
Lower Unit assembly
Loading…
↗
2
6G845311044D
Casing, Lower
Loading…
↗
3
936040806200
Pin,dowel (626)
Loading…
↗
4
9034008M0400
Plug, straight screw
Loading…
↗
5
904300802000
Gasket
Loading…
↗
6
933320000500
Brg,cyl-cal roller 0.19g nt
Loading…
↗
7
93315213V400
Bearing Needle (6G8)
Loading…
↗
8
682443000100
Housing water pump assembly
Loading…
↗
9
682443120000
Cover, water pump housing
Loading…
↗
10
977804011200
Screw, pan head tapping
Loading…
↗
11
682443650000
Damper, water seal 1
Loading…
↗
12
682443220000
Insert, cartridge
Loading…
↗
13
682443520100
Impeller
Loading…
↗
14
902800302400
Key, woodruff(662)
Loading…
↗
15
68244315A000
Gasket,water pump 1
Loading…
↗
16
682443230000
Outer plate, cartridge
Loading…
↗
17
6G845331005B
Housing, bearing
Loading…
↗
18
931012004800
Oil seal (20x30x6-648)
Loading…
↗
19
6G845315A000
Packing, lower casing
Loading…
↗
21
970950604500
Bolt, hexagon
Loading…
↗
22
929900660000
Washer, plain (646)
Loading…
↗
23
682443280000
Plate
Loading…
↗
24
6G8455360000
Sleeve Drive Shaft
Loading…
↗
25
6G8455011000
Drive Shaft Comp
Loading…
↗
26
6G8455510000
Pinion (13T)
Loading…
↗
27
6G8455874000
Washer Thrust (0.5Mm)
Loading…
↗
28
93341313U300
Bearing
Loading…
↗
29
9017908M0600
Nut (6e7)
Loading…
↗
30
6G8455600000
Gear
Loading…
↗
31
626455774000
Shim (t:0.50mm)
Loading…
↗
32
6G8455710000
Gear 2
Loading…
↗
33
902011768200
Washer, plate (2k7)
Loading…
↗
34
626455770005
Shim (t:0.50mm)
Loading…
↗
35
6G8456110000
Shaft, propeller
Loading…
↗
36
650456350000
Plunger, shift
Loading…
↗
37
682456310000
Clutch, dog
Loading…
↗
38
902500501000
Pin straight 648456320000
Loading…
↗
39
648456330000
Ring, cross pin
Loading…
↗
40
9050114M0900
Spring, compression
Loading…
↗
41
6G845361014D
Cap, lower casing
Loading…
↗
42
932107431600
O-ring (1j7)
Loading…
↗
43
933060051900
Bearing(1ff)
Loading…
↗
44
93315317U200
Brg,cyl-cal roller 14g (683)
Loading…
↗
45
931011705400
Oil seal (17x30x6-650)
Loading…
↗
46
9321074M6800
O-ring (6g8)
Loading…
↗
47
970950602000
Bolt(7u8)
Loading…
↗
49
6G8441502000
Shift Cam assembly
Loading…
↗
50
682441470000
Boot, shift rod
Loading…
↗
51
682441760000
Bracket
Loading…
↗
52
977805011000
Screw, tapping(6u1)
Loading…
↗
