150AETOL (2000)
Lower Casing & Drive 1

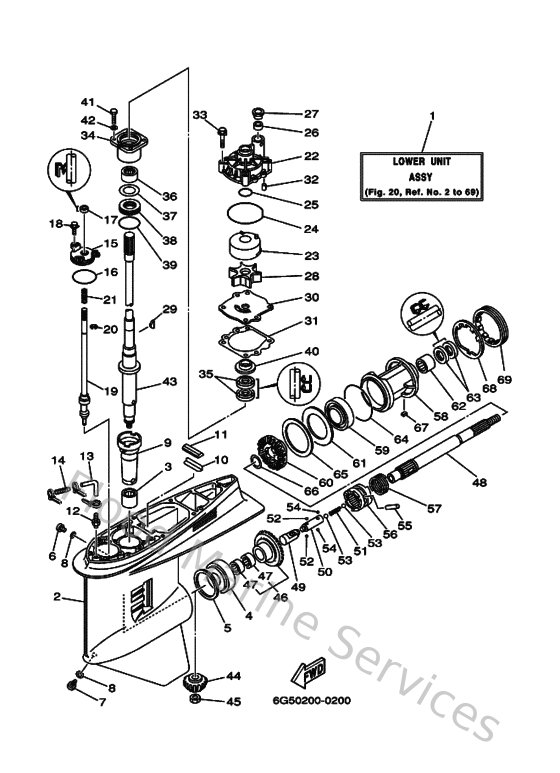

Diagram: Lower Casing & Drive 1
Parts List
Reference
Description
Price
1
6G545300158D
Lower unit assembly
Loading…
↗
2
6J945301048D
Casing, lower
Loading…
↗
3
93311928U500
Bearing, needle (6g5)
Loading…
↗
4
93332000V300
Bearing, taper roller (6g5)
Loading…
↗
5
6G5455676000
Shim (t:0.50mm)
Loading…
↗
6
9034008M0400
Plug, straight screw
Loading…
↗
7
688453411000
Plug, drain
Loading…
↗
8
904300802000
Gasket
Loading…
↗
9
6G5455360100
Sleeve, drive shaft
Loading…
↗
10
64D453760000
Guide, seal damper
Loading…
↗
11
688453750000
Damper, seal 2
Loading…
↗
12
6E5453780000
Nipple, hose
Loading…
↗
13
9044507ME900
Hose (l250)
Loading…
↗
14
6E5835581000
End, nipple
Loading…
↗
15
6E5453210000
Plate
Loading…
↗
16
932105814400
O-ring(47x)
Loading…
↗
17
931060901400
Oil seal
Loading…
↗
18
9011906M1000
Bolt, with washer
Loading…
↗
19
6G5441500200
Shift cam assembly
Loading…
↗
20
990010860000
Circlip(2r6)
Loading…
↗
21
9050111M1000
Spring, compression (663)
Loading…
↗
22
61A443110100
Housing, water pump
Loading…
↗
23
61A443220200
Insert, cartridge
Loading…
↗
24
9321086M3800
O-ring (6e5)
Loading…
↗
25
932103716000
O-ring (6g8)
Loading…
↗
26
6E5443650000
Damper, water seal 1
Loading…
↗
27
6E5443120000
Cover, water pump housing
Loading…
↗
28
6E5443520100
Impeller
Loading…
↗
29
9028004M0500
Key, woodruff (6e5)
Loading…
↗
30
6G5443230000
Outer plate, cartridge
Loading…
↗
31
6E544315A000
Gasket,water pump
Loading…
↗
32
936061201900
Pin, dowel (614)
Loading…
↗
33
9011908M1400
Bolt, with washer
Loading…
↗
34
6E5453310094
Housing, bearing
Loading…
↗
35
9310128M1600
Oil seal (6e5)
Loading…
↗
36
93315430V500
Bearing, cylindrical(6k0)
Loading…
↗
37
6E5455876000
Shim (t:0.50mm)
Loading…
↗
38
93341930V200
Bearing, thrust(64d)
Loading…
↗
39
932105453400
O-ring (70e)
Loading…
↗
40
6E5453440000
Cover, oil seal
Loading…
↗
41
970950802500
Bolt (62g)
Loading…
↗
42
929950860000
Washer, plain (663)
Loading…
↗
43
6G5455012200
Drive shaft comp.
Loading…
↗
44
6G5455510100
Pinion
Loading…
↗
45
9017016M0100
Nut, hexagon (688)
Loading…
↗
46
6G5455600100
Gear
Loading…
↗
47
93315425V300
Bearing, needle (6g5)
Loading…
↗
48
6J9456110100
Shaft, propeller
Loading…
↗
49
6E5456410200
Shifter
Loading…
↗
50
6E5456340100
Slide, shift
Loading…
↗
51
9050116M3700
Spring (6g5)
Loading…
↗
52
935073200900
Ball (12r)
Loading…
↗
53
935113202700
Ball (498)
Loading…
↗
54
935031600300
Ball
Loading…
↗
55
9025008M0700
Pin, straight (6g5)
Loading…
↗
56
6G5456310000
Clutch, dog
Loading…
↗
57
6E5456330100
Ring, cross pin
Loading…
↗
58
6J94533200CA
Housing, bearing
Loading…
↗
59
93306209U000
Bearing (6g5)
Loading…
↗
60
6G5455710200
Gear
Loading…
↗
61
6G5455760000
Washer Thrust 2
Loading…
↗
62
933154306100
Bearing
Loading…
↗
63
9310130M1700
Oil seal (6e5)
Loading…
↗
64
9321097M5500
O-ring (6g5)
Loading…
↗
65
6G5455770230
Shim (t:0.30mm)
Loading…
↗
66
9020130M9200
Washer (6g5)
Loading…
↗
67
9028204M0000
Key, straight(6g5)
Loading…
↗
68
6G5453830100
Washer, claw
Loading…
↗
69
6G5453840000
Nut
Loading…
↗
