20CMH (1996)
Lower Casing & Drive 1

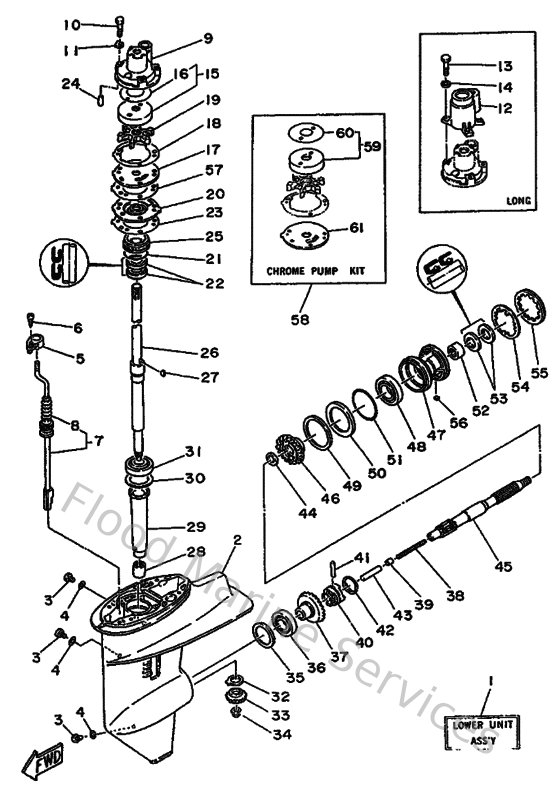

Diagram: Lower Casing & Drive 1
Parts List
Reference
Description
Price
3
903400801400
Plug, straight screw
Loading…
↗
4
904300802000
Gasket
Loading…
↗
5
689441760100
Bracket
Loading…
↗
6
977805011000
Screw, tapping(6u1)
Loading…
↗
7
664441501100
Shift Cam assembly
Loading…
↗
8
664441470000
Boot, shift rod
Loading…
↗
9
689443110300
Housing, water pump
Loading…
↗
10
9010106M5600
Bolt(jf7)
Loading…
↗
11
9020906M0400
Washer
Loading…
↗
12
6894431200CA
Cover Water Pump Housing
Loading…
↗
13
973950603500
Bolt(j52)
Loading…
↗
14
929900660000
Washer, plain (646)
Loading…
↗
15
689W44320200
Insert cartridge comp.
Loading…
↗
16
689443670100
Rubber, water seal 3
Loading…
↗
17
689443230300
Outer plate, cartridge
Loading…
↗
18
689443240100
Gasket, cartridge
Loading…
↗
19
689443520200
Impeller
Loading…
↗
20
68944325029M
Protector Oil Seal
Loading…
↗
21
9321040M1000
O-ring (682)
Loading…
↗
22
931012206700
Oil seal (22x36x6-663)
Loading…
↗
23
689443150100
Gasket, water pump
Loading…
↗
24
9360410M0300
Pin, dowel (688)
Loading…
↗
25
689453440094
Cover, oil seal
Loading…
↗
26
689455010000
Drive shaft comp
Loading…
↗
27
664443380000
Key, woodruff
Loading…
↗
28
93315017U400
Brg,cyl-cal roller (689)
Loading…
↗
29
689455360000
Sleeve Drive Shaft
Loading…
↗
30
664455876000
Shim (t:0.50mm)
Loading…
↗
31
93332000U400
Brg,tapered roller 42mm (689)
Loading…
↗
32
664455520900
Bearing, Plain
Loading…
↗
33
689455510000
Pinion
Loading…
↗
34
9017909M0200
Nut (689)
Loading…
↗
35
664455676000
Shim (t:0.50mm)
Loading…
↗
36
933320000500
Brg,cyl-cal roller 0.19g nt
Loading…
↗
37
689455601000
Gear
Loading…
↗
38
905011006500
Spring compression648456360000
Loading…
↗
39
648456340000
Slide, Shaft
Loading…
↗
40
664456310000
Clutch, dog
Loading…
↗
41
902500501000
Pin straight 648456320000
Loading…
↗
42
648456331100
Ring, cross pin
Loading…
↗
43
648456350000
Plunger,shift
Loading…
↗
44
902012041700
Washer, plate(663)
Loading…
↗
45
689456110000
Shaft, Propeller
Loading…
↗
46
689455710000
Gear 2
Loading…
↗
47
689453310100
Housing, bearing
Loading…
↗
48
933060060600
Bearing(2hr)
Loading…
↗
49
664455776000
Shim (t:0.50mm)
Loading…
↗
50
664455760000
Washer, thrust 2
Loading…
↗
51
9321060M1700
O-ring(6j8)
Loading…
↗
52
933152200400
Brg,cyl-cal roller 21g nt
Loading…
↗
53
9310120M0700
Oil seal
Loading…
↗
54
9021445M0200
Washer, claw(6a9)
Loading…
↗
55
664453840000
Nut
Loading…
↗
56
902820401000
Key, strait(663)
Loading…
↗
57
68944316A000
Gasket, water pump
Loading…
↗
58
689W00783A00
Chrome pump kit
Loading…
↗
59
689W44326100
Insert cartridge comp.
Loading…
↗
61
689443234300
Outer plate, cartridge
Loading…
↗
