40HM (1985)
Lower Casing & Drive 1

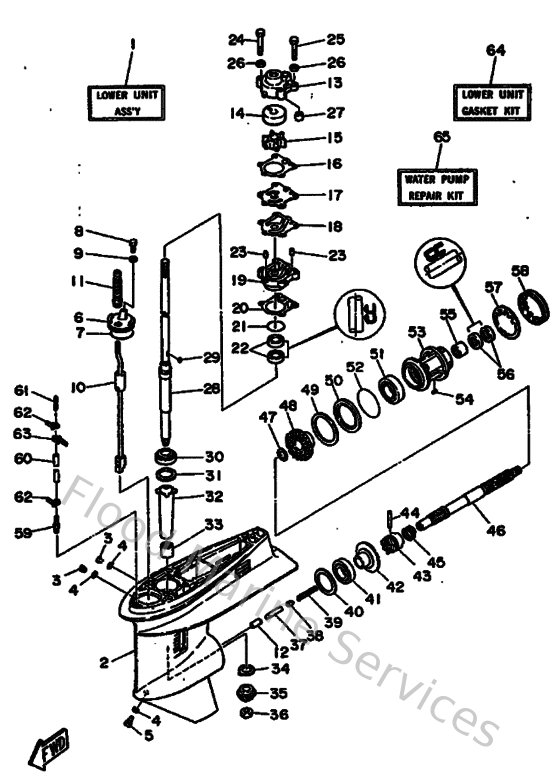

Diagram: Lower Casing & Drive 1
Parts List
Reference
Description
Price
3
903400801400
Plug, straight screw
Loading…
↗
4
904300802000
Gasket
Loading…
↗
5
9034008M0200
Plug, drain
Loading…
↗
6
6H4453210100
Plate
Loading…
↗
7
932104904600
O-ring (620)
Loading…
↗
8
973950601600
Bolt, hexagon deep recess
Loading…
↗
9
929900660000
Washer, plain (646)
Loading…
↗
10
6H4441501200
Shift Cam Assembly
Loading…
↗
11
655441470000
Boot, shift rod
Loading…
↗
12
6H4441600000
Detent Comp
Loading…
↗
13
663443110200
Housing, water pump
Loading…
↗
14
663443220000
Insert, cartridge
Loading…
↗
15
6H4443520000
Impeller
Loading…
↗
16
663443150000
Gasket,water pump 1
Loading…
↗
17
663443230000
Outer plate, cartridge
Loading…
↗
18
66344324A000
Gasket,cartridge outer plate
Loading…
↗
19
663443410094
Housing, water pump
Loading…
↗
20
663443160000
Gasket,water pump 2
Loading…
↗
21
932104104200
O-ring (132)
Loading…
↗
22
931012307000
Oil seal (663)
Loading…
↗
23
936040806200
Pin,dowel (626)
Loading…
↗
24
973950805500
Bolt, hexagon
Loading…
↗
25
973950804500
Bolt, hexagon
Loading…
↗
26
929900860000
Washer, plain (663)
Loading…
↗
27
663443660000
Damper, water seal 2
Loading…
↗
29
902800302400
Key, woodruff(662)
Loading…
↗
30
933320002300
Brg, tapered roller (409)
Loading…
↗
31
663455876000
Shim (t:0.50mm)
Loading…
↗
32
6H4455360000
Sleeve, drive shaft
Loading…
↗
33
933153222400
Brg,cyl-cal roller 42.2g nk
Loading…
↗
34
663455520000
Bearing, plain
Loading…
↗
35
6H4455510000
Pinion
Loading…
↗
36
901701213800
Nut hexagon(663)
Loading…
↗
37
676456350000
Plunger, shift
Loading…
↗
38
663456340000
Slide, shift
Loading…
↗
39
9050116M0100
Spring compression
Loading…
↗
40
6H4455670150
Shim (T:0.50Mm)
Loading…
↗
42
6H4455600000
Gear
Loading…
↗
43
6H4456310000
Clutch, dog
Loading…
↗
44
902500602300
Pin, strait (663)
Loading…
↗
45
663456330000
Ring, cross pin
Loading…
↗
46
679456110100
Shaft, propeller
Loading…
↗
47
902012242900
Washer, plate(663)
Loading…
↗
48
6H4455710000
Gear
Loading…
↗
49
663455776000
Shim (t:0.50mm)
Loading…
↗
50
663455760000
Washer, thrust 2
Loading…
↗
51
933060070200
Brg,r-b 6007 62mm 150g ky
Loading…
↗
52
9321066M9800
O-ring(6h4)
Loading…
↗
53
679453310094
Housing, bearing
Loading…
↗
54
902820401000
Key, strait(663)
Loading…
↗
55
933172220400
Brg,cyl-cal roller 25.5g nt
Loading…
↗
56
931012206700
Oil seal (22x36x6-663)
Loading…
↗
57
902144800800
Washer, claw(697)
Loading…
↗
58
697453840000
Nut
Loading…
↗
59
6E5453780000
Nipple, hose
Loading…
↗
60
9044507M1900
Hose (l200)
Loading…
↗
61
6E5835580000
End, nipple
Loading…
↗
62
9046511M1000
Clamp
Loading…
↗
63
80L263970000
Band
Loading…
↗
64
6H4W00012000
Gasket kit, lower unit
Loading…
↗
65
6H4W00780000
Water pump rerair kit
Loading…
↗
