40QMH (1993)
Lower Casing & Drive 1

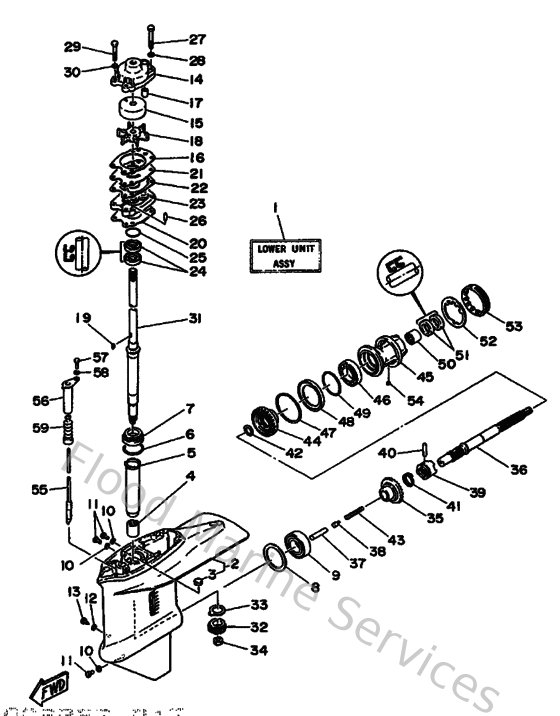

Diagram: Lower Casing & Drive 1
Parts List
Reference
Description
Price
3
903382216800
Plug(3aj)
Loading…
↗
4
933153222400
Brg,cyl-cal roller 42.2g nk
Loading…
↗
5
679455360000
Sleeve, drive shaft
Loading…
↗
6
663455870130
Shim (t:0,30mm)
Loading…
↗
7
933320000100
Brg, tapered roller (409)
Loading…
↗
8
663455676000
Shim (t:0.50mm)
Loading…
↗
9
933320000300
Brg,cyl-cal roller 318g ky
Loading…
↗
10
904300802000
Gasket
Loading…
↗
11
9034008M0400
Plug, straight screw
Loading…
↗
12
9043006M0300
Gasket (6f5)
Loading…
↗
13
9014906M0000
Screw (676)
Loading…
↗
14
676443110000
Housing, water pump 1
Loading…
↗
15
676443220000
Insert, cartridge
Loading…
↗
17
663443660000
Damper, water seal 2
Loading…
↗
18
6F5443520000
Impeller
Loading…
↗
19
9028004M0000
Key, woodruff (676)
Loading…
↗
21
676443230000
Outer plate, cartridge
Loading…
↗
23
679443410000
Housing, water pump
Loading…
↗
24
931012206700
Oil seal (22x36x6-663)
Loading…
↗
25
932104104200
O-ring (132)
Loading…
↗
26
936040806200
Pin,dowel (626)
Loading…
↗
27
970950805500
Bolt, hexagon
Loading…
↗
28
929900860000
Washer, plain (663)
Loading…
↗
29
973950804500
Bolt, hexagon
Loading…
↗
31
679455010000
Drive shaft comp
Loading…
↗
32
6H9455510000
Pinion
Loading…
↗
33
663455520000
Bearing, plain
Loading…
↗
34
901701213800
Nut hexagon(663)
Loading…
↗
35
679455600000
Gear 1 assembly
Loading…
↗
36
679456110100
Shaft, propeller
Loading…
↗
37
676456350000
Plunger, shift
Loading…
↗
39
663456310100
Clutch, dog
Loading…
↗
40
902500602300
Pin, strait (663)
Loading…
↗
41
663456330000
Ring, cross pin
Loading…
↗
42
902012242900
Washer, plate(663)
Loading…
↗
43
9050116M0100
Spring compression
Loading…
↗
44
679455710000
Gear 2
Loading…
↗
45
679453310000
Housing, bearing
Loading…
↗
46
933060070200
Brg,r-b 6007 62mm 150g ky
Loading…
↗
47
663455770130
Shim (t:0.30mm)
Loading…
↗
48
663455760000
Washer, thrust 2
Loading…
↗
49
9321066M9800
O-ring(6h4)
Loading…
↗
50
933172220400
Brg,cyl-cal roller 25.5g nt
Loading…
↗
52
9021448M0300
Washer, claw(697)
Loading…
↗
53
697453840000
Nut
Loading…
↗
54
902820401000
Key, strait(663)
Loading…
↗
55
679441501000
Shift cam assembly
Loading…
↗
56
679441520000
Bushing, shift cam
Loading…
↗
57
973950601800
Bolt (fj0)
Loading…
↗
58
929900660000
Washer, plain (646)
Loading…
↗
59
650441470000
Boot, shift rod
Loading…
↗
