6CEM (1985)
Lower Casing & Drive 1

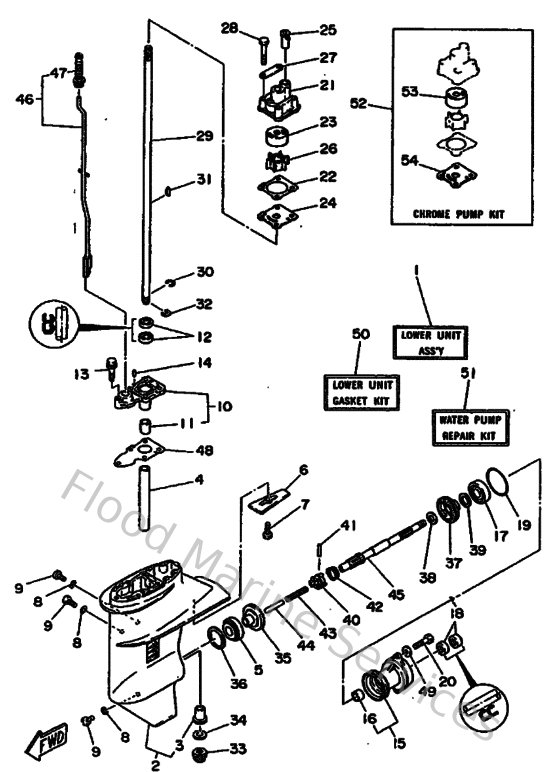

Diagram: Lower Casing & Drive 1
Parts List
Reference
Description
Price
1
6G14530000EJ
Lower unit assembly
Loading…
↗
3
6G1453170900
Bushing, drive shaft 2
Loading…
↗
4
9038714M4900
Collar (6g1)
Loading…
↗
5
93332000U400
Brg,tapered roller 42mm (689)
Loading…
↗
6
6G1452510000
Anode,set
Loading…
↗
7
970800601200
Bolt(gh1)
Loading…
↗
8
904300802000
Gasket
Loading…
↗
9
903400801400
Plug, straight screw
Loading…
↗
10
6G14533101CA
Housing, bearing 1
Loading…
↗
11
6G1453160900
Bushing, drive shaft 1
Loading…
↗
12
9310111M2300
Oil seal (6g1)
Loading…
↗
13
973750603000
Bolt(jf7)
Loading…
↗
14
936040806200
Pin,dowel (626)
Loading…
↗
15
999990222700
Cap, lower casing set(6g1)
Loading…
↗
16
6G1453620900
Bushing, lower casing cap
Loading…
↗
17
93306004U000
Bearing (7k2)
Loading…
↗
18
931011507400
Oil seal (655)
Loading…
↗
19
932104904600
O-ring (620)
Loading…
↗
20
970950601600
Bolt, hexagon deep recess
Loading…
↗
21
6G1443110000
Housing, water pump
Loading…
↗
22
6G1443150000
Gasket,water pump
Loading…
↗
23
6G1443220000
Insert, cartridge
Loading…
↗
24
6G1443230000
Outer plate, cartridge
Loading…
↗
25
647443660000
Damper, water seal 2
Loading…
↗
26
6G1443520000
Impeller
Loading…
↗
27
6G1443280000
Plate
Loading…
↗
28
973950604500
Bolt, hexagon
Loading…
↗
29
6G1455112000
Shaft, Drive (Ul.lng)
Loading…
↗
30
9046709M0500
Clip (6g1)
Loading…
↗
31
902800302400
Key, woodruff(662)
Loading…
↗
32
934300600500
Circlip(53l)
Loading…
↗
33
6G1455510000
Pinion
Loading…
↗
34
6G1455333000
Shim (t:2.2mm)
Loading…
↗
35
6GH455600900
Gear 1 (27t)
Loading…
↗
36
664455876000
Shim (t:0.50mm)
Loading…
↗
37
6G1455710000
Gear 2
Loading…
↗
38
9020115M8900
Washer, plate (6g1)
Loading…
↗
39
647455670000
Shim, gear adjust
Loading…
↗
40
6G1456310000
Clutch, dog
Loading…
↗
41
6G1456320000
Cross, pin
Loading…
↗
42
654456330000
Ring, cross pin
Loading…
↗
43
905011006400
Spring, compression 6164563600
Loading…
↗
44
6G1456350000
Plunger, shift
Loading…
↗
45
6G1456110100
Shaft, propellar
Loading…
↗
46
6N0G41502000
Shift Cam assembly
Loading…
↗
47
6G1441470000
Boot, shift rod
Loading…
↗
48
6G1453150000
Packing, lower casing
Loading…
↗
49
929900660000
Washer, plain (646)
Loading…
↗
50
6G1W0001C100
Gasket kit, lower unit
Loading…
↗
51
6G1W00780000
Water pump repair kit
Loading…
↗
52
6G1W00780A00
Chrome pump kit
Loading…
↗
53
6G1443224000
Insert, cartridge
Loading…
↗
54
6G1443234000
Outer plate, cartridge
Loading…
↗
