Yamaha Outboard Parts - Lower Casing & Drive 1 - 9.9DMH (1987) | Flood Marine

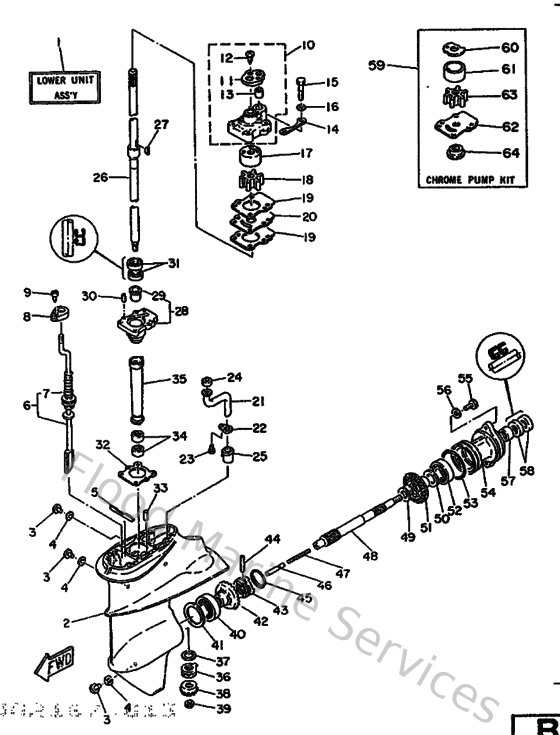

Diagram: Lower Casing & Drive 1

Diagram

Parts List

Reference

Description

Price

3

903400801400

Plug, straight screw

Loading…

4

904300802000

Loading…

5

682453760100

Guide, seal damper

Loading…

6

682441501000

Shift Cam Assembly

Loading…

7

682441470000

Boot, shift rod

Loading…

8

682441760000

Loading…

9

977805051000

Screw, tapping(6u1)

Loading…

10

682443000100

Housing water pump assembly

Loading…

11

682443120000

Cover, water pump housing

Loading…

12

977804011200

Screw, pan head tapping

Loading…

13

682443650000

Damper, water seal 1

Loading…

14

682443280000

Loading…

15

973950604000

Loading…

16

929900620000

Ybs66-6 washer, plain

Loading…

17

682443220000

Insert, cartridge

Loading…

18

682443520100

Loading…

19

682443150000

Gasket,water pump 1

Loading…

20

682443230000

Outer plate, cartridge

Loading…

21

683443620100

Loading…

22

683443730000

Set plate, water tube

Loading…

23

973950601000

Loading…

24

683443650100

Damper, water seal 1

Loading…

25

6E7443660000

Damper, water seal 2

Loading…

26

6E7455011100

Drive shaft comp.

Loading…

27

902800302400

Key, woodruff(662)

Loading…

28

6E745331009M

Housing, bearing

Loading…

29

626453160900

Bushing, drive shaft 1

Loading…

30

936061201900

Pin, dowel (614)

Loading…

31

931012004800

Oil seal (20x30x6-648)

Loading…

32

683453150000

Packing,lower casing

Loading…

33

936040806200

Pin,dowel (626)

Loading…

34

93315314V000

Bearing Needle (6E7)

Loading…

35

6E7455360000

Sleeve, drive shaft

Loading…

36

93341214U100

Bearing, thrust (6e7)

Loading…

37

6E7455870150

Loading…

38

6E7455510000

Loading…

39

9017908M0600

Loading…

40

933320000500

Brg,cyl-cal roller 0.19g nt

Loading…

41

664455676000

Shim (t:0.50mm)

Loading…

42

6E7455600000

Loading…

43

682456310000

Loading…

44

902500501000

Pin straight 648456320000

Loading…

45

648456330000

Ring, cross pin

Loading…

46

650456350000

Loading…

47

9050114M0600

Spring, compression

Loading…

48

683456110000

Shaft propeller

Loading…

49

902011768200

Washer, plate (2k7)

Loading…

50

626455770001

Shim (t:0.10mm)

Loading…

51

6E7455710000

Loading…

52

933060050100

Loading…

53

9321057M0900

Loading…

54

999990223000

Cap, lower casing set (683)

Loading…

55

973950602000

Loading…

56

929900660000

Washer, plain (646)

Loading…

57

93315317U200

Brg,cyl-cal roller 14g (683)

Loading…

58

931011705400

Oil seal (17x30x6-650)

Loading…

60

682443214000

Inner Plate Cartridge(Chrome)

Loading…

61

682443224000

Insert, cartridge(chrome)

Loading…

62

682443234000

Outer plate, cartridge(chrome)

Loading…

64

682453440000

Cover, oil seal

Loading…
